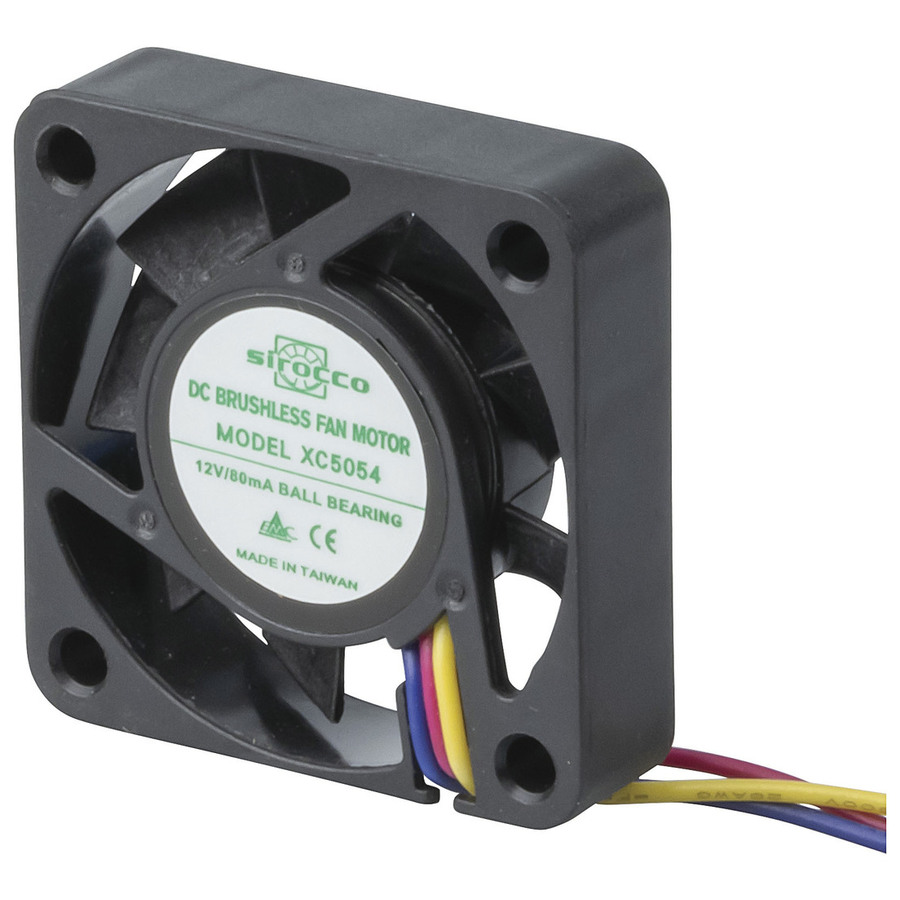

40mm 3 Wire 12V DC Ball Bearing Fan
40mm 3 Wire 12V DC Ball Bearing Fan

CAT. No. XC5054

40mm 3 Wire 12V DC Ball Bearing Fan
product image thumb

40mm 3 Wire 12V DC Ball Bearing Fan

$24.95
The third wire provides a pulse output - 1 pulse per revolution. - Air volume: 0.16 (m3/min) 5.40(CFM) - Noise: 30 dBA - Input: 0.75...
Available

Description

The third wire provides a pulse output. 1 pulse per revolution.


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan impeller material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic metres
    		 0.16m³/min
    fan bearing type
    		 Ball
    fan housing material
    		 Fibreglass Reinforced Plastic
    fan air volume cubic feet
    		 5.4ft³/min
    fan number of wires
    		 3pc
    Tachometer Output
    fan RPM
    		 6000RPM
    fan noise
    		 30dB
    fan connector type
    		 Flyleads

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    DC Current Draw
    		 80mA

    Product Dimensions

    Length
    		 40mm
    Height
    		 40mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 6.8cm
    Packaged Width
    		 6.6cm
    Packaged Weight
    		 0.025kg
    Packaged Volume
    		 0.13464l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
