CAT. No. XC5907

13 in 1 Multifunction USB Type-C Hub with HDMI+DISP+VGA, Network, USB Ports and USB Type-C with Powe
product image thumb
product image thumb
product image thumb
product image thumb

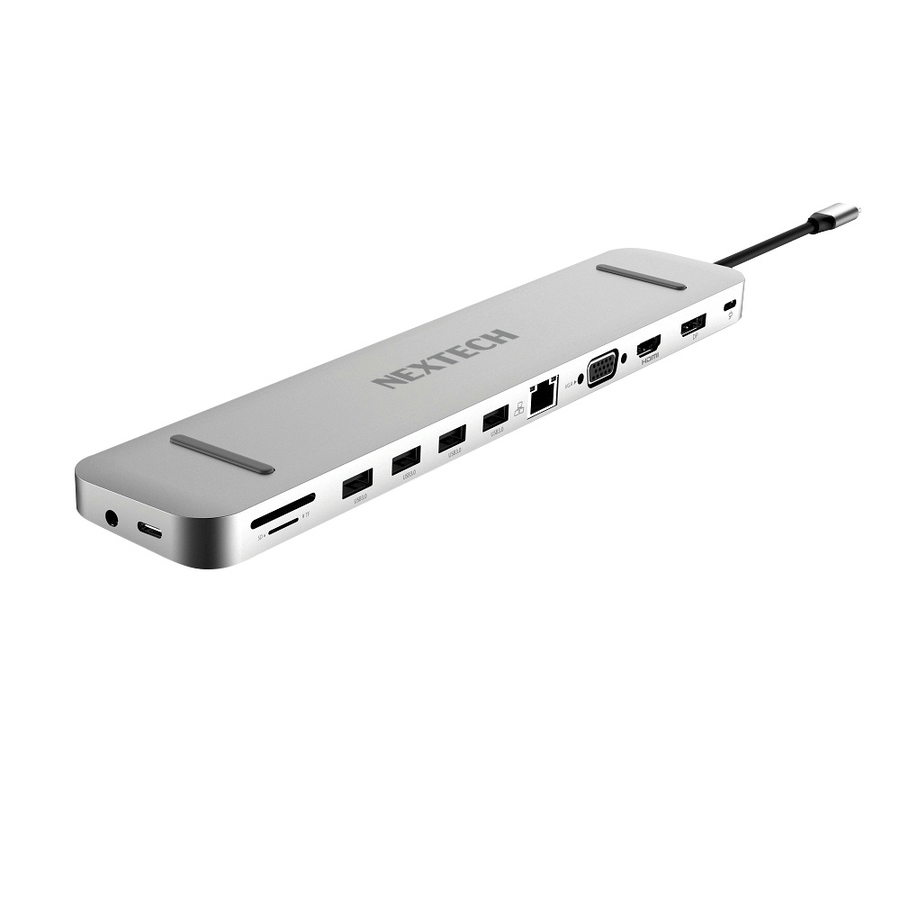

13 in 1 Multifunction USB Type-C Hub with HDMI+DISP+VGA, Network, USB Ports and USB Type-C with Powe

$229
USB Type-C multiple computer peripherals interface hub. 4K HDMI, VGA, USB 3.0, SD/microSD reader, LAN port.
Available

Description

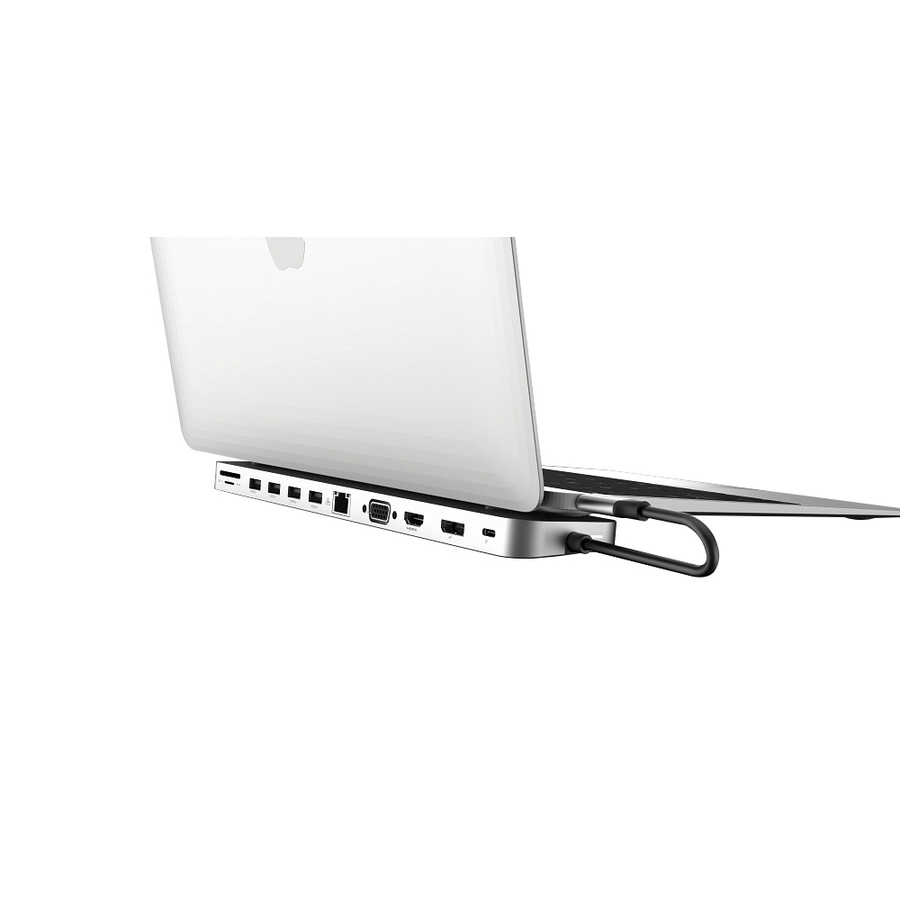

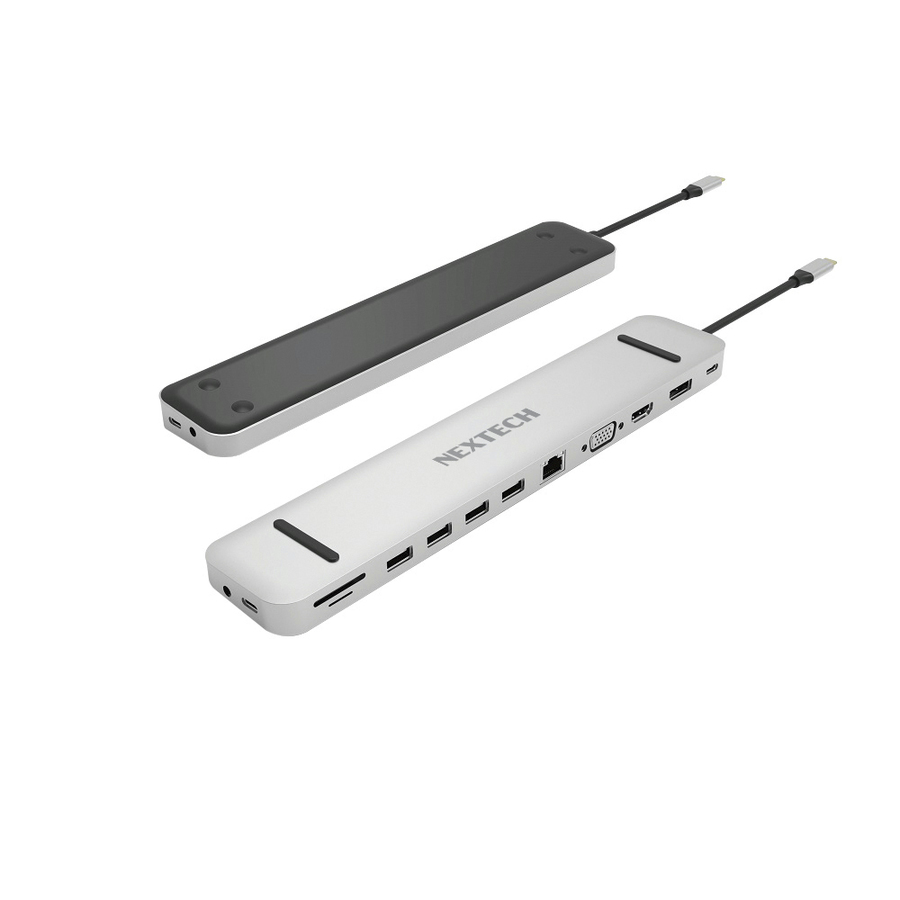

Enables you to connect all sorts of computer peripherals and media to your USB Type-C equipped laptop, Smartphone or Tablet. The HDMI, DisplayPort and VGA outputs enable you to connect to three displays simultaneously. The Type-C and 4 x USB3.0 ports are more than enough to connect a mouse, keyboard, thumbdrive, or other USB devices. The 3.5mm audio socket supports a microphone, and the Power Delivery 3.0 port supports up to 100W. An Ethernet port allows you to connect to high speed wired networks, and the integrated card reader supports SD and microSD cards. Designed to fit underneath and support the back of your laptop thanks to the silicone anti-slip pads.

FEATURES:
- Triple monitor output (HDMI, DisplayPort, VGA)
- 4 x USB 3.0
- 1 x USB-C ports
- SD/microSD card slots
- Supports Windows MST

SPECIFICATIONS
Power Delivery: 3.0. 100W (Charging limited to 87-96W)
HDMI:
- 4Kx2K @ 30Hz (3840 x 2160)
- Downward compatible with 1080p, 1080i, 720p
- HDMI will be 1080p while HDMI and VGA work simultaneously
- HDMI will be 1080p while HDMI, VGA, and DisplayPort work simultaneously
VGA: 1080p @60Hz
DisplayPort:
- 4Kx2K 3840x2160 @ 60Hz (work separately if source is DP1.4)
- 4Kx2K 3840x2160 @ 30Hz (work separately if source is DP1.2)
- 4Kx2K @30Hz while HDMI and DisplayPort work simultaneously
- 1080p while HDMI, VGA, and DisplayPort work simultaneously
USB:
- 4 x USB3.0
- 1 x USB-C (5Gbps)
SD/microSD: Read 50-104Mbps, Write 30-40Mbps
Ethernet: Up to 1000Mbps


    Specifications

    Computer / IT Adaptor


    Input Quantity
    1pc
    Casing Material
    Metal
    Computer Input Connection
    USB Type C
    Output Type
    USB Type C, USB 3 Type A, D15 HD (VGA), Display Port, HDMI Type-A, RJ45, MicroSD Memory Card Slot, SD Memory Card Slot
    Output Connection
    Socket
    Output Quantity
    13pc
    Plug or Socket?
    Plug
    Input Connections
    * Power Delivery: 3.0. 100W (Charging limited to 87-96W), * HDMI: 4Kx2K @ 30Hz (3840 x 2160), * VGA: 1080p @60Hz, * DisplayPort: 4Kx2K 3840x2160, * USB: 4 x 3.0 and 1 x USB-C (5Gbps), * SD/microSD: Read 50-104Mbps, Write 30-40Mbps, * Ethernet: Up to 1000Mbps

    Product Dimensions


    Length
    279mm
    Cable length
    200mm
    Height
    16.62mm
    Width
    54.29mm
    Weight
    231g

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    33.1cm
    Packaged Width
    9.1cm
    Packaged Weight
    0.304kg
    Packaged Volume
    0.78315l
    Packaged Height
    2.6cm
