Power Pack for Raspberry Pi - with Li-Ion Battery
Power Pack for Raspberry Pi - with Li-Ion Battery
Power Pack for Raspberry Pi - with Li-Ion Battery

CAT. No. XC9060

Power Pack for Raspberry Pi - with Li-Ion Battery
product image thumb
product image thumb

Power Pack for Raspberry Pi - with Li-Ion Battery

$34.95
Portable power expansion board with Li-ion battery pack. - Attaches Directly to Raspberry Pi - 2 USB Output Ports - Includes 3.7V 3800mAh Li-ion Battery

Out of Stock

Description

Raspberry Pi Compatible
Hazardous Materials

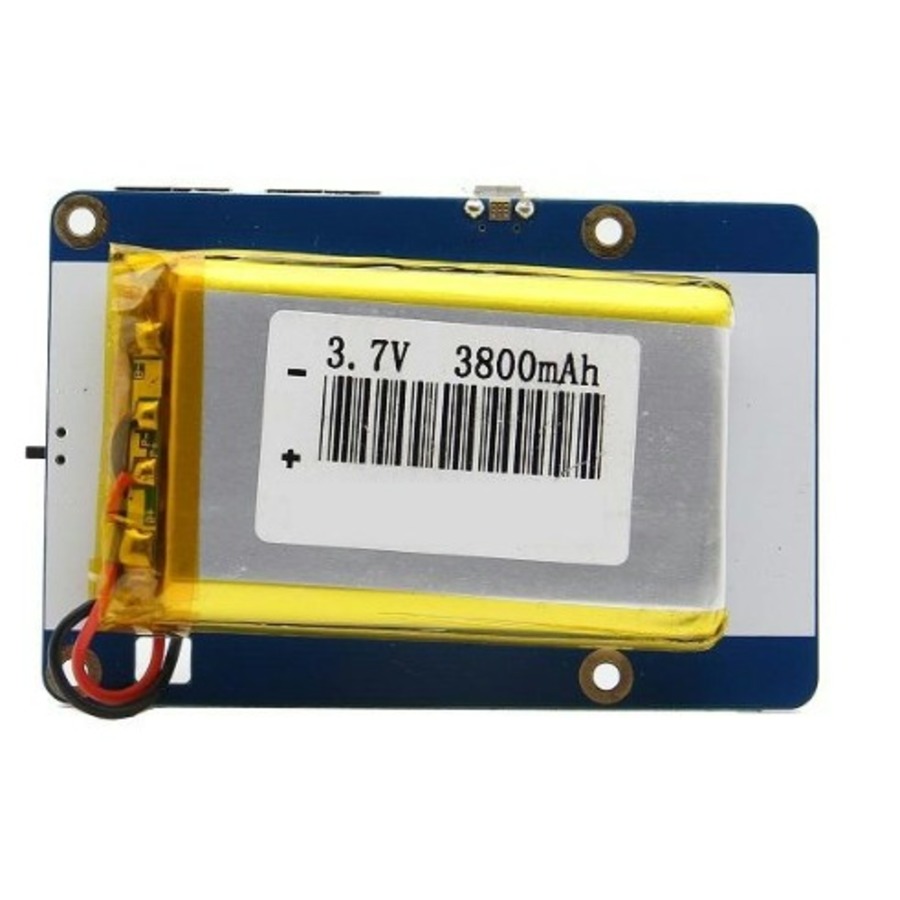

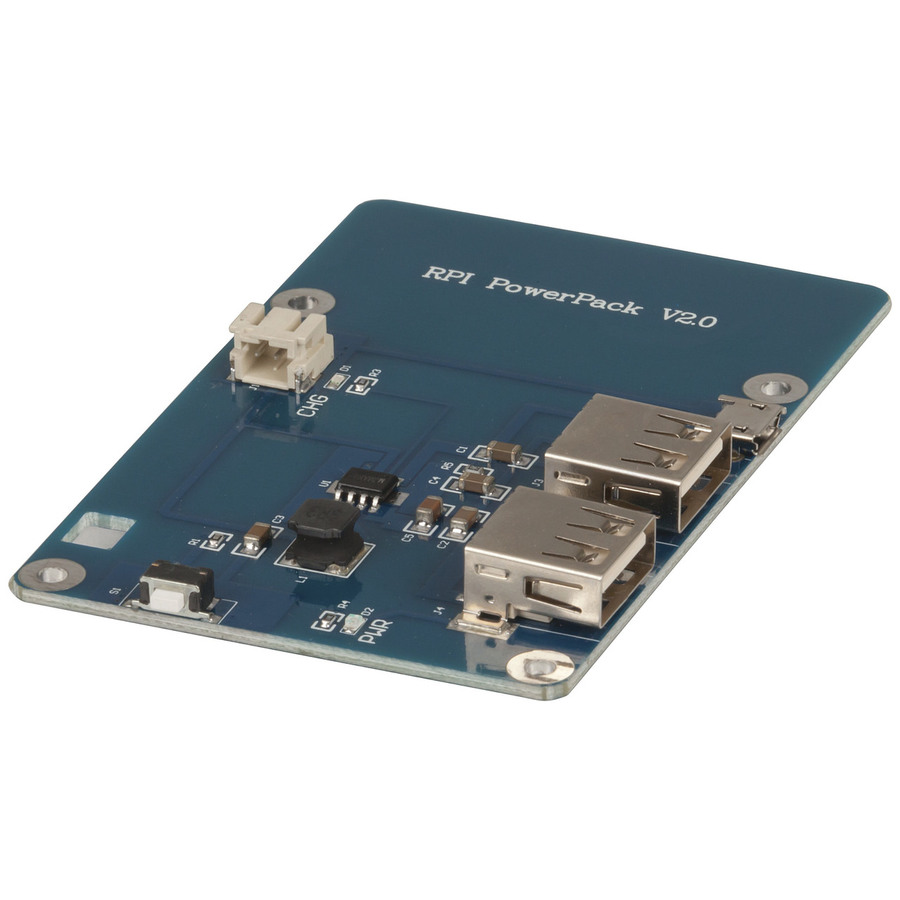

Make your Raspberry Pi project completely portable with this power expansion board with Li-ion battery pack. The expansion board is designed to attach directly below your Rasberry Pi and provide power from the built-in 3.7V 3800mAh Li-ion battery. Features two USB ports to power the RPi and another USB device, power switch, power and charging status LEDs, and an integrated charging module. Simply charge from an available USB port through the onboard micro USB socket. Mounting hardware included.

Features:
- Dual USB Outputs
- Includes 3.7V 3800mAh Li-ion Battery
- Onboard charging circuit

Specifications:
No-Load Output Voltage: 5.1V
Cut-off Voltage: 4.18-4.2V


    Specifications

    Power from rechargeable battery

    Type
    		 Lithium Ion
    Shape
    		 Lithium Rechargeable Battery Cell/Pack
    Capacity
    		 3800mAh
    Voltage
    		 3.7V
    Battery quantity
    		 1pc

    Rechargeable Battery

    Standard Recharge Current
    		 1A

    Battery Packs and Batteries

    Battery Peak Current
    		 1.8A

    Product Dimensions

    Length
    		 85mm
    Width
    		 56mm
    Weight
    		 80g

    Classified as dangerous goods

    Dangerous in Road Freight
    DG Class
    		 9
    Dangerous in Air Freight
    DG UN Number
    		 3481
    DG Pack Group
    		 II - Medium Danger
    DG Ship Name
    		 3481 - Lithium Ion Batteries Packed With Equipment
    DG Hazardous Chemical Code
    		 4W
    Battery Watt Hour Rating (Required for Lithium Batteries)
    		 14.06Wh

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15.5cm
    Packaged Width
    		 10.9cm
    Packaged Weight
    		 0.082kg
    Packaged Volume
    		 0.625115l
    Packaged Height
    		 3.7cm
