Raspberry Pi Compatible

Assembly Required

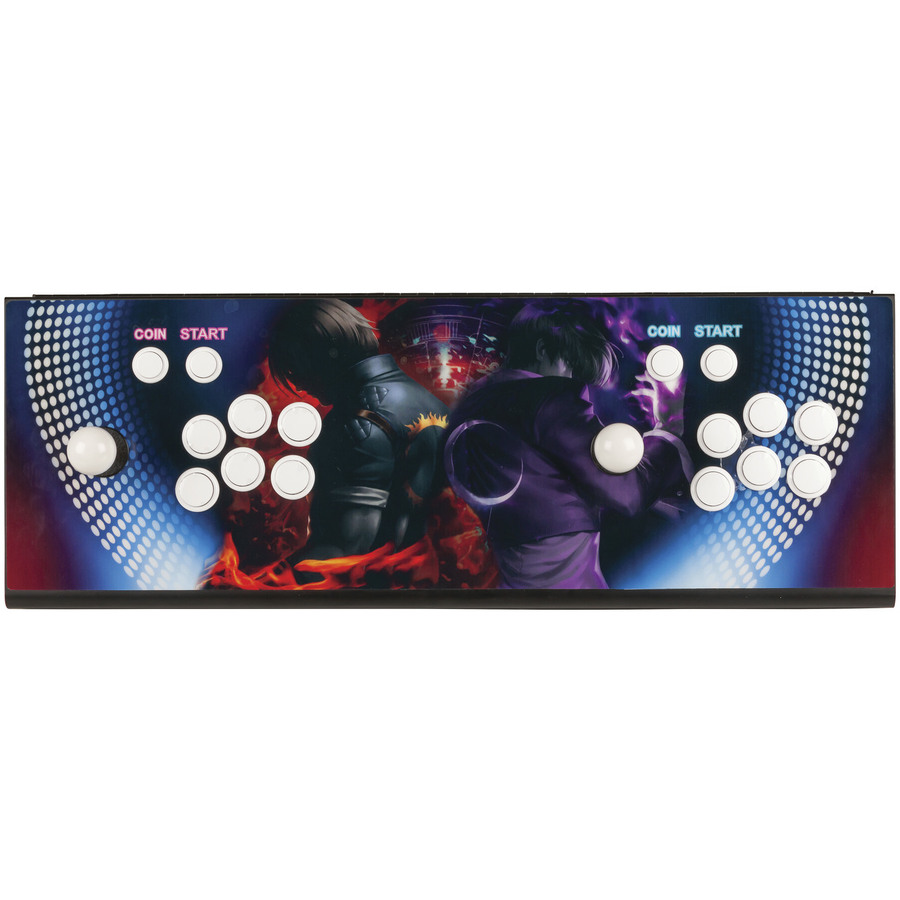

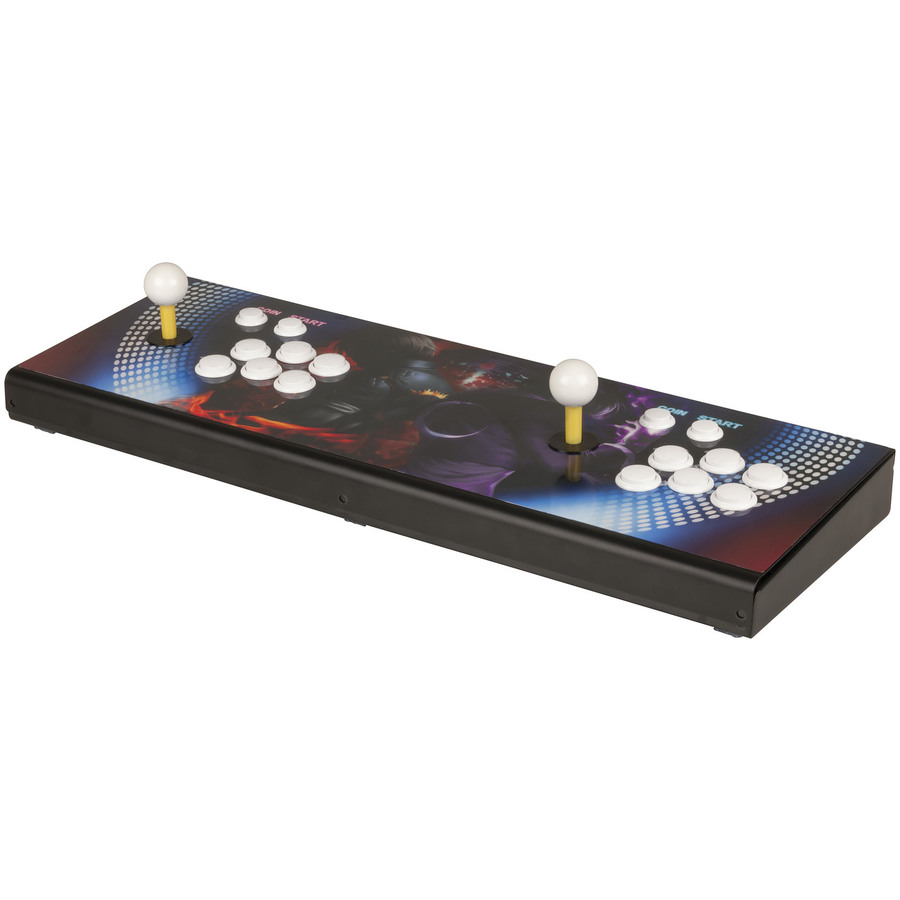

Let the games begin with this exciting retro arcade console. The console with classic design features a joystick with six buttons for two players, Simply install a Raspberry pi V3 or V4 into the console, insert a Retropie installed micro sd card, copy over some ROMS and you are ready to battle and enjoy some of your old favorites. The brains of this arcade console is a Rapsberry pi, video is sent via HDMI to connect to a TV, computer monitor or projector, and an audio out via the raspberry pies 3.5mm headphone jack allowing you to connect to an amplifier or Active speakers.

The case measures 650mm wide and has anti-slip rubber feet for stability.

Supplied with mains power adaptor, 3m HDMI lead, 3m USB lead, and two replacement gaming buttons. Recommended for ages 15+.

Features:
• 40 Pin header for easy connection to Raspberry pi for Joysticks and Buttons.
• 2 player arcade console
• Each player has joystick and 6 buttons

Display Output:
HDMI: 1280 x 720

Units needs the following to function:
• Raspberry Pi 3(XC9001) and Pi 4 (XC9100 - 4GB / XC9104 - 8GB)
• Retro pi operating system XC9031
• Code Snippet for joysticks see the downloads tab
• For Raspberry Pi 4, the extra adapters are required
   - Power will need USB Micro B Socket to USB C Plug Adapter PA0937
   - HDMI will need HDMI Socket to HDMI Micro-D Adapter PA3649

Easy to Set Up:

1. Install Pi 3B (XC9001) or 4B (XC9100, XC9104)
2. Install Retro Pi on Raspberry Pi
3. Install GPIOnext and reboot
4. Copy over ROMs
5. Connect to TV and Ready Player 1

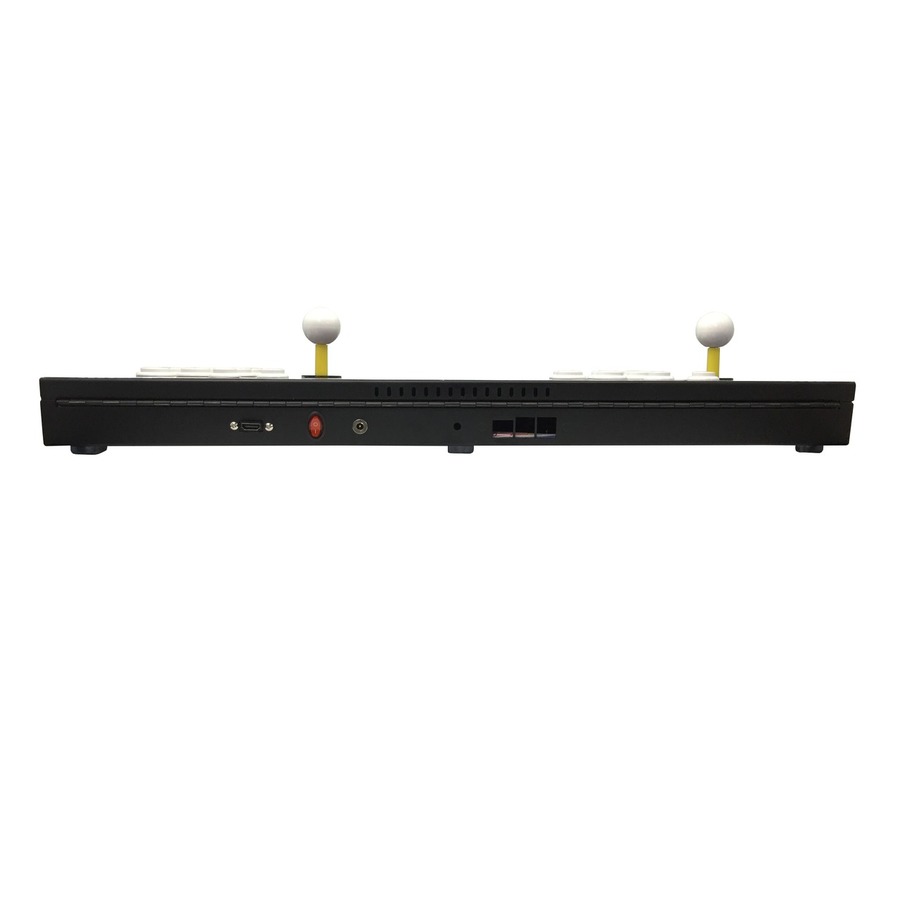

The main external connections are for a 12 volt power supply (provided) and a HDMI socket to connect to the monitor. These sockets are pre-wired for ease of construction.

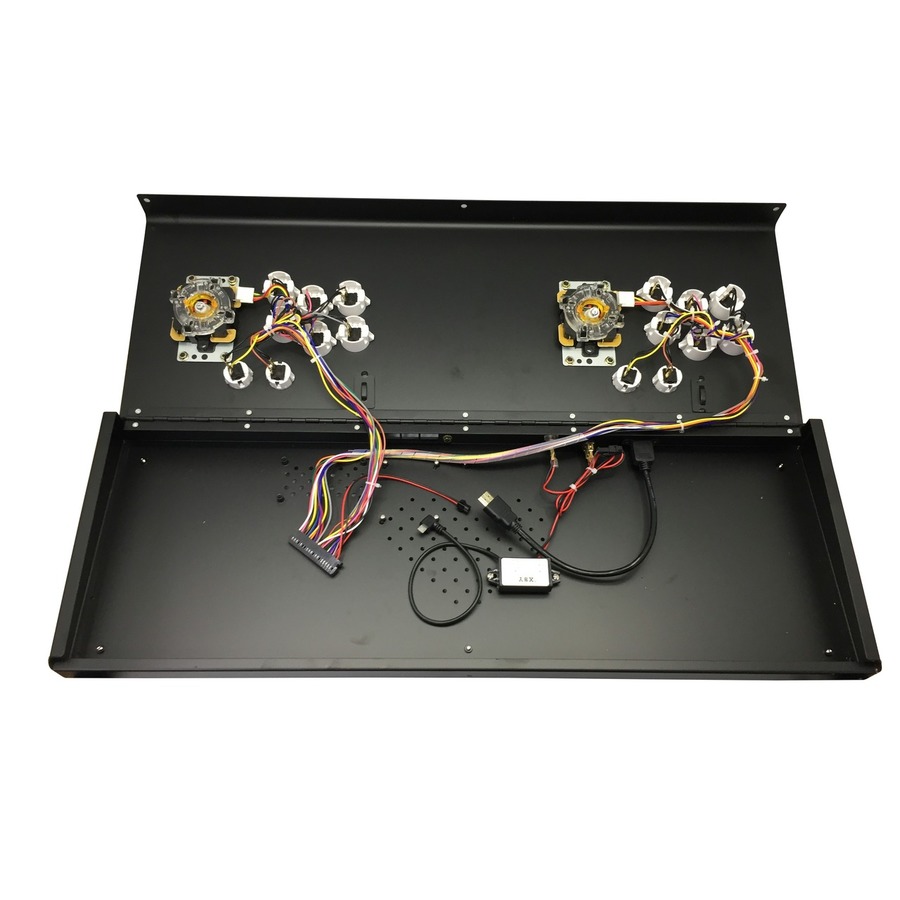

The internal wiring is also straight forward with no soldering required. The Raspberry Pi board mounts in place with the provided screws. The 40 pin connector for the joysticks goes straight onto the Raspberry Pi board. A 12 volt to 5 volt converter is located inside with a USB connector to power the Raspberry Pi. Finally, a HDMI fly lead connects the Pi to the external HDMI socket.

That's all there is to it, now it's time to download some ROMS and get gaming!
