Spur Gear Set
Spur Gear Set

CAT. No. YG2632

Spur Gear Set
product image thumb

Spur Gear Set

$12.95

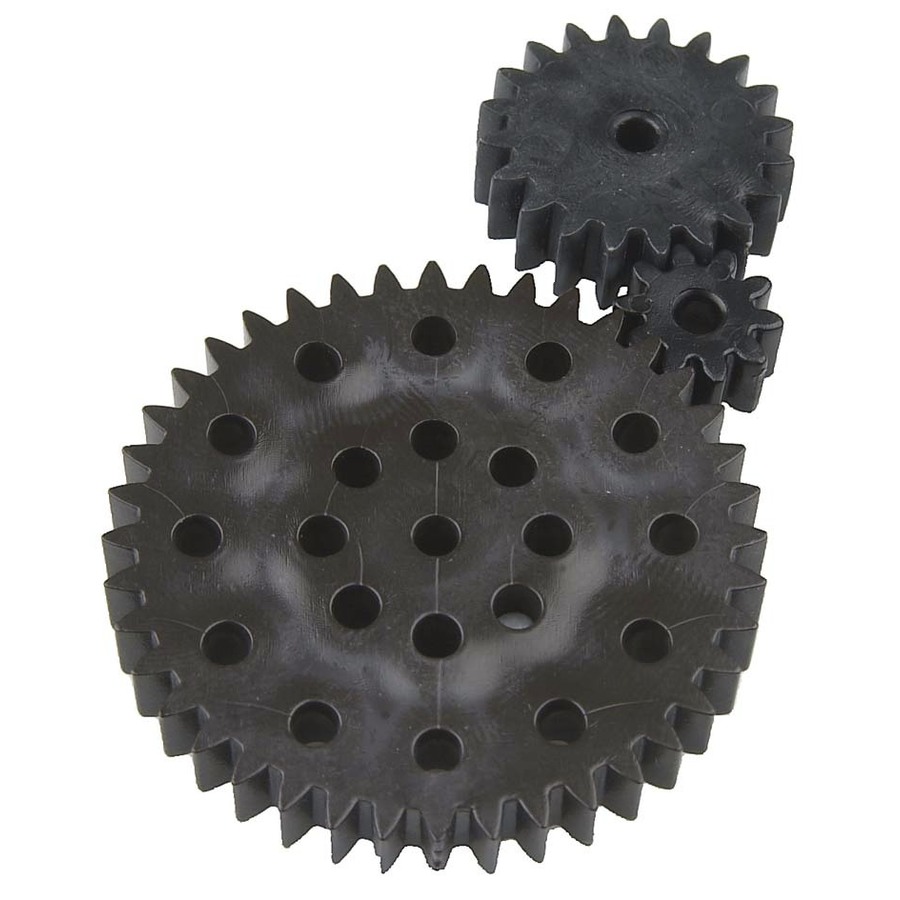

Spur gear set contains three different spur gears.
Available

Description

Contains three different spur gears

    Specifications

    Packaged Dimensions

    Packaged Length
    		 10.5cm
    Packaged Width
    		 7cm
    Packaged Weight
    		 0.014kg
    Packaged Volume
    		 0.147l
    Packaged Height
    		 2cm

    Drive Components

    Component B Pieces
    		 1pc
    Component A Dimensions
    		 41.3(Dia) x 6.3(W)mm
    Component A Pieces
    		 1pc
    Component B Type
    		 Spur Gear - Single
    Component C Pieces
    		 1pc
    Component B Gear Teeth
    		 20
    Material
    		 Plastic
    Component B Dimensions
    		 22(Dia) x 6.3(W)mm
    Type
    		 Gear Set
    Component A Gear Teeth
    		 40
    Component C Type
    		 Pinion Gear
    Component A Type
    		 Spur Gear - Single
    Number of pieces
    		 3pc
    Component C Gear Teeth
    		 10
    Component C Dimensions
    		 11.2(Dia) x 5.8(W)mm
    Bore
    		 2.9mm

    Product Availability

    Availability
    		 Stocked item
