CAT. No. YG2732

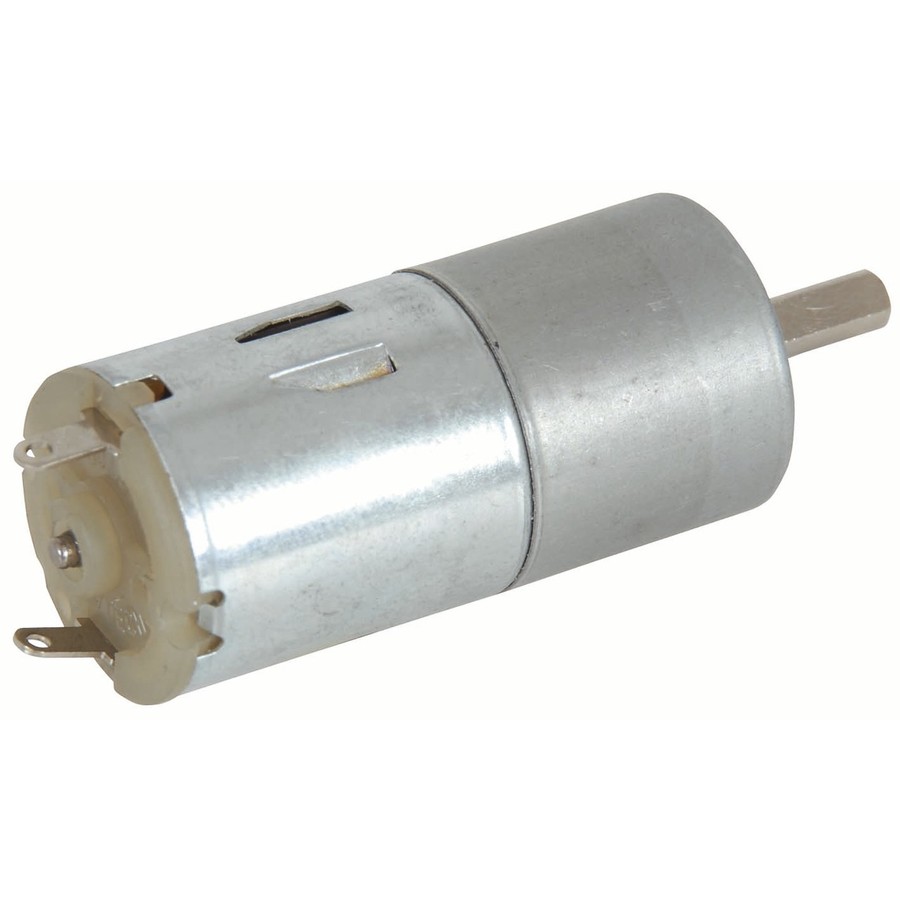

70RPM 12VDC Reversible Gearhead Motor
product image thumb
product image thumb

70RPM 12VDC Reversible Gearhead Motor

$17.95
This compact unit will give up to a massive 2.1 kg.cm of torque at 70rpm. Current draw rises to a modest 390mA. SPECS: - Max Torque: 2.1kg.cm
Available

Description

Compact reversible DC motor with gearbox head for small scale applications. Suitable for small robotics and drive applications.

Operating Voltage 12VDC

At Stall:
Torque:  2.1kg.cm
Current: 350mA


    Specifications

    Motor


    Max efficiency
    49.3%
    No load RPM
    70RPM
    Max. efficiency current
    110mA
    Full load torque
    2.1kg.cm
    Full load current
    390mA
    Max efficiency RPM
    59RPM
    Shaft diameter
    4mm
    Motor Type
    Gearhead
    Motor Nominal Voltage
    12V
    Max efficiency power
    1.3W
    Shaft length
    8.8mm
    Maximum efficiency torque
    480g.cm
    No load current
    30mA

    Power Source Details


    DC Voltage
    4.5V-18V
    Item connection
    Solder Tags

    Gearbox


    Type
    Planetary/Orbital
    Adjustable Gear
    Gear Ratio
    82:1
    Pre-assembled Gear

    Packaged Dimensions


    Packaged Length
    10cm
    Packaged Width
    11cm
    Packaged Weight
    0.048kg
    Packaged Volume
    0.22l
    Packaged Height
    2cm

    Product Availability


    Availability
    Stocked item
