Worm Drive Set
Worm Drive Set

CAT. No. YG2736

Worm Drive Set
product image thumb

Worm Drive Set

$9.95

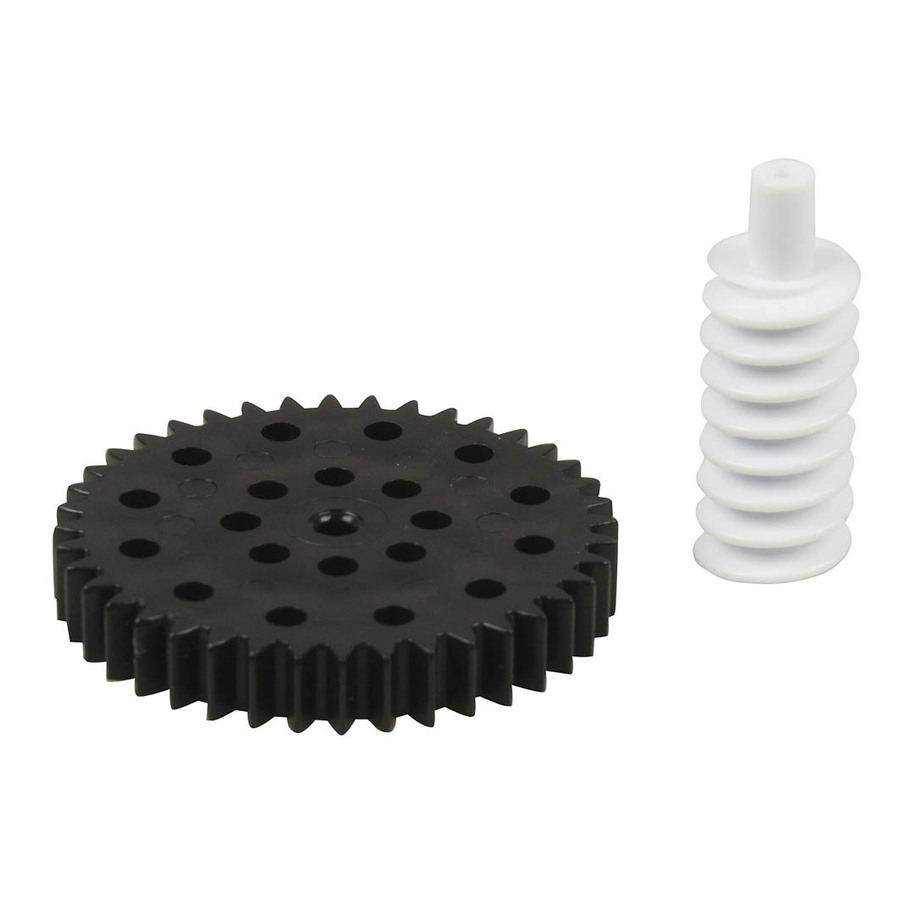

Contains one worm gear and one spur gear.
Available

Description

The set consists of a worm gear 24mm long x 12mm dia with an 8 turn worm screw. The worm has a 2.8mm axle hole which could probably be carefully drilled out to a larger diameter.
The spur gear is 1/4" (6.35 wide) and 1 & 5/8" (41.2mm) diameter with a number of regular pitch-concentric 2.8mm holes across the face would be a drilled out to accommodate a larger shaft. This gear has 40 teeth. Both are moulded in an engineering grade plastic.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 11cm
    Packaged Width
    		 7cm
    Packaged Weight
    		 0.0135kg
    Packaged Volume
    		 0.154l
    Packaged Height
    		 2cm

    Drive Components

    Component B Bore
    		 1.9mm
    Component B Dimensions
    		 11.9(Dia) x 32(L)mm
    Type
    		 Worm Gear Set
    Component A Dimensions
    		 41.3(Dia) x 6.3(W)mm
    Component A Pieces
    		 1pc
    Component B Type
    		 Worm Gear
    Component A Gear Teeth
    		 40
    Component A Type
    		 Spur Gear - Single
    Number of pieces
    		 2pc
    Material
    		 Plastic
    Component A Bore
    		 2.9mm

    Product Availability

    Availability
    		 Stocked item
