CAT. No. YG2738

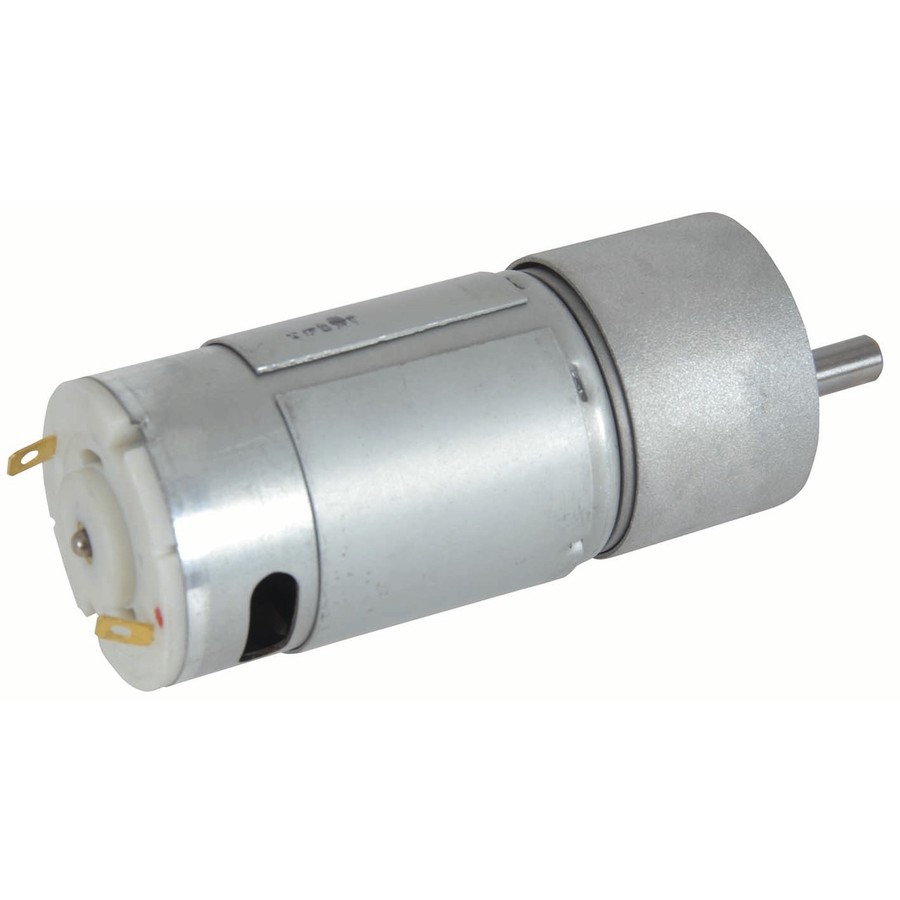

55RPM 12VDC Reversible Gearhead Motor
product image thumb

55RPM 12VDC Reversible Gearhead Motor

$52.95
As part of our new mechatronics range, we are proud to introduce 3 combined miniature motor/gearbox sets. The motors work equally well in forward or r...

Out of Stock

Description

High power reversible DC motor with gearbox head for heavy duty applications. Suitable for larger mechatronics projects or as a replacement motor for simple machines. Capable of producing a massive 50kg/cm torque at 55RPM at load and upto 160RPM at No Load.


    Specifications

    Motor


    Max efficiency
    44%
    No load RPM
    160RPM
    Max. efficiency current
    3.2A
    Full load torque
    75kg.cm
    Full load current
    18A
    Max efficiency RPM
    134RPM
    Shaft diameter
    6mm
    Motor Type
    Gearhead
    Motor Nominal Voltage
    12V
    Max efficiency power
    16.3W
    Shaft length
    12mm
    Maximum efficiency torque
    11.84kg.cm
    No load current
    450mA

    Power Source Details


    DC Voltage
    6V-12V
    Item connection
    Solder Tags

    Gearbox


    Type
    Planetary/Orbital
    Adjustable Gear
    Gear Ratio
    50:1
    Pre-assembled Gear

    Packaged Dimensions


    Packaged Length
    11cm
    Packaged Width
    4cm
    Packaged Weight
    0.326kg
    Packaged Volume
    0.176l
    Packaged Height
    4cm

    Product Availability


    Availability
    Stocked item
