CAT. No. YG2742

2 - Shaft Universal Motor Gearbox Set
product image thumb
product image thumb

2 - Shaft Universal Motor Gearbox Set

$23.95
This gearbox has a main output shaft exiting either side of the gearbox (to drive wheels, for example) and another single-ended shaft at 90° to the fo...
Available

Description

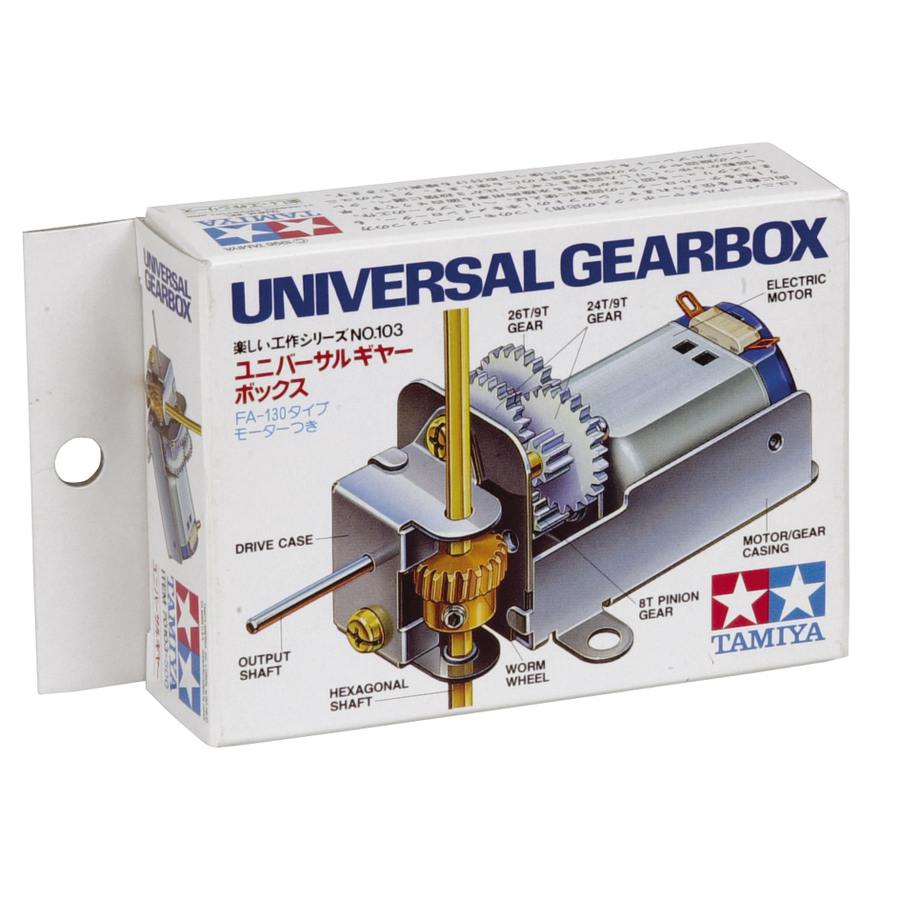

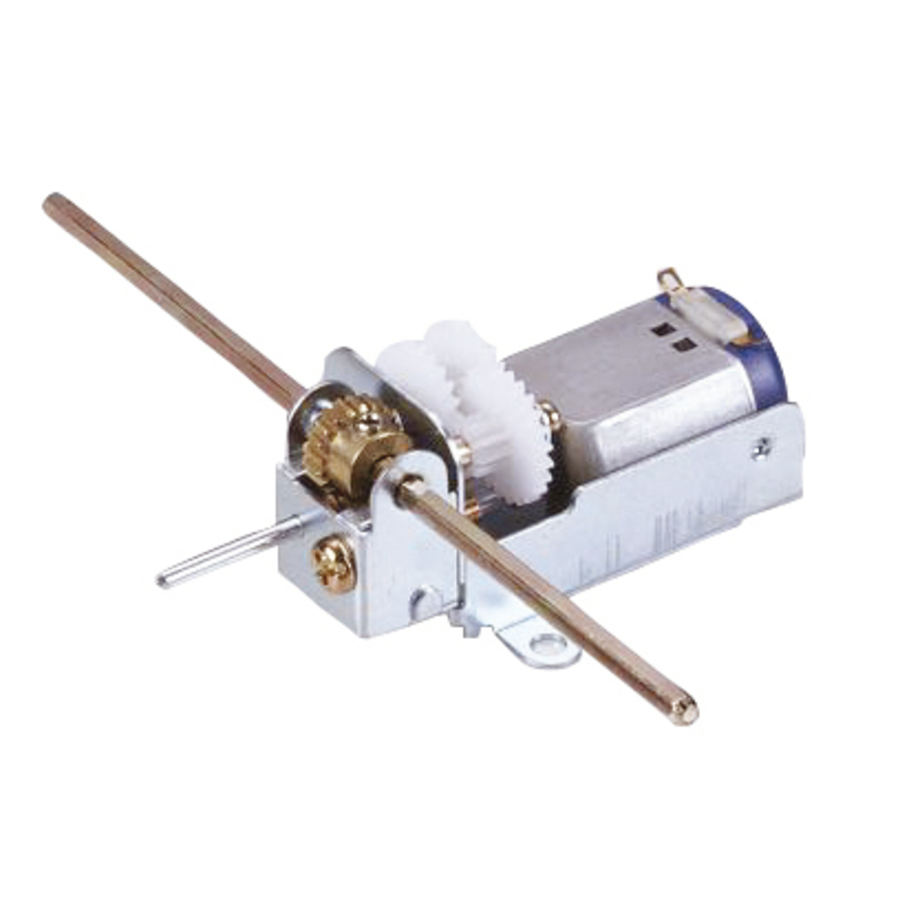

This gearbox has a main output shaft exiting either side of the gearbox (to drive wheels, for example) and another single-ended shaft at 90° to the former.
The gear set can be configured to give 3 set speeds. Metal chassis, includes motor.

    Specifications

    Motor

    Motor Nominal Voltage
    		 3V
    No load RPM
    		 12300RPM
    Full load torque
    		 0.00353N m
    Full load current
    		 2.1A
    No load current
    		 150mA

    Product Mounting

    Mounting Method
    		 Chassis

    Gearbox

    Adjustable Gear
    Gear Ratio
    		 101:1 , 269:1 , 719:1
    Gear Material
    		 Nylon

    Packaged Dimensions

    Packaged Length
    		 105cm
    Packaged Width
    		 7.5cm
    Packaged Weight
    		 0.069kg
    Packaged Volume
    		 2.3625l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
