DC Geared Motor with Rubber Wheel

$9.95

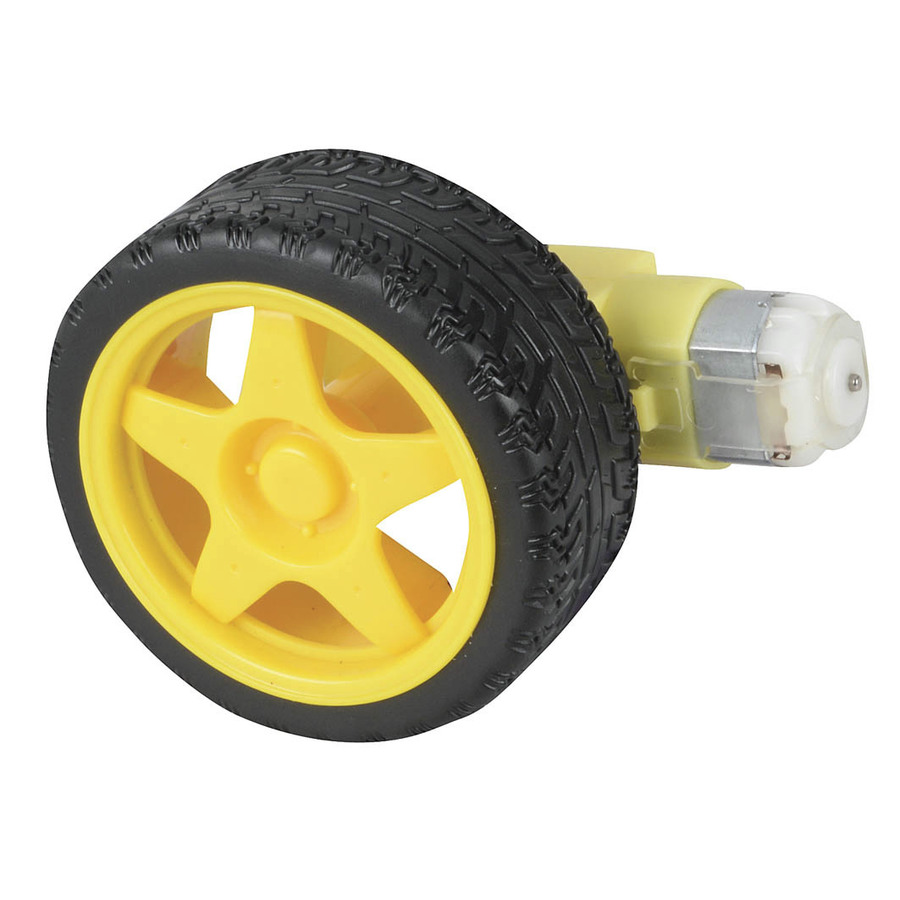

DC Geared Motor with Rubber Wheel perfect for DIY RC cars, robotics projects and more.

Available

Description

Raspberry Pi Compatible
Arduino? Compatible

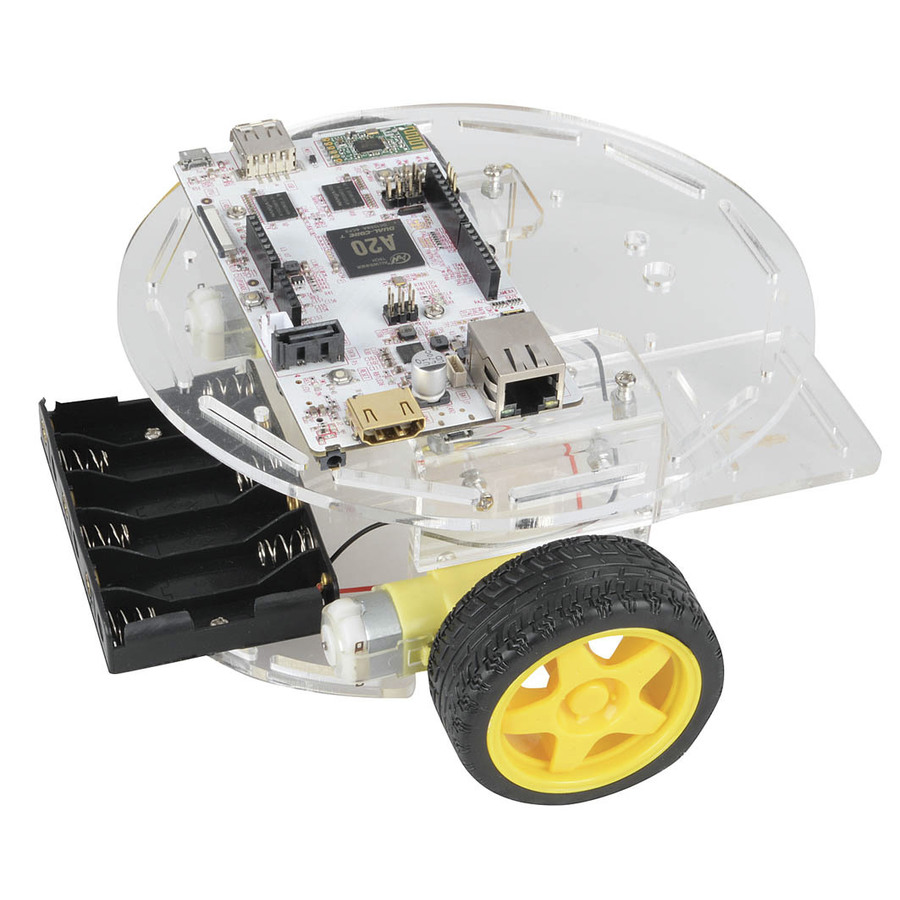

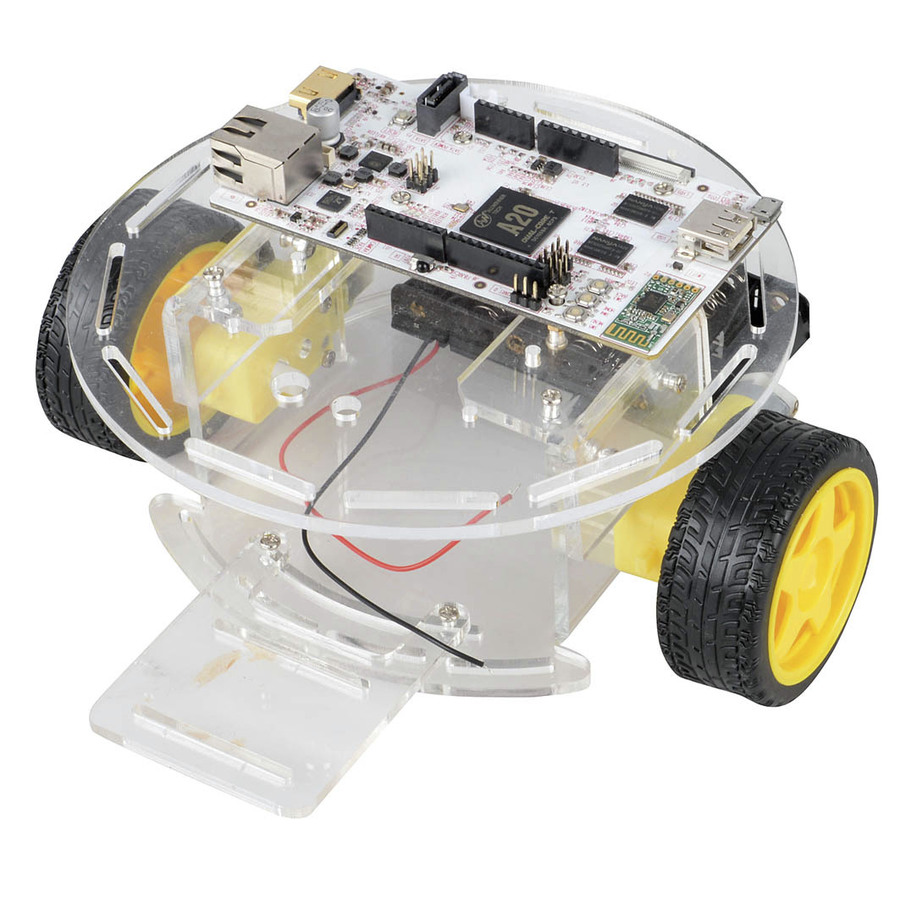

DC geared motor with rubber wheel suitable for your Arduino® vehicle based/robotics applications. Also a suitable replacement for the 2WD (KR-3160) and 4WD (KR-3162) car chassis.

Features:

•    DC motor: Working voltage 10VDC max.
•    Gear ratio: 48:1
•    Free running current: 70mA@3V
•    Stall current: 250mA, with 800gf.cm torque
•    1 x plastic tyre wheel
•    1 DC Gear Motor
•    Bi axial can match speed encoder
•    Convenient speed measurement




    Specifications

    Width 28mm
    Diameter 66mm
    Packaged Length 12.7cm
    Packaged Width 17.9cm
    Packaged Weight 0.072kg
    Packaged Volume 0.704723l
    Packaged Height 3.1cm
    Motor Type Motor + Gearbox Set
    Motor Nominal Voltage 10V
    Max. efficiency current 70mA
    Full load current 250mA
    Adjustable Gear
    Gear Ratio 48:1
    Pre-assembled Gear
    Gear Material Plastic
