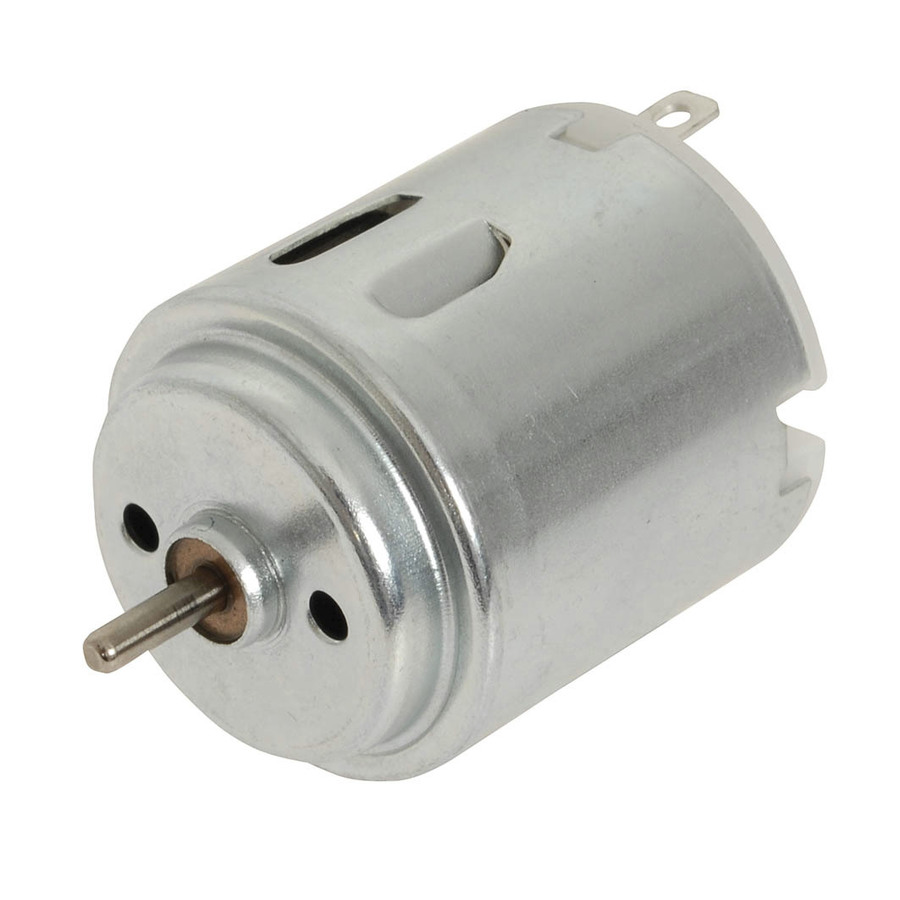

Hobby Motor - Medium Torque
Hobby Motor - Medium Torque

CAT. No. YM2707

Hobby Motor - Medium Torque
product image thumb

Hobby Motor - Medium Torque

$7.95
Ideal for hobbyist, experimenters, robotics, replacement, etc.Torque: MediumOperating Volts: 1.5- 4.5VNominal Volts: 4.5VSpeed (no load): 12500rpm

Out of Stock

Description

Ideal for hobbyist, experimenters, robotics, replacement, etc.

Operating Voltage: 4.5VDC

At Stall:
Torque:  100g.cm
Current: 3.337A

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

    Specifications

    Motor

    Shaft diameter
    		 2mm
    Max efficiency
    		 52.6%
    Motor Type
    		 Hobby
    Motor Nominal Voltage
    		 4.5V
    Max efficiency power
    		 2.1W
    No load RPM
    		 12500RPM
    Max. efficiency current
    		 0.47A
    Shaft length
    		 6.5mm
    Max efficiency RPM
    		 9500RPM
    Maximum efficiency torque
    		 22.3g.cm
    No load current
    		 0.25A

    Power Source Details

    DC Voltage
    		 1.5V-4.5V

    Packaged Dimensions

    Packaged Length
    		 9.6cm
    Packaged Width
    		 6.6cm
    Packaged Weight
    		 0.032kg
    Packaged Volume
    		 0.1584l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    YM2707-dataSheetMain.pdf
