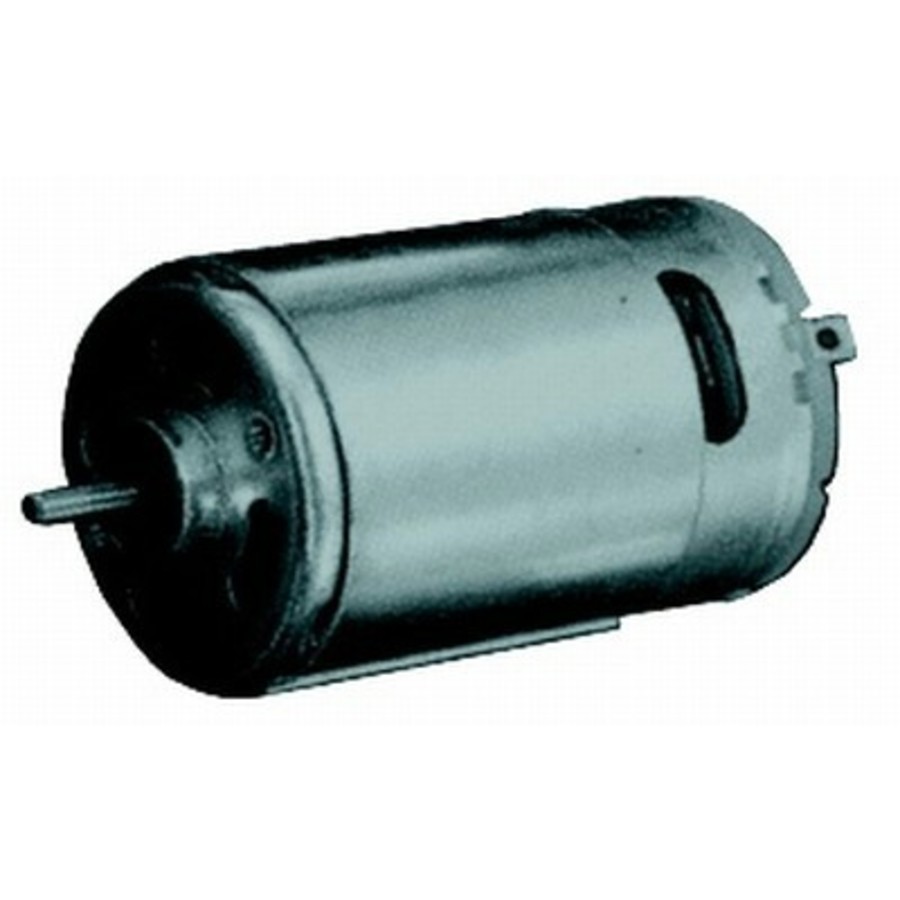

12V 8,100 RPM DC Electric Motor
12V 8,100 RPM DC Electric Motor

CAT. No. YM2716

12V 8,100 RPM DC Electric Motor
product image thumb

12V 8,100 RPM DC Electric Motor

$12.95
- Torque 180 g.cm - Voltage (V): 12NO LOAD - Speed (rpm): 14500 - Current (A): 0.28AT STALL - Torque (g.cm): 372 - Curre...
Available

Description

1 Year Warranty

• Torque 180 g-cm
• Voltage: 12V

AT STALL
• Torque (G.CM): 372
• Current (AMP): 5.21


AT MAX POWER
• Output (W): 13.57
• Speed (RPM): 8266
• Torque (G.CM): 160
• Current (AMP): 2.4

DIMENSIONS
• Diameter: 27.66mm
• Total Length: 57mm
• Shaft Length: 13mm
• Shaft dia: 2.3mm
• Mounting thread dia: 2.6mm

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

    Specifications

    Motor

    Max efficiency
    		 66.1%
    No load RPM
    		 14500RPM
    Max. efficiency current
    		 1.5A
    Full load torque
    		 520g.cm
    Full load current
    		 4.3A
    Max efficiency RPM
    		 10950RPM
    Shaft diameter
    		 2.3mm
    Motor Type
    		 High Speed
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 5.56W
    Shaft length
    		 13mm
    Maximum efficiency torque
    		 100g.cm
    No load current
    		 0.28A

    Power Source Details

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 57mm, 13mm
    Diameter
    		 26.66mm, 2.3mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.064kg
    Packaged Volume
    		 0.0558l
    Packaged Height
    		 6.2cm

    Additional Dimensions

    Length
    		 57mm, 13mm
    Diameter
    		 26.66mm, 2.3mm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
