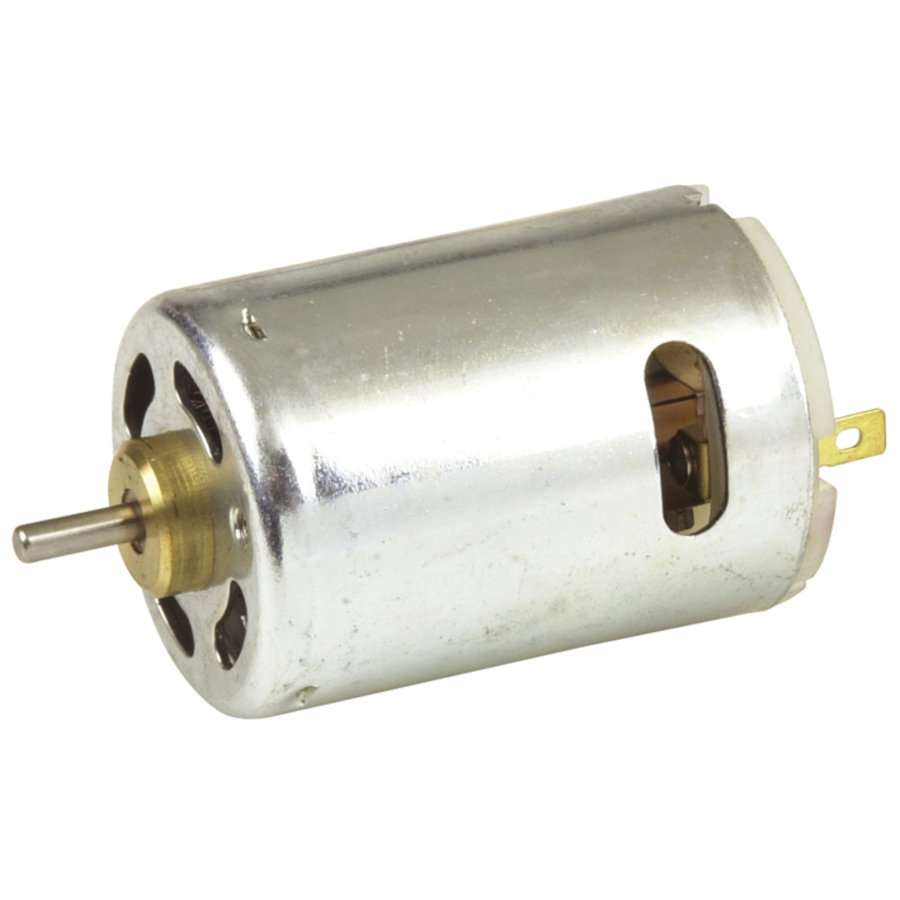

12V 6,500 RPM DC Electric Motor
12V 6,500 RPM DC Electric Motor

CAT. No. YM2718

12V 6,500 RPM DC Electric Motor
product image thumb

12V 6,500 RPM DC Electric Motor

$22.95
- Torque 1300 g.cm - Voltage (V): 12NO LOAD - Speed (rpm): 13000 - Current (A): 0.6AT STALL - Torque (g.cm): 1200 -...

Out of Stock

Description

1 Year Warranty

• Stall Torque : 1864 grams per cm
• Stall Current: 23 Amps

• Max power output: 62. Watts
• Max power current: 11.344 amps
• Max power speed: 6500 RPM

Dimensions:
Mounting thread dia: 3mm

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

    Specifications

    Motor

    Shaft diameter
    		 3.175mm
    Max efficiency
    		 65%
    Motor Type
    		 High Power
    Motor Nominal Voltage
    		 12V
    Max efficiency power
    		 30.7W
    No load RPM
    		 13000RPM
    Max. efficiency current
    		 3.9A
    Shaft length
    		 9.5mm
    Max efficiency RPM
    		 11200RPM
    Maximum efficiency torque
    		 267g.cm
    No load current
    		 0.67A

    Power Source Details

    DC Voltage
    		 12V

    Product Dimensions

    Length
    		 71mm, 9.5mm
    Diameter
    		 35.8mm, 3.175mm

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 4cm
    Packaged Weight
    		 0.152kg
    Packaged Volume
    		 0.128l
    Packaged Height
    		 4cm

    Additional Dimensions

    Length
    		 71mm, 9.5mm
    Diameter
    		 35.8mm, 3.175mm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
