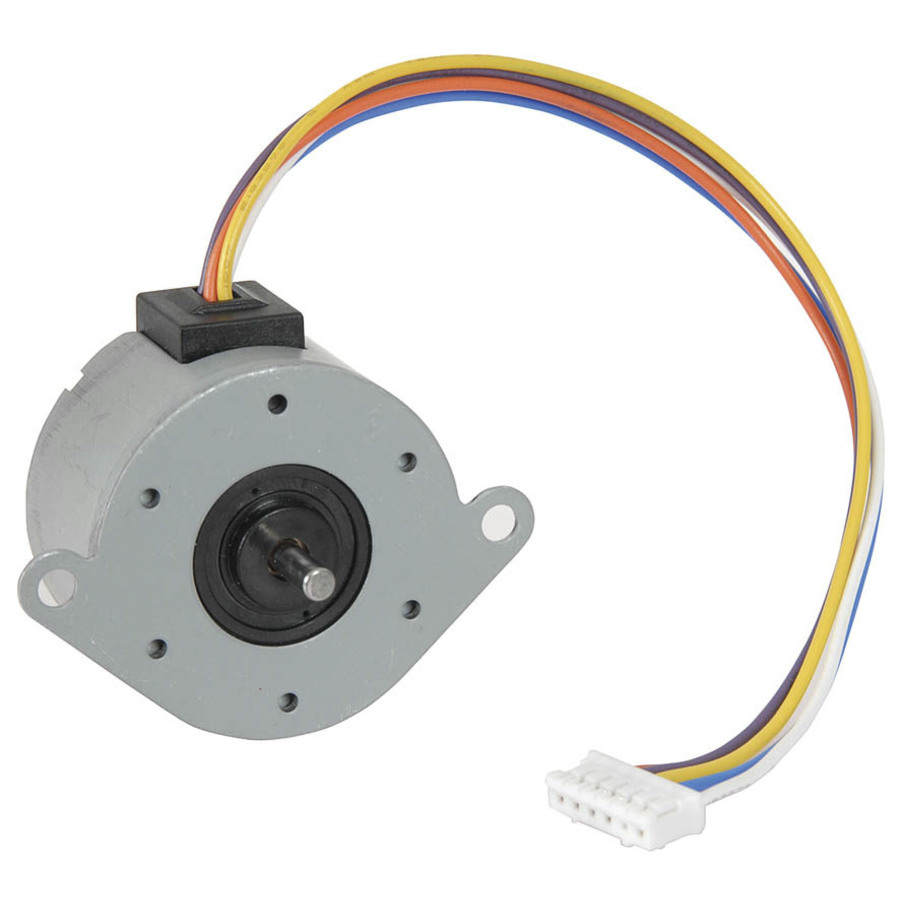

12VDC 48 Step 7.5° Stepper Motor
12VDC 48 Step 7.5° Stepper Motor

CAT. No. YM2754

12VDC 48 Step 7.5° Stepper Motor
product image thumb

12VDC 48 Step 7.5° Stepper Motor

$24.95
- Standard 48 step / 7.5° design. - Flange mount 3.0mm hardened steel shaft.Specifications: - Rated voltage: 12VDC - Rated curre...
Available

Description

1 Year Warranty

• Standard 48 step / 7.5° design.
• Flange mount 3.0mm hardened steel shaft.

Specifications:
• Rated voltage: 12VDC
• Rated current: 1.1A/phase
• Phases: 4
• Steps per revolution: 48
• Stepping angle: 7.5°
• Drive method: Unipolar chopper drive
• Resistance per winding: 20 ohms
• Starting frequency: 600pps (max)
• Holding torque: 700g/cm

Handy Tip A note on gearbox speeds

All DC motors and motor gearboxes can change speed to a considerable amount by changing voltage within specified limits. This reduces need for special gear ratios for your application.

    Specifications

    Motor

    Motor Nominal Voltage
    		 12V
    Max. efficiency current
    		 1.1A

    Power Source Details

    DC Voltage
    		 12V

    Packaged Dimensions

    Packaged Length
    		 9cm
    Packaged Width
    		 7.5cm
    Packaged Weight
    		 0.089kg
    Packaged Volume
    		 0.135l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months

    Downloads

      Articles

    YM2754-dataSheetMain.pdf
