CAT. No. YN8049

10 Port Gigabit PoE Network Switch
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

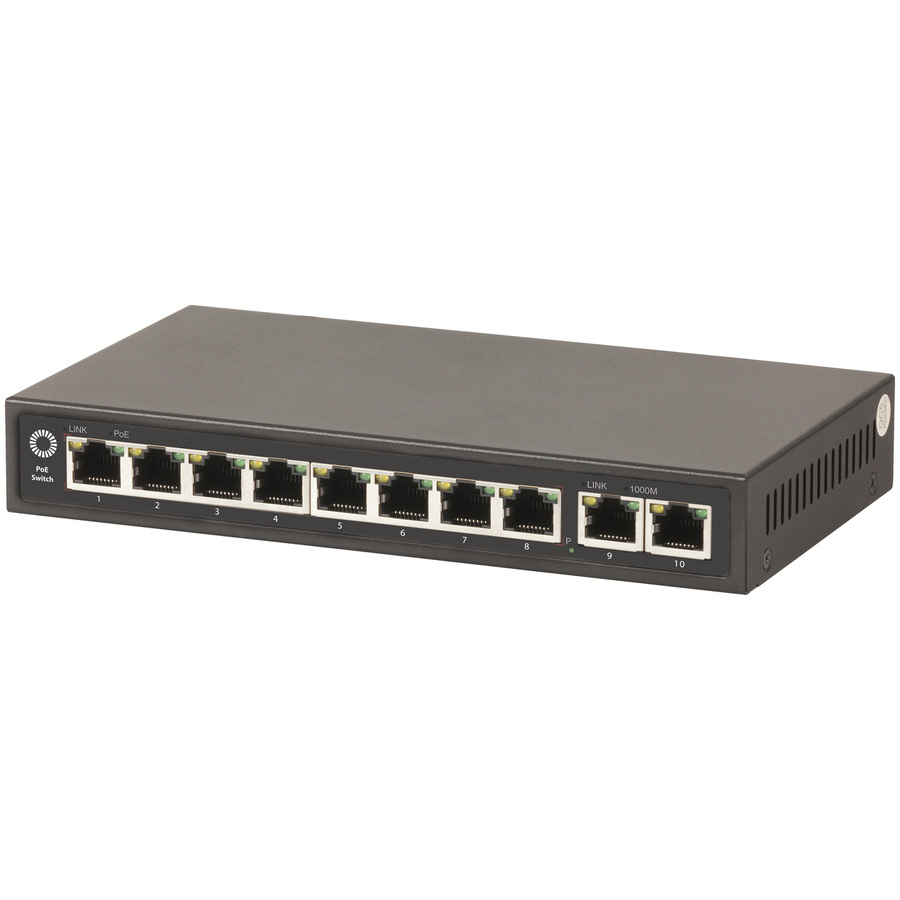

10 Port Gigabit PoE Network Switch

$225
PoE simplifies power delivery for IP surveillance, telephone, and many other systems.
Available

Description

1 Year Warranty

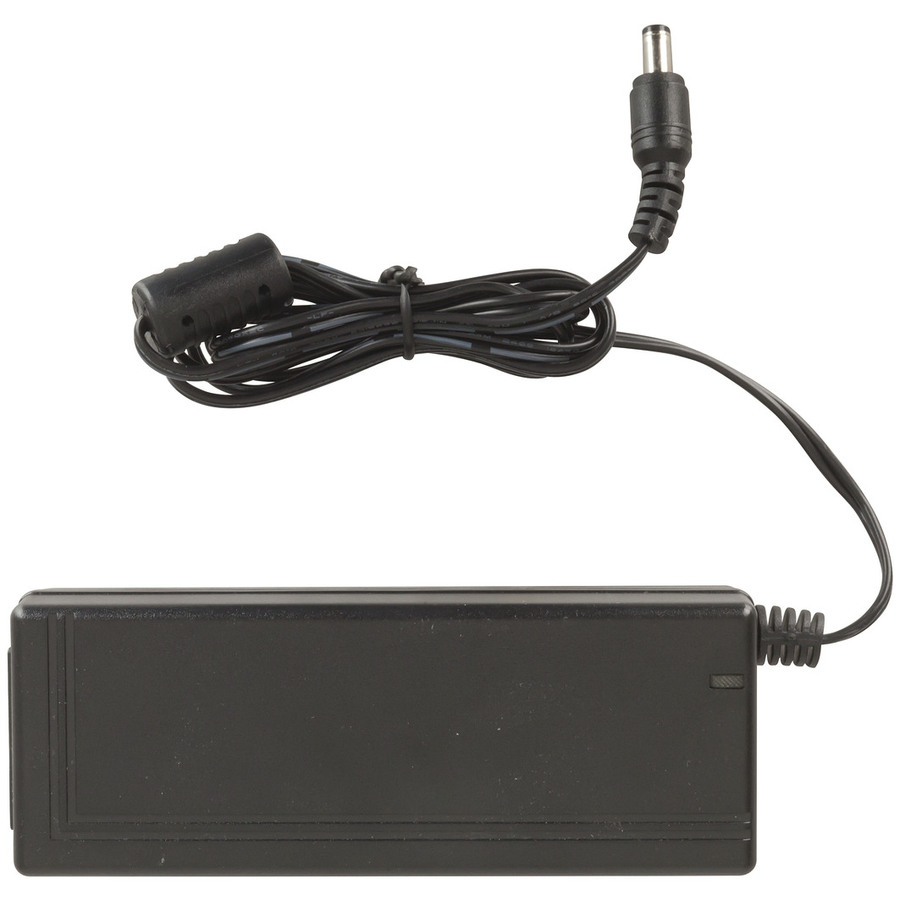

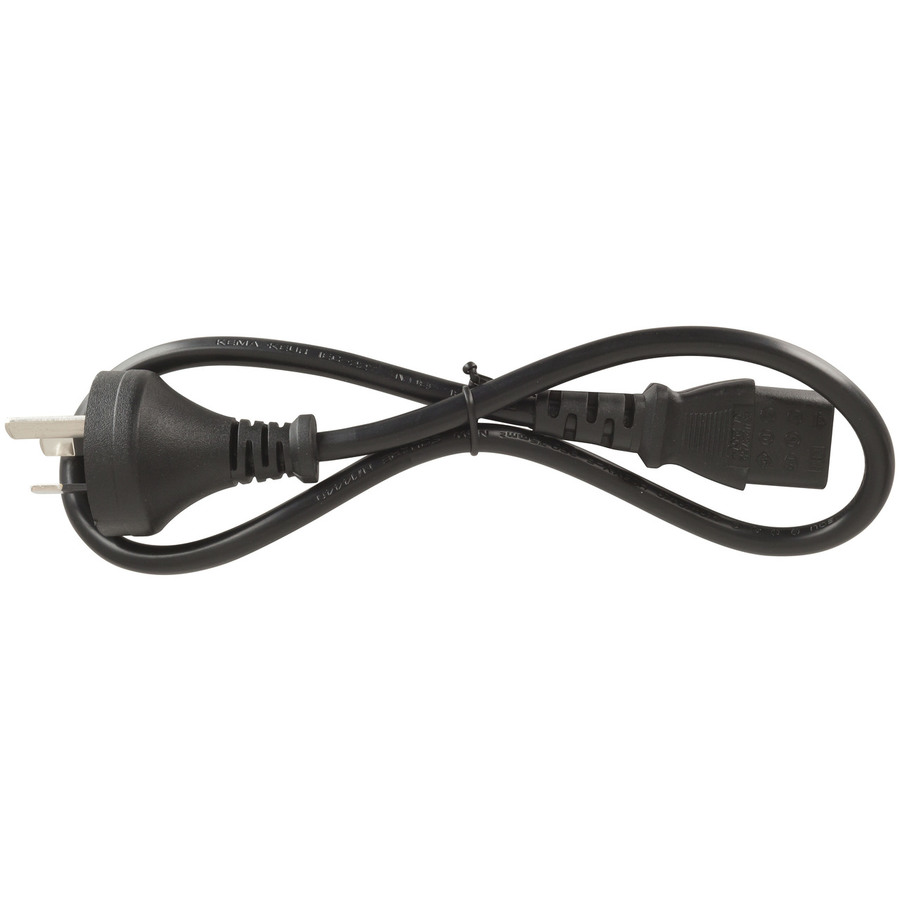

PoE simplifies power delivery for IP surveillance, telephone, and many other systems. This is a powerful gigabit switch with 8 x PoE-enabled and 2 x standard gigabit ports. It can deliver up to 120W of power (max 30W to a single port), which is loads of power for just about any PoE-enabled device you may have. Ultra-fast gigabit network also enables fast data transfer, critical for high resolution IP cameras and data-intensive systems, and is also very useful for providing PoE to access points and switches which are also distributing the connection. Automatic PoE detection, fully compatible with non-PoE devices. Includes mains power adaptor and mounting bracket.

Features:

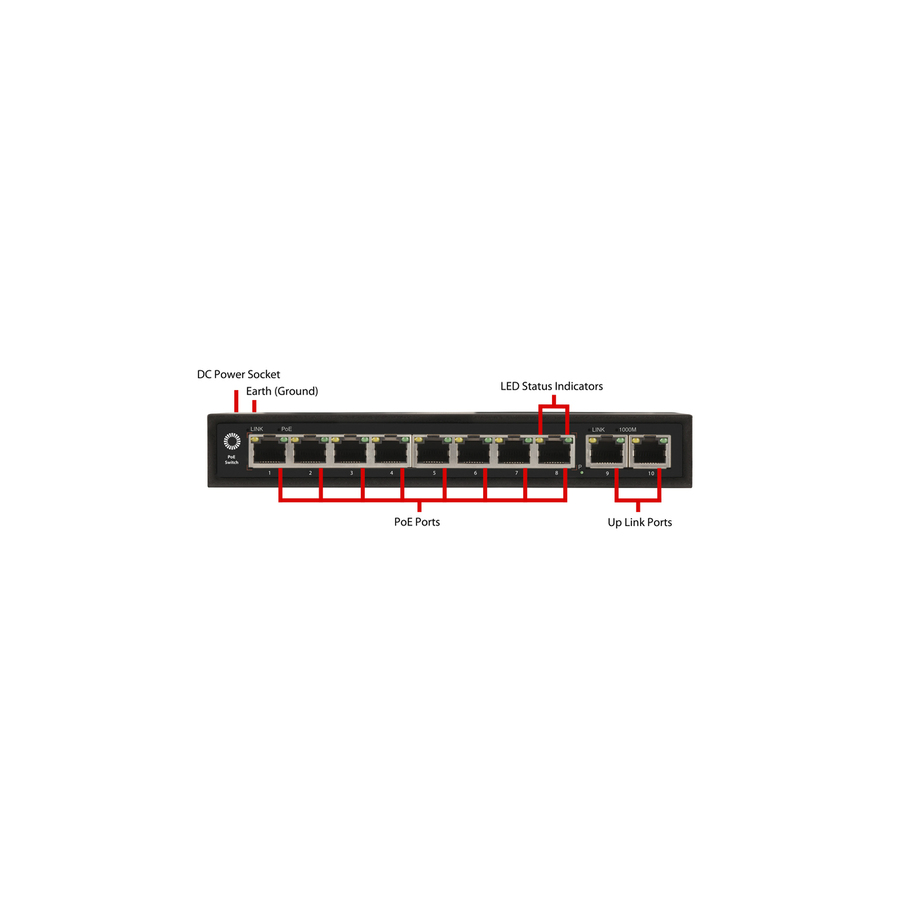

Ports: 8 x PoE (RJ45)
         2 x Uplink (RJ45)
Power Output: 30W Per Port (Max)
                      15.4W Per Port (Across 8 Ports)
                      120W (Total)
PoE Standards: IEEE 802.3at, IEEE 802.3af
Network Speed: 10/100/1000Mbps


    Specifications

    Power from Plugpack


    DC Plugpack Voltage
    52V
    DC Current Draw
    2.5A

    Product Dimensions


    Height
    28mm
    Width
    189mm
    Depth
    102mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    25.5cm
    Packaged Width
    21cm
    Packaged Weight
    1.25kg
    Packaged Volume
    4.87305l
    Packaged Height
    9.1cm
    Warranty: 12 Months
