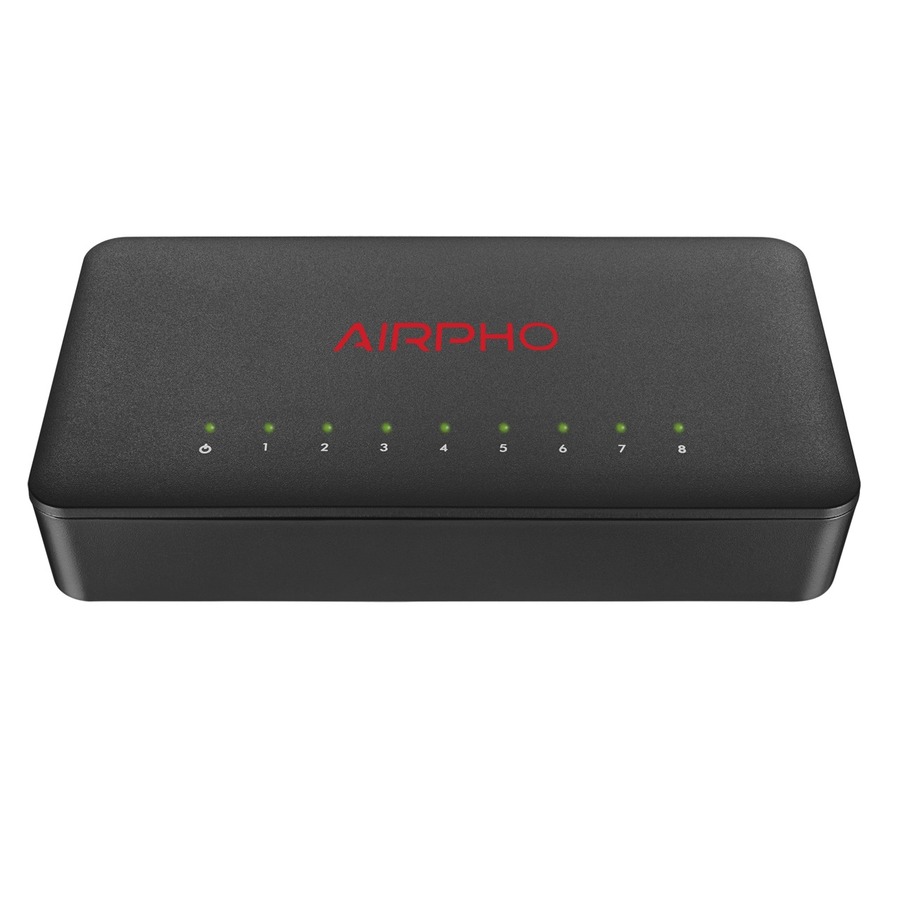

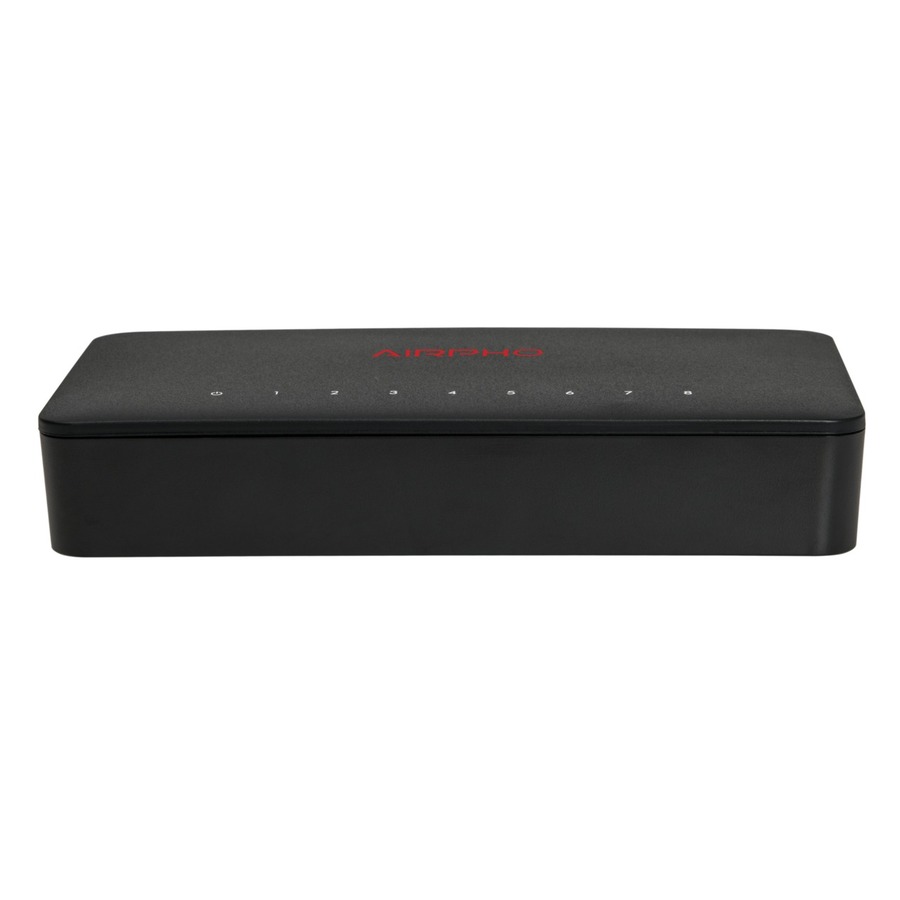

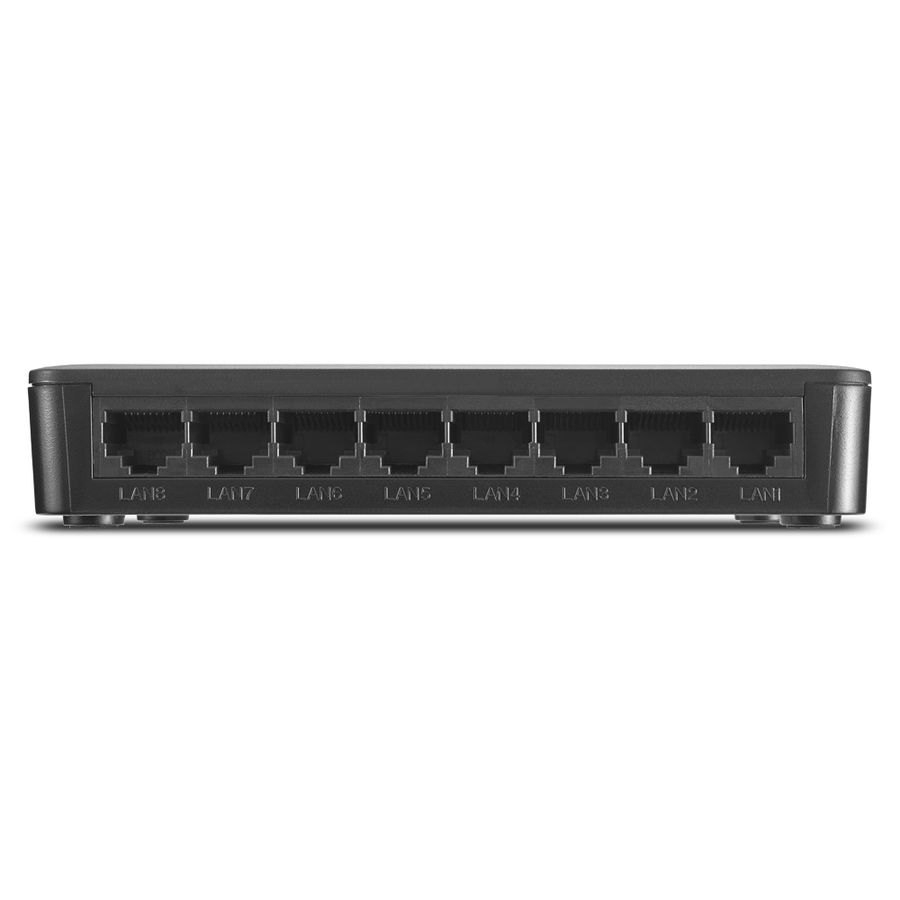

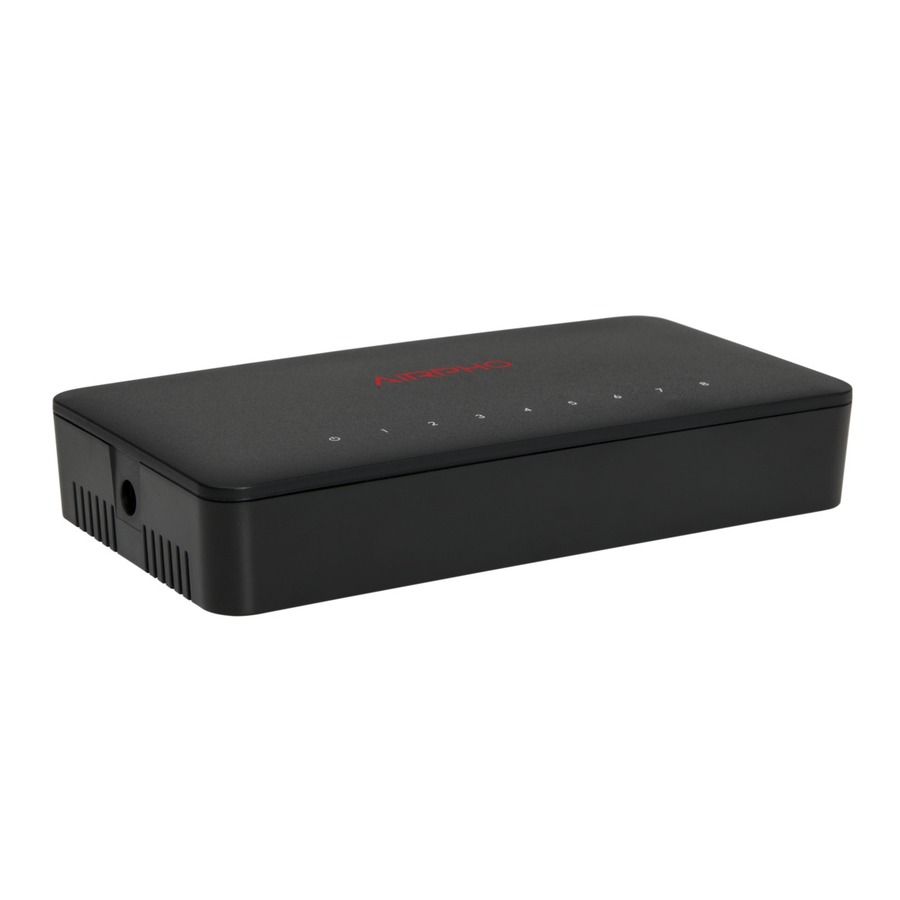

AIRPHO 8 Port 10100Mbps Ethernet Switch

$34.95
Versatile AIRPHO 8 port 10/100Mbps ethernet swtich for expanding home or business wired networks
Available

Description

Provides 8 additional ports to an internet router, firewall, or a standalone network. All ports support 10/100Mbps and feature auto-MDI/MDIX, which means it will work fine with both straight-through and crossover network cables. Plug-and-play installation, and low power consumption from a compact unit.

Features:
- Auto-MDI/MDIX port
- MAC address auto-learning and auto-aging
- Half and Full Duplex

Specifications:
MAC Address Table: 1K entries per device
Protocol: CSMA/CD
Forwarding performance: 1.2Mpps
Backplane Bandwidth: 1.6Gbps
Transmission Method: Store-and-Forward

    Specifications

    Network Infrastructure Hardware

    Speed of Transmission
    		 100Mb/s
    Type of Hardware
    		 Switch
    Communication standards
    		 IEEE 802.3, IEEE 802.3u, IEEE 802.3x

    LAN Details

    LAN Standard
    		 100 Base T
    LAN Port Type
    		 RJ45
    Number of LAN Ports
    		 8 ports

    Power from Plugpack

    DC Plugpack Voltage
    		 5V-0V
    Suitable PSU Included
    PSU Powers
    		 Main Product
    DC Current Draw
    		 500mA-0mA

    Product Dimensions

    Height
    		 25mm
    Width
    		 139mm
    Depth
    		 76mm
    Weight
    		 155g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 14.7cm
    Packaged Width
    		 8.8cm
    Packaged Weight
    		 0.23kg
    Packaged Volume
    		 1.190112l
    Packaged Height
    		 9.2cm
