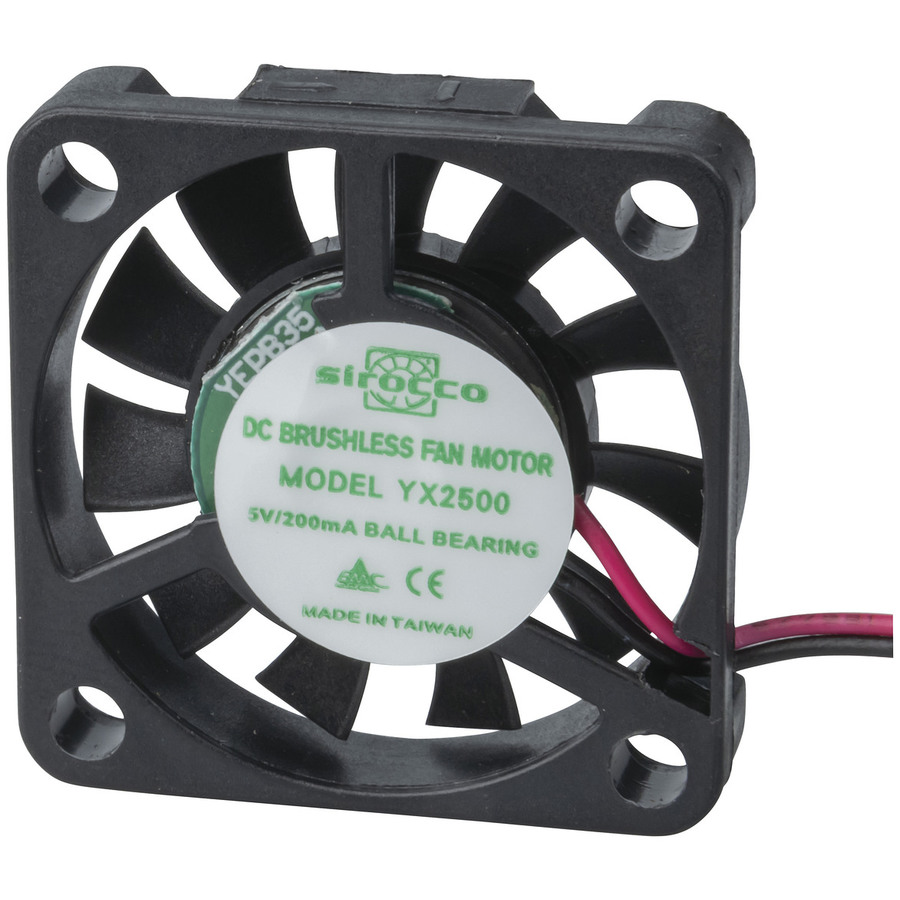

5VDC 30mm Thin 2 Wire Fan
5VDC 30mm Thin 2 Wire Fan

CAT. No. YX2500

5VDC 30mm Thin 2 Wire Fan
product image thumb

5VDC 30mm Thin 2 Wire Fan

$25.5
SpecificationsVoltage (V)5VDCCurrent (mA)200Dimensions (mm)30 x 30 x 6Air volume (M3/min)3.1Air volume (CFM)108Speed (RPM)8,000Noise (dBA)27Bearing sy...
Available

Description

Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.

  • Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
  • Ball bearing: 100,000 hours @ 25degC
  • Can be mounted on suction or discharge side
  • Wiring will not burn out, even if rotating parts are restricted.

    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 40000hr
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.087m³/min
    fan bearing type
    		 Ball
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 3.09ft³/min
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan RPM
    		 8000RPM
    fan noise
    		 21dB
    fan connector type
    		 Flyleads

    Power from Plugpack

    DC Plugpack Voltage
    		 5V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 120mA

    Product Dimensions

    Length
    		 30mm
    Height
    		 30mm
    Width
    		 6mm

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.018kg
    Packaged Volume
    		 0.12675l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
