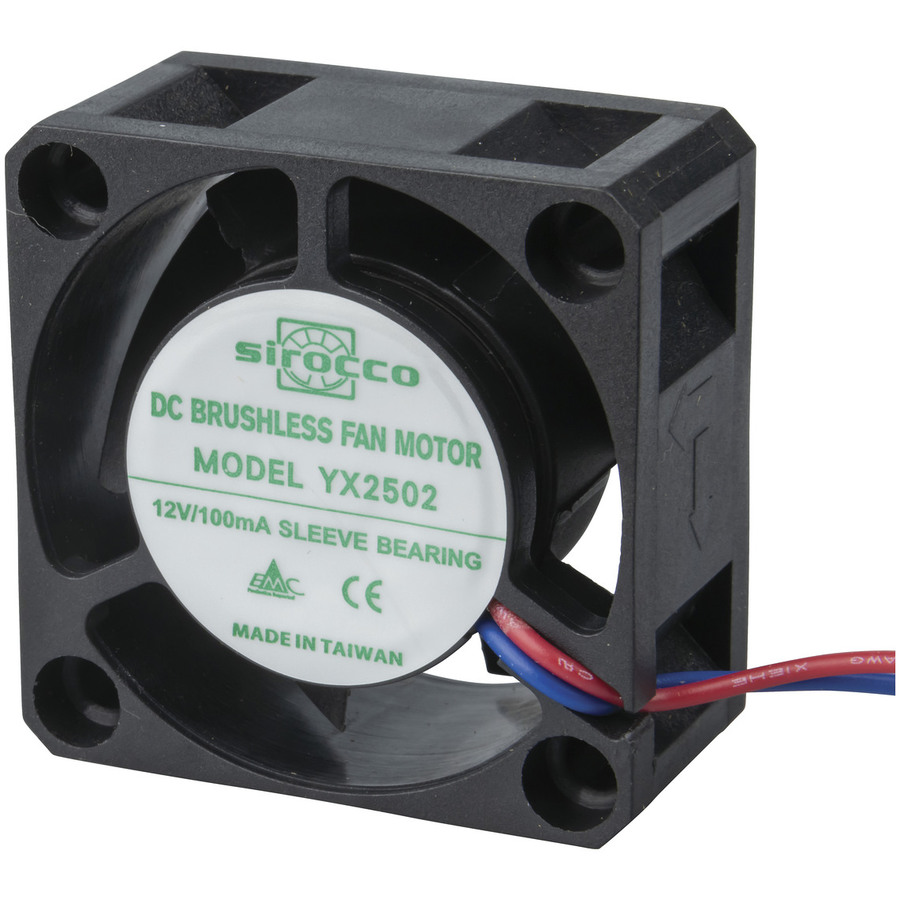

40mm 12V DC Fan
40mm 12V DC Fan

CAT. No. YX2502

40mm 12V DC Fan
product image thumb

40mm 12V DC Fan

$25.95
- Air Volume - 0.215 (M3/min) - Housing - Plastic,- Bearing System - Sleeve fibreglass filled.- Noise - 32dB (A) - Speed - 7,000 rpm- Voltage - 12V DC...
Available

Description

Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.

  • Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
  • Ball bearing: 100,000 hours @ 25degC
  • Can be mounted on suction or discharge side
  • Wiring will not burn out, even if rotating parts are restricted.

    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.215m³/min
    fan bearing type
    		 Sleeve
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 7.6ft³/min
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan RPM
    		 7000RPM
    fan noise
    		 32dB
    fan connector type
    		 Flyleads

    Mains powered

    Rated for AU Mains

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 100mA

    Product Mounting

    Mounting Method
    		 Through Hole

    Product Dimensions

    Length
    		 40mm
    Height
    		 40mm
    Depth
    		 20mm

    Packaged Dimensions

    Packaged Length
    		 6.8cm
    Packaged Width
    		 3.2cm
    Packaged Weight
    		 0.04kg
    Packaged Volume
    		 0.143616l
    Packaged Height
    		 6.6cm

    Product Availability

    Availability
    		 Stocked item
