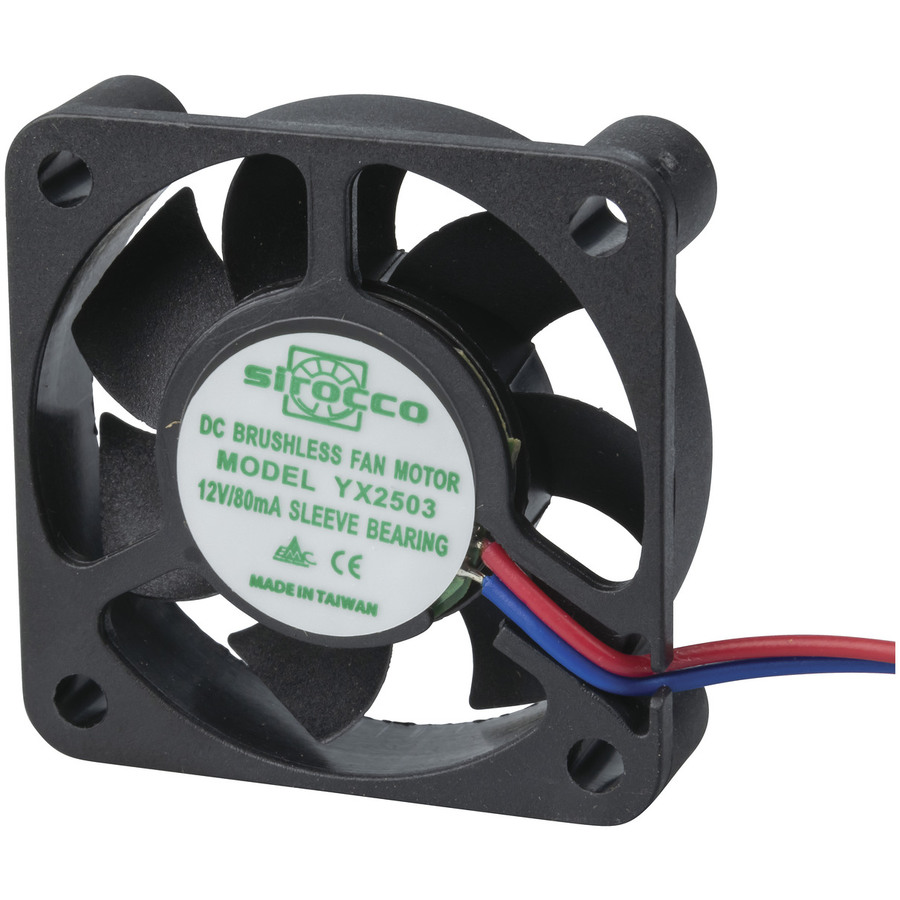

40mm 12V DC Thin Fan
40mm 12V DC Thin Fan

CAT. No. YX2503

40mm 12V DC Thin Fan
product image thumb

40mm 12V DC Thin Fan

$21.95
- Air volume - 0.16 (m3/min) 5.40(CFM) - Bearing system - Sleeve- Noise - 30 dB (A) - Speed - 6,000 rpm- Voltage - 12VDC - Current - 80 mA- Power - 0...
Available

Description

Suitable for computers, office machinery, appliances, copying machines, power units, amplifiers, automatic vending machines, air conditioning, medical machines etc.

  • Long life - 60,000 hours @ 25degC, 30,000 hours @ 40degC
  • Ball bearing: 100,000 hours @ 25degC
  • Can be mounted on suction or discharge side
  • Wiring will not burn out, even if rotating parts are restricted.

    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.16m³/min
    fan bearing type
    		 Sleeve
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 5.4ft³/min
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan RPM
    		 6000RPM
    fan noise
    		 30dB
    fan connector type
    		 Flyleads

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 80mA

    Product Mounting

    Mounting Method
    		 Through Hole

    Product Dimensions

    Length
    		 40mm
    Height
    		 40mm
    Depth
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 9.3cm
    Packaged Width
    		 9.3cm
    Packaged Weight
    		 0.092kg
    Packaged Volume
    		 0.328662l
    Packaged Height
    		 3.8cm

    Product Availability

    Availability
    		 Stocked item
