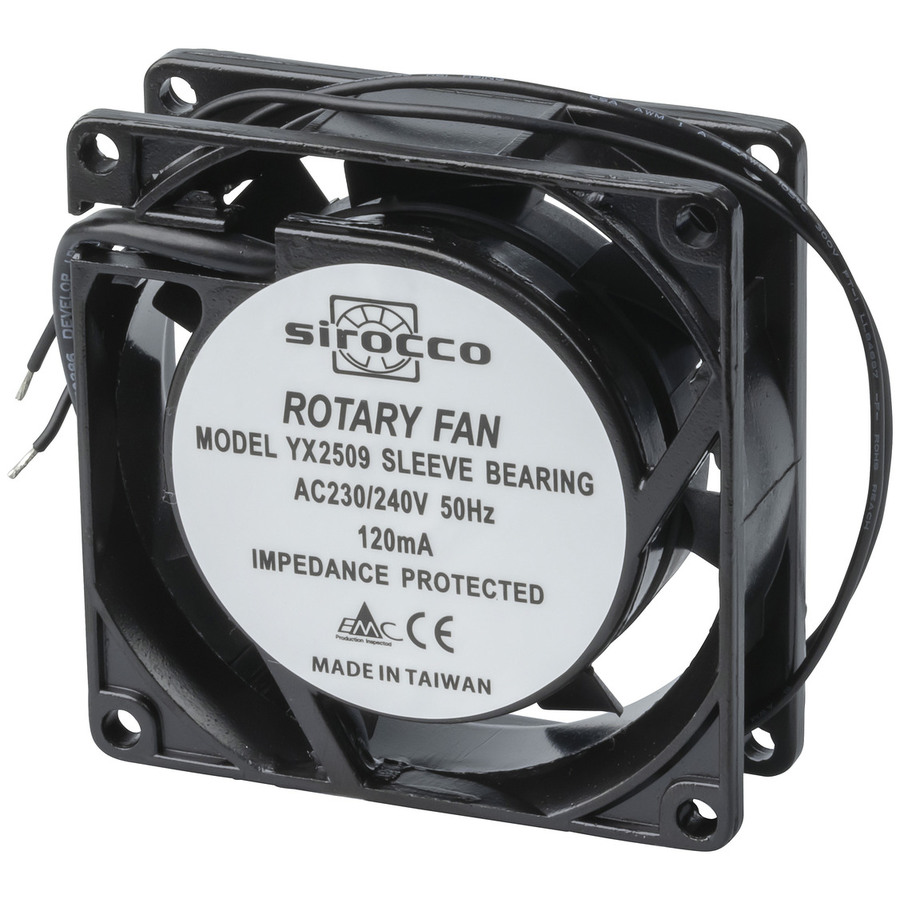

80mm 240V AC Thin Fan
80mm 240V AC Thin Fan

CAT. No. YX2509

80mm 240V AC Thin Fan
product image thumb

80mm 240V AC Thin Fan

$39.95
- Air volume 0.67 (m3/min) 23(CFM) - Bearing system Sleeve- Noise 33 dB (A) - Speed 2,800 rpm- Input 14 Watts - Current 120 mA- Size 80 x 80 x 25.4mm ...
Available

Description

240V Mains Power

Features:


- Input 14 Watts
- Current 120 mA
- Impeller Plastic, fibreglass filled
- Housing Die cast zinc and aluminium.


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 60000hr
    fan bearing type
    		 Sleeve
    fan number of wires
    		 2pc
    type of fan
    		 Axial
    fan noise
    		 33dB
    fan connector type
    		 Flyleads
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.67m³/min
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 23ft³/min
    Tachometer Output
    fan RPM
    		 2800RPM

    Mains powered

    Mains Max Current
    		 120mA
    Auto-select mains voltage
    Mains Item connection
    		 Bare Leads
    Mains lead included
    DA Cert Mains Lead SAA included
    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V
    Rated for US Mains
    Rated for AU Mains

    Product Mounting

    Mounting Method
    		 Through Hole

    Product Dimensions

    Length
    		 80mm
    Width
    		 80mm
    Depth
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 9.2cm
    Packaged Width
    		 9.2cm
    Packaged Weight
    		 0.27kg
    Packaged Volume
    		 0.321632l
    Packaged Height
    		 3.8cm

    Product Availability

    Availability
    		 Stocked item
