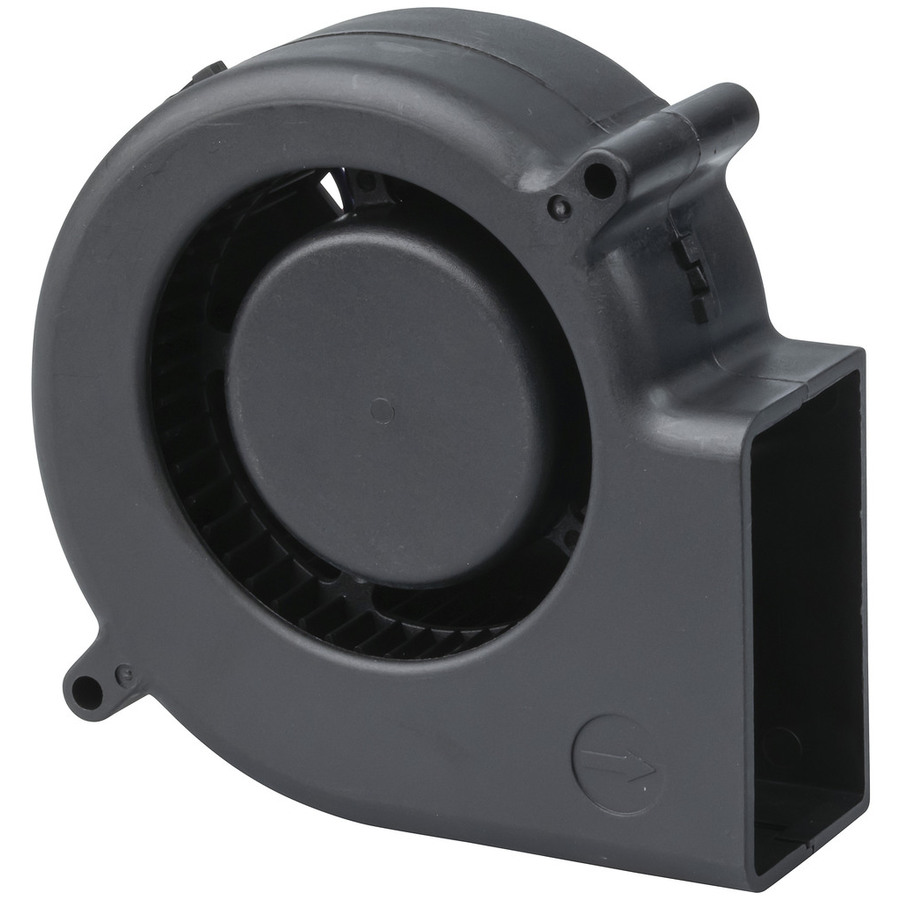

97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire
97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire

CAT. No. YX2532

97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire
product image thumb

97mm x 94mm 12V DC Blower Fan Ball Bearing - 2 wire

$45.95
Air Volume: 0.74 (m3/min), 26(CFM)Noise: 51dB(A)Input: 10.32 WattsSize: 97 x 94 x 33mmVoltage: 12VDCImpeller: Plastic, fibreglass filledHousing: Plast...
Available

Description

Features:

Input: 10.32 Watts
Impeller: Plastic, fibreglass filled
Housing: Plastic, fibreglass filled
Static pressure: 1.00 (Inch - H2O)


    Specifications

    Ventilation Fans

    Fan Operational Life at 25°C
    		 100000hr
    fan impeller material
    		 Plastic
    fan air volume cubic metres
    		 0.74m³/min
    fan bearing type
    		 Ball
    fan housing material
    		 Plastic
    fan air volume cubic feet
    		 26ft³/min
    fan number of wires
    		 2pc
    type of fan
    		 Blower
    fan RPM
    		 3600RPM
    fan noise
    		 51dB
    fan connector type
    		 Flyleads

    Power from Plugpack

    DC Plugpack Voltage
    		 12V
    Item Connection
    		 Flyleads
    DC Current Draw
    		 860mA

    Product Dimensions

    Length
    		 97mm
    Height
    		 94mm
    Width
    		 33mm

    Packaged Dimensions

    Packaged Length
    		 10.9cm
    Packaged Width
    		 10.6cm
    Packaged Weight
    		 0.196kg
    Packaged Volume
    		 0.623916l
    Packaged Height
    		 5.4cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    YX2532-dataSheetMain.pdf
