CAT. No. YX2574

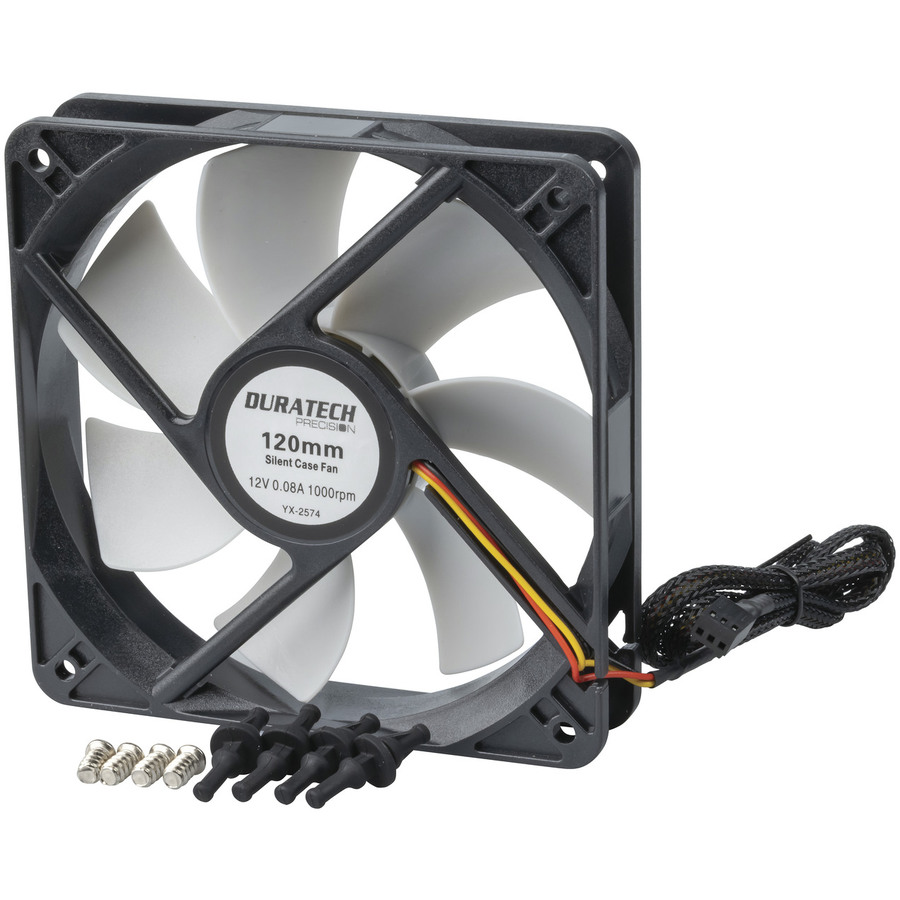

120mm Silent Hydrodynamic Bearing Case Fan
product image thumb

120mm Silent Hydrodynamic Bearing Case Fan

$42.5
Designed to provide additional airflow without increasing noise levels these fans have precisely balanced blades and long-life hydro-dynamic bearin. U...

Out of Stock

Description

Features:

Designed to provide additional airflow without increasing noise levels these fans have precisely balanced blades and long-life hydro-dynamic bearin. Ultra-low noise making these fans are perfect for a home theatre PC, or ventilating the amplifier wedged into your entertainment unit. To further improve silence, rubber fan mounts are included to eliminate fan motor vibrations inducing vibration noise. Rated to last for 50,000hrs at 40°C (even longer at 25°C).

Connections 3pin Molex Flyhead


    Specifications

    Ventilation Fans


    Fan Operational Life at 25°C
    100000hr
    fan bearing type
    Hydrodynamic
    fan number of wires
    3pc
    type of fan
    Axial
    fan noise
    20.2dB
    fan connector type
    Flyleads
    fan impeller material
    Polycarbonate
    fan air volume cubic metres
    1.05m³/min
    fan housing material
    Polycarbonate
    fan air volume cubic feet
    37ft³/min
    Tachometer Output
    fan RPM
    1000RPM

    Power from Plugpack


    DC Plugpack Voltage
    12V
    DC Current Draw
    80mA

    Product Dimensions


    Length
    120mm
    Width
    120mm
    Depth
    25mm

    Packaged Dimensions


    Packaged Length
    15.4cm
    Packaged Width
    13.5cm
    Packaged Weight
    0.148kg
    Packaged Volume
    0.6237l
    Packaged Height
    3cm

    Product Availability


    Availability
    Stocked item
