CAT. No. YX2584

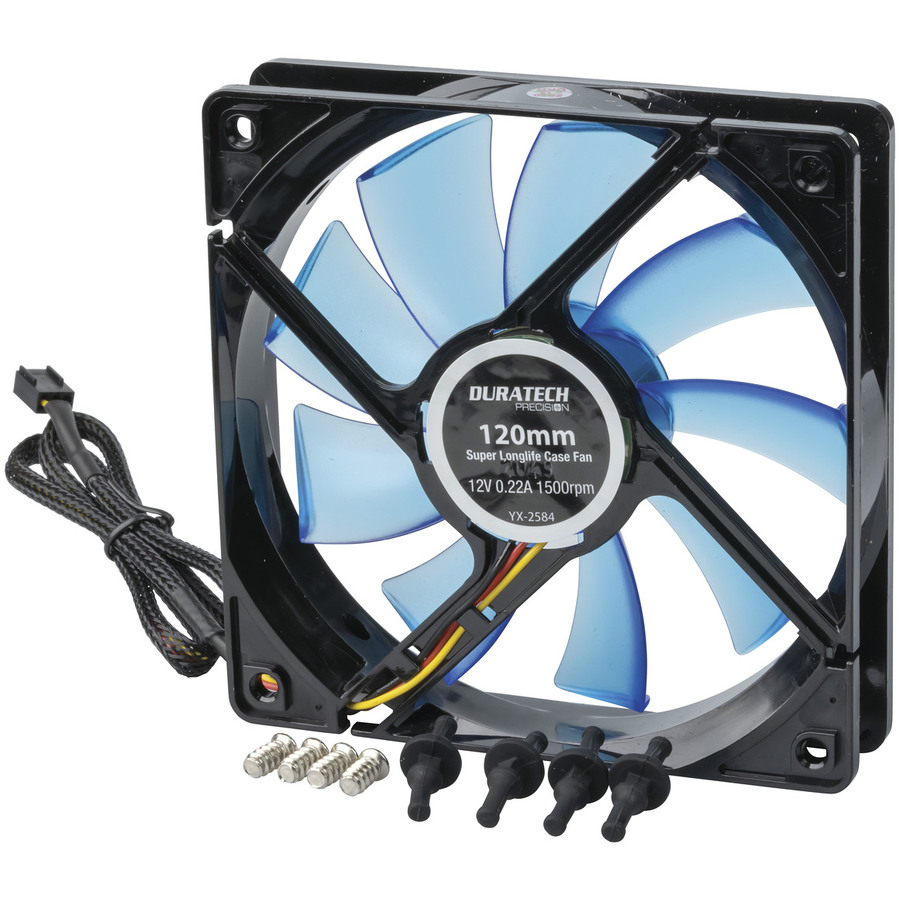

120mm Super Long-Life Low-Noise MagLev Bearing Case Fan
product image thumb

120mm Super Long-Life Low-Noise MagLev Bearing Case Fan

$39.95
Featuring a patented Nanoflux bearing that incorporates magnetic levitation technology and precise manufacturing, these premium quality fans ensure an...

Out of Stock

Description

5 Year Warranty

Features:

Featuring a patented Nanoflux bearing that incorporates magnetic levitation technology and precise manufacturing, these premium quality fans ensure an extremely long operational life of 100,000hrs at 40°C (even longer at 25°C). The unique self-lubricating maglev bearing design offers extremely long life, extremely low noise levels compared to traditional ball bearings, and also offers the ability for the UV light reActive fan impeller to be removed for cleaning. Dust and water proof to IP54 , these fans are sure to last even in harsh conditions.

Starting voltage 5VDC
Bearings Nanoflux magnetic levitation
Impellers UV reActive polycarbonate
Connections Flylead with 3 pin molex


    Specifications

    Ventilation Fans


    Fan Operational Life at 25°C
    100000hr
    fan bearing type
    Magnetic Levitation
    fan number of wires
    3pc
    type of fan
    Axial
    fan noise
    25dB
    fan connector type
    Flyleads
    fan impeller material
    Polycarbonate
    fan air volume cubic metres
    1.82m³/min
    fan housing material
    Polycarbonate
    fan air volume cubic feet
    64.3ft³/min
    Tachometer Output
    fan RPM
    1500RPM

    Power from Plugpack


    DC Plugpack Voltage
    12V
    DC Current Draw
    220mA

    Product Dimensions


    Length
    120mm
    Width
    120mm
    Depth
    25mm

    Packaged Dimensions


    Packaged Length
    15.5cm
    Packaged Width
    13.6cm
    Packaged Weight
    0.138kg
    Packaged Volume
    0.65348l
    Packaged Height
    3.1cm

    Product Availability


    Availability
    Stocked item
    Warranty: 60 Months
