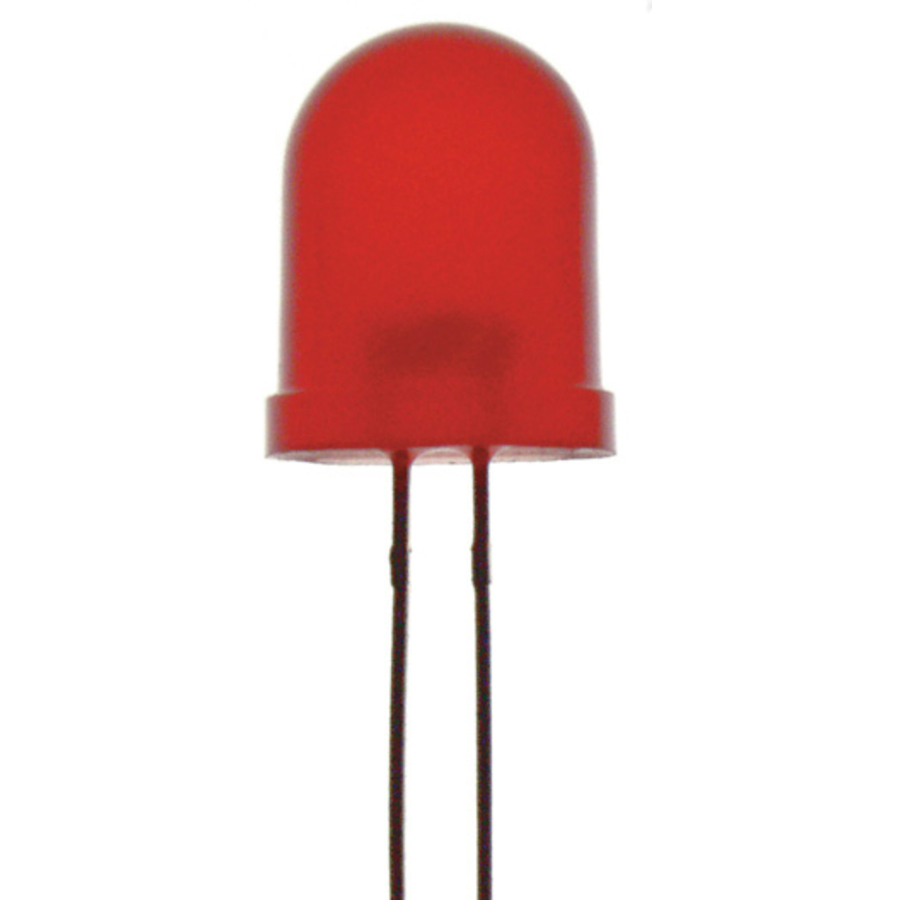

Red 3mm LED 40mcd Round Diffused
Red 3mm LED 40mcd Round Diffused

CAT. No. ZD0100

Red 3mm LED 40mcd Round Diffused
product image thumb

Red 3mm LED 40mcd Round Diffused

$0.75
Red 3mm light emitting diode at 40mCd brightness Round Diffused
Available

Description

LED

Red 3mm LED round diffused


    Specifications

    Product Dimensions

    Diameter
    		 3mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.35cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.35cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Light Wavelength
    		 650nm
    Viewing Angle
    		 45°
    Intensity
    		 40mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 15mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 680?
    Resistor for 9VDC
    		 470?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 15mA
    LED Type
    		 3mm Standard LED
    Resistor for 5VDC
    		 180?

    Active Component

    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
