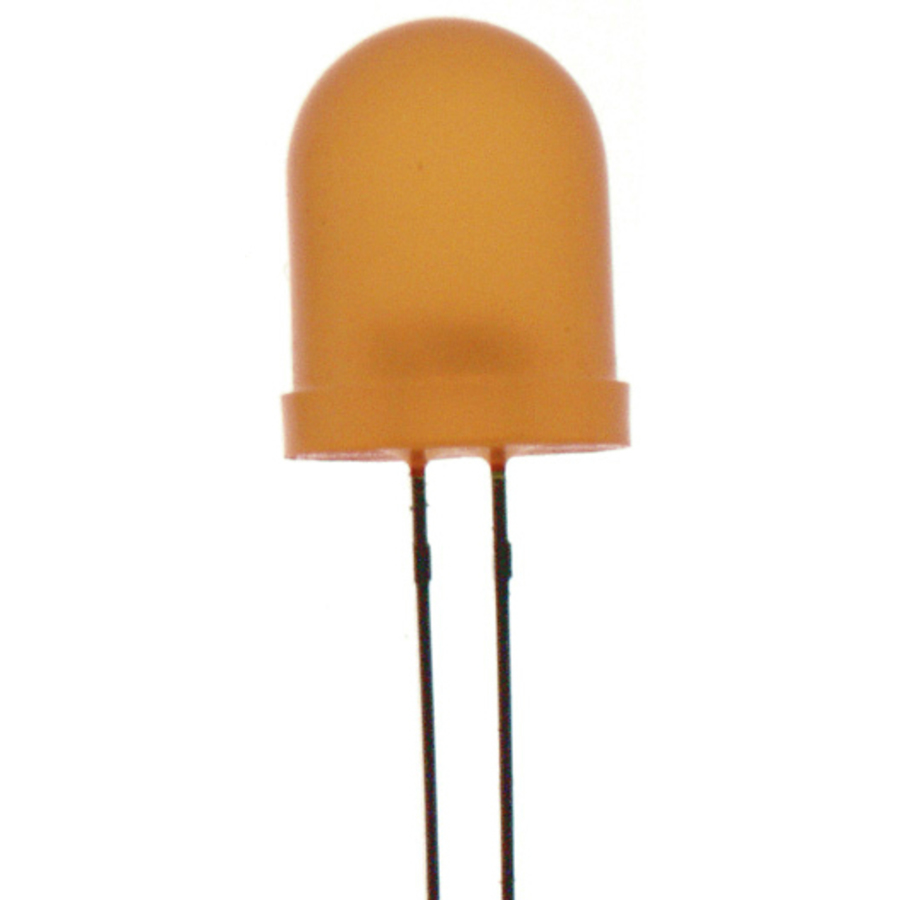

Orange 5mm LED 80mcd Round Diffused
Orange 5mm LED 80mcd Round Diffused

CAT. No. ZD0169

Orange 5mm LED 80mcd Round Diffused
product image thumb

Orange 5mm LED 80mcd Round Diffused

$0.75
Orange 5mm light emitting diode 80mcd Round Diffused
Available

Description

LED

Orange 5mm LED 80mcd Round Diffused

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 3.5cm

    LED Components

    Light Colour
    		 Orange
    Lens Type
    		 Diffused
    Light Wavelength
    		 635nm
    Viewing Angle
    		 40°
    Intensity
    		 10mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    Resistor for 12VDC
    		 510?
    Resistor for 9VDC
    		 360?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 150?

    Product Availability

    Availability
    		 Stocked item
