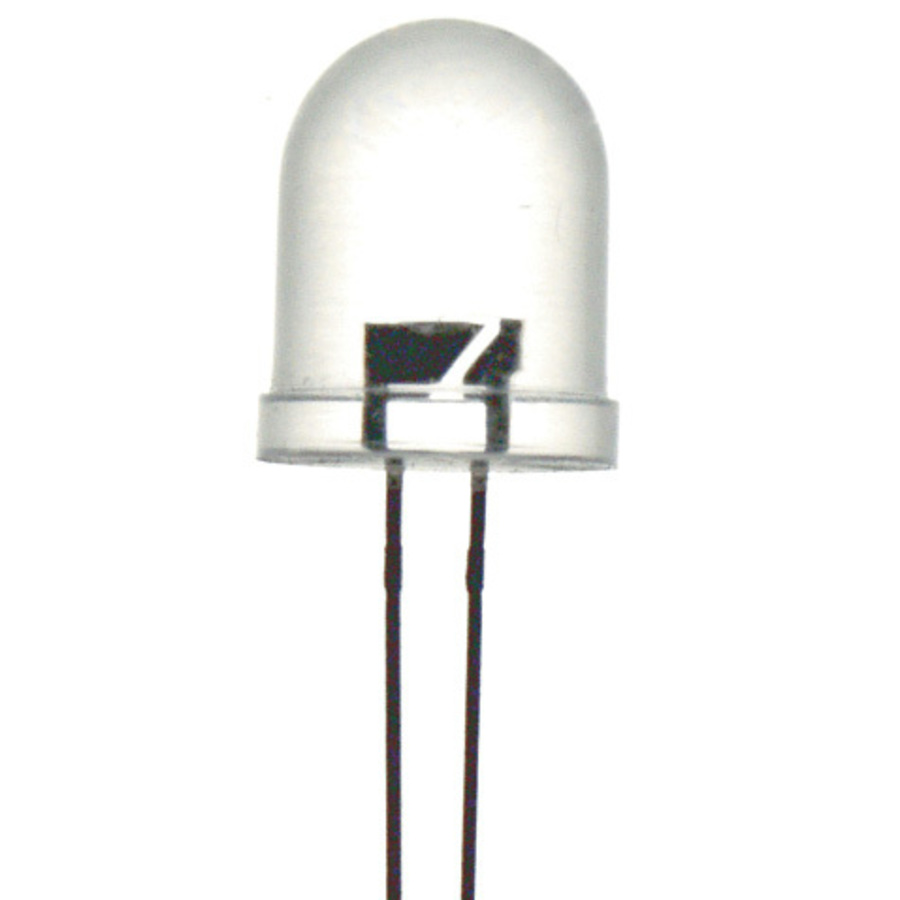

White 5mm LED 7000mcd Round Clear
White 5mm LED 7000mcd Round Clear

CAT. No. ZD0192

White 5mm LED 7000mcd Round Clear
product image thumb

White 5mm LED 7000mcd Round Clear

$3.95
White 5mm light emitting diode at 7000mcd brightness in Round Clear
Available

Description

LED

White 5mm LED 7000mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00105l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 White
    Lens Type
    		 waterclear
    Light Wavelength
    		 0.31nm
    Viewing Angle
    		 20°
    Intensity
    		 7000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 300?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Resistor for 5VDC
    		 91?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0192-dataSheetMain.pdf
