Green 10mm LED 51000mcd Round Clear
Green 10mm LED 51000mcd Round Clear

CAT. No. ZD0209

Green 10mm LED 51000mcd Round Clear
product image thumb

Green 10mm LED 51000mcd Round Clear

$3.5

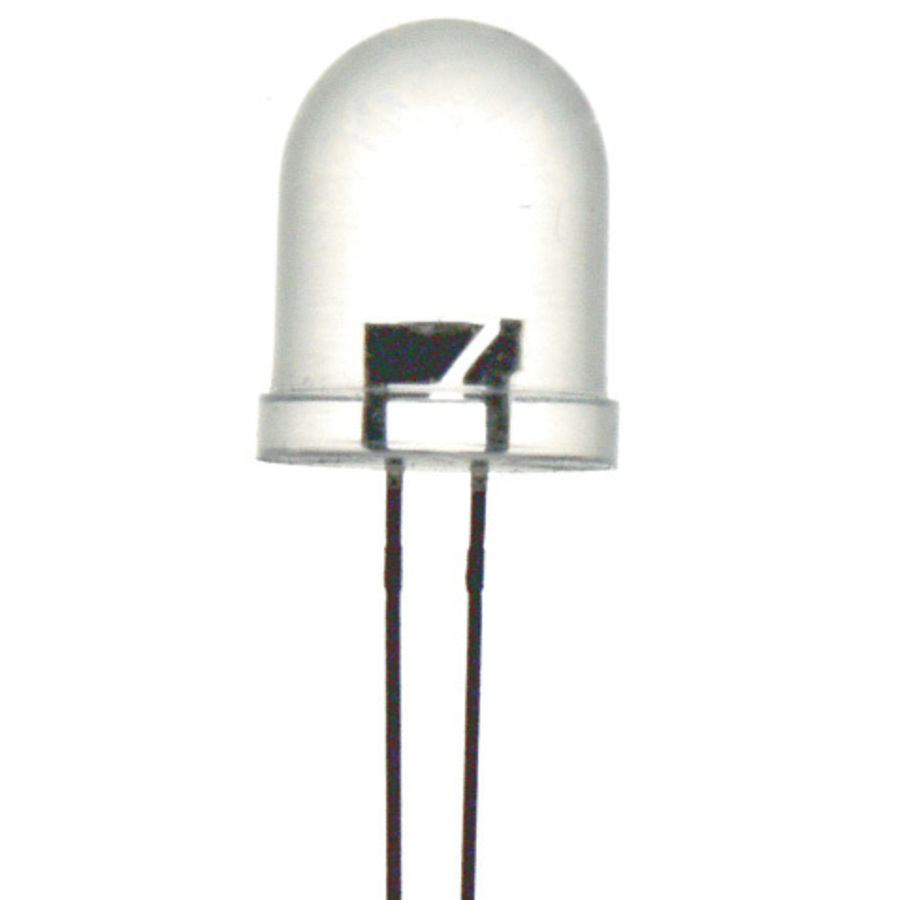

Green light emitting diode in 10mm Clear at 51000MCD brightness.

Out of Stock

Description

LED

Green LED 10mm Clear 51000MCD

    Specifications

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 waterclear
    Light Wavelength
    		 525nm
    Viewing Angle
    		 20°
    Intensity
    		 51000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 300?
    Illumination Type
    		 Single Colour
    LED Type
    		 10mm Standard LED
    Resistor for 5VDC
    		 100?

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 2 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Dimensions

    Diameter
    		 10mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm
