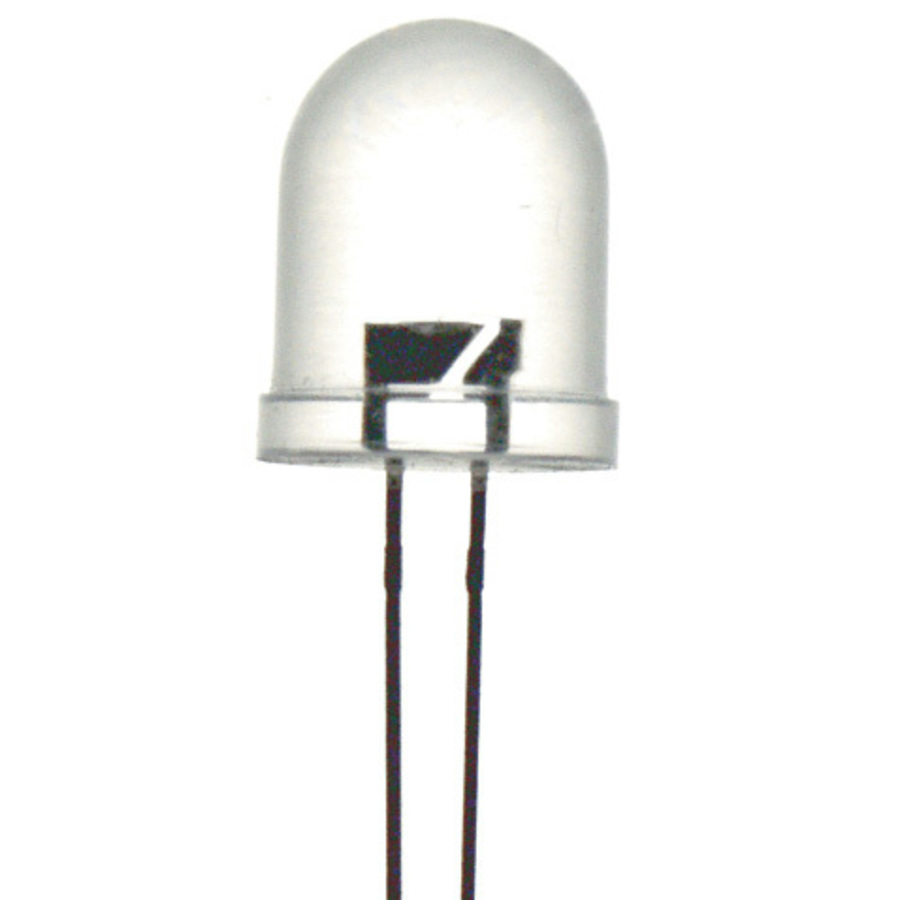

White 10mm LED 5000mcd Round Clear
White 10mm LED 5000mcd Round Clear

CAT. No. ZD0220

White 10mm LED 5000mcd Round Clear
product image thumb

White 10mm LED 5000mcd Round Clear

$3.95
White 10mm light emitting diode 5000mcd Round Clear
Available

Description

LED

White 10mm LED 5000mcd Round Clear

    Specifications

    Product Dimensions

    Diameter
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 1cm

    LED Components

    Light Colour
    		 White
    Lens Type
    		 waterclear
    Light Wavelength
    		 0.25nm
    Viewing Angle
    		 30°
    Intensity
    		 5000mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 3.2V
    Resistor for 12VDC
    		 430?
    Resistor for 9VDC
    		 300?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 10mm Standard LED
    Resistor for 5VDC
    		 91?

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0220-dataSheetMain.pdf
