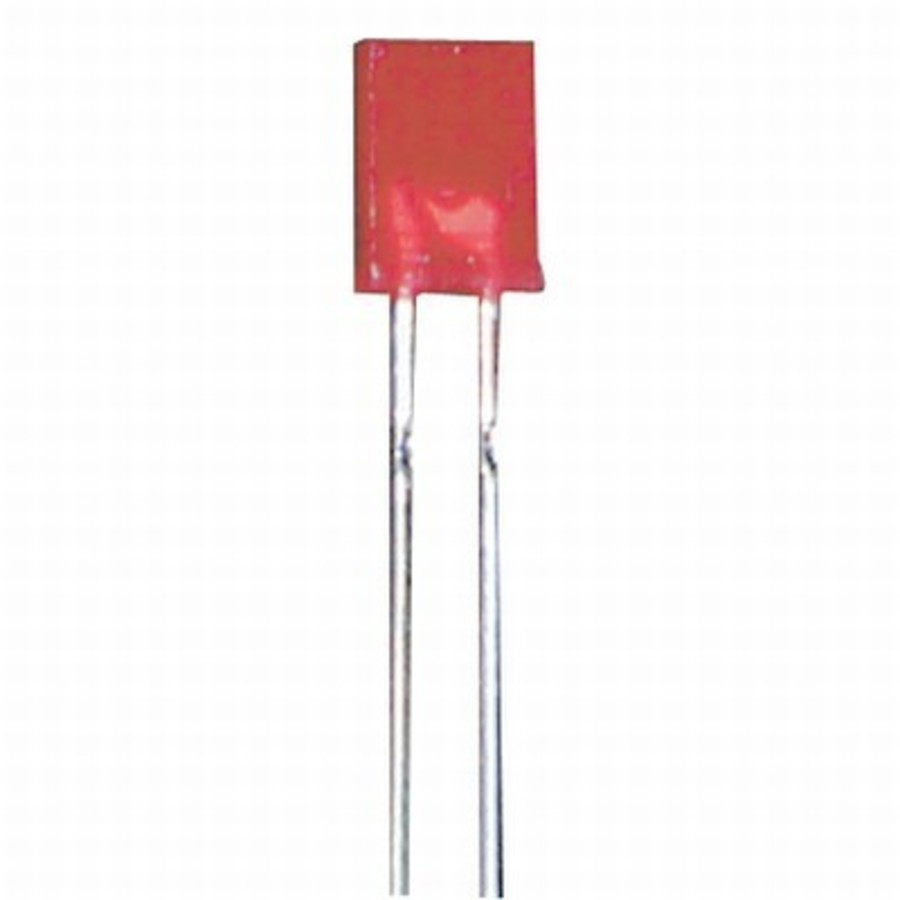

Red 5x2mm LED 5mcd Rectangular Diffused
Red 5x2mm LED 5mcd Rectangular Diffused

CAT. No. ZD0230

Red 5x2mm LED 5mcd Rectangular Diffused
product image thumb

Red 5x2mm LED 5mcd Rectangular Diffused

$0.5
Red 5x2mm light emitting diode 5mcd Rectangular Diffused

Out of Stock

Description

LED

Red 5x2mm LED 5mcd Rectangular Diffused

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Light Wavelength
    		 643nm
    Viewing Angle
    		 155°
    Intensity
    		 5mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 330?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 Rectangular LED
    Resistor for 5VDC
    		 130?

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Projects

    ZD0230-dataSheetMain.pdf
