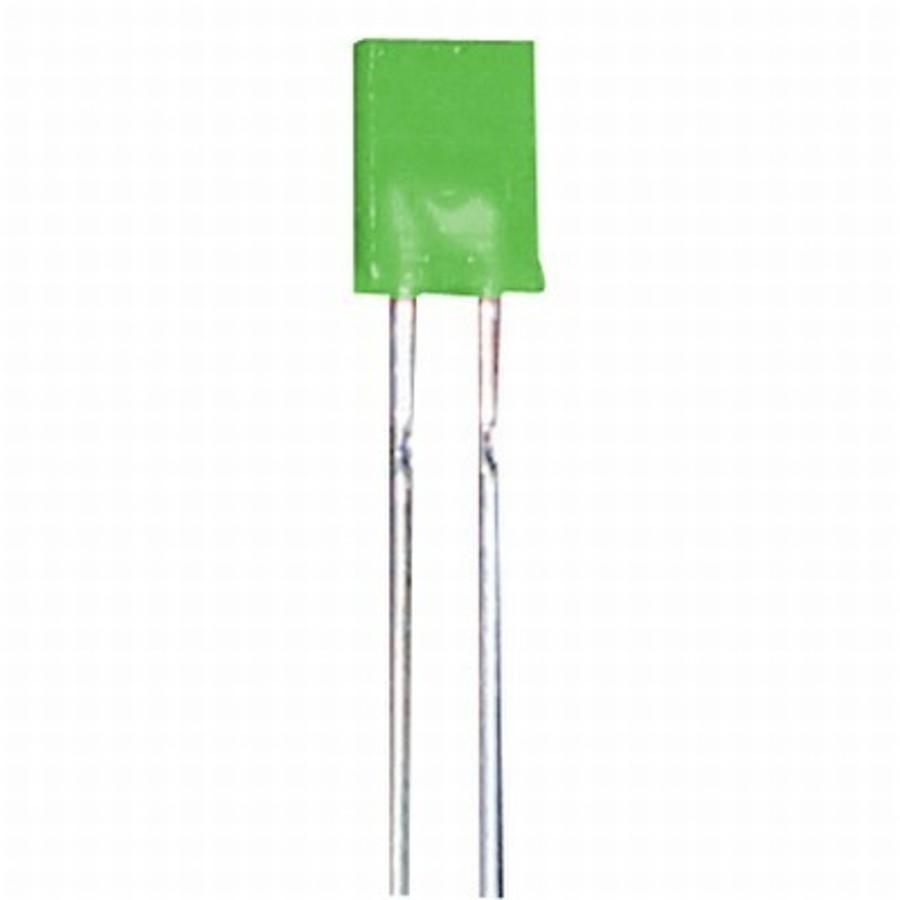

Green 5x2mm LED 15mcd Rectangular Diffused
Green 5x2mm LED 15mcd Rectangular Diffused

CAT. No. ZD0232

Green 5x2mm LED 15mcd Rectangular Diffused
product image thumb

Green 5x2mm LED 15mcd Rectangular Diffused

$0.5
Green 5x2mm light emitting diode 15mcd Rectangular Diffused
Available

Description

LED

Green 5x2mm LED 15mcd Rectangular Diffused

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.2cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 3.5E-4l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Light Wavelength
    		 573nm
    Viewing Angle
    		 155°
    Intensity
    		 15mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2.3V
    Resistor for 12VDC
    		 470?
    Resistor for 9VDC
    		 330?
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 20mA
    LED Type
    		 Rectangular LED
    Resistor for 5VDC
    		 130?

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Projects

    ZD0232-dataSheetMain.pdf
