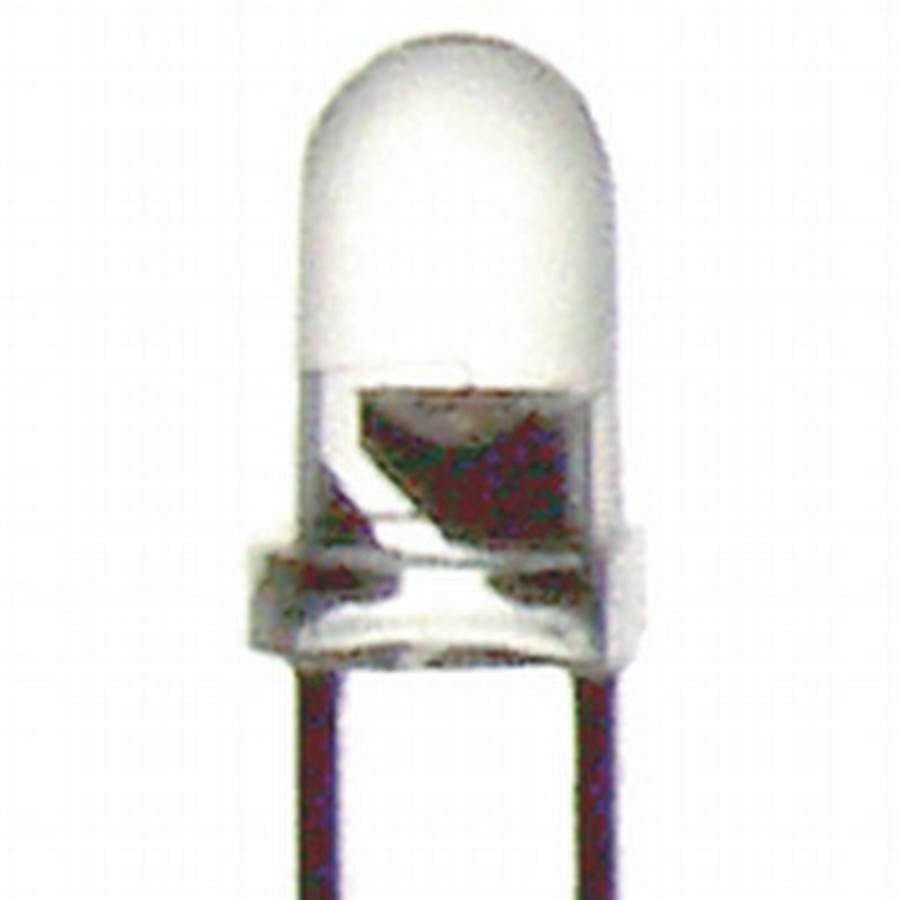

Bicolour RedGreen 10mm LED 10mcd Round Diffused
Bicolour RedGreen 10mm LED 10mcd Round Diffused

CAT. No. ZD0255

Bicolour RedGreen 10mm LED 10mcd Round Diffused
product image thumb

Bicolour RedGreen 10mm LED 10mcd Round Diffused

$1.45
Tricolour Red/Green 10mm LED 10mcd Round Diffused
Available

Description

LED

Features:
Bi Colour Red Green

Wavelength (nm) 625(R) 570(G)
VF Typical (V) 2.0(R) 2.1(G)


    Specifications

    Product Dimensions

    Diameter
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.004l
    Packaged Height
    		 4cm

    LED Components

    Light Colour
    		 Red, Green
    Lens Type
    		 waterclear
    Illumination Type
    		 Bi Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 10mm Standard LED
    Viewing Angle
    		 75°
    Intensity
    		 10mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZD0255-dataSheetMain.pdf
