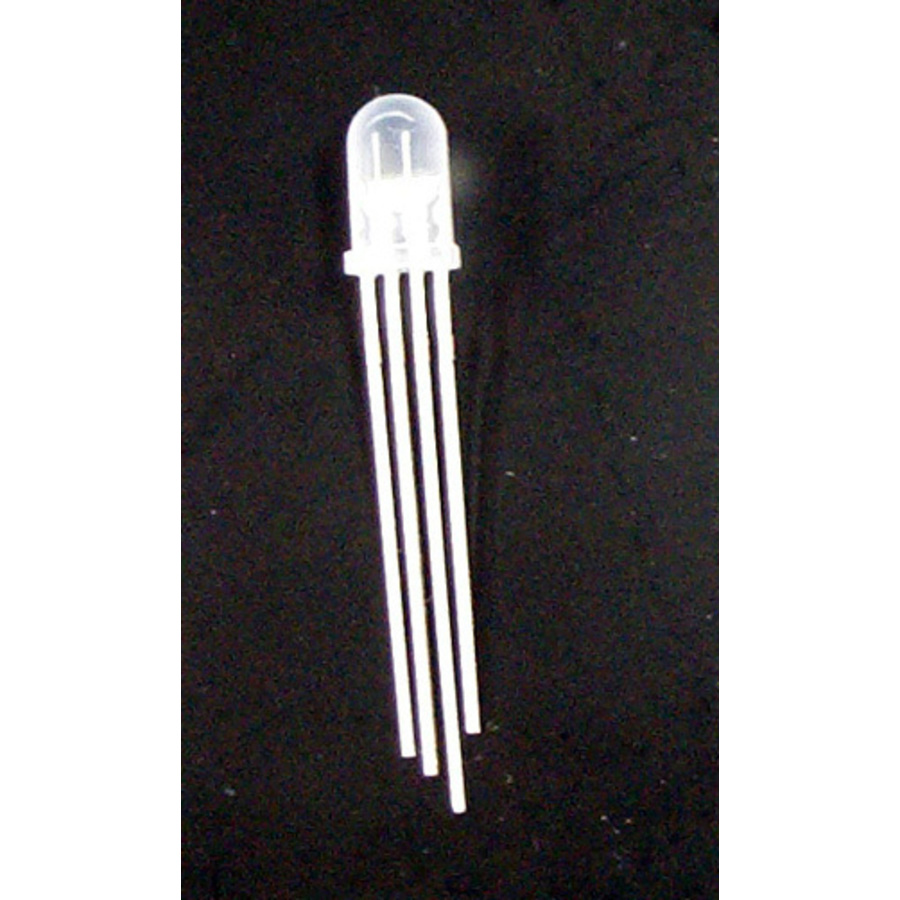

Tricolour RGB 5mm LED 600-1000mcd Round Diffused
Tricolour RGB 5mm LED 600-1000mcd Round Diffused

CAT. No. ZD0270

Tricolour RGB 5mm LED 600-1000mcd Round Diffused
product image thumb

Tricolour RGB 5mm LED 600-1000mcd Round Diffused

$7.45
Tri-colour Red/Green/Blue LED with common cathode Illuminate all three elements to acheive any colour combination 5mm Diameter
Available

Description

LED

Red, Green, Blue tri-colour LED with common cathode to allow simultaneous use of all three elements. Illuminate the elements to different levels and you can acheive almost any colour.

Specifications:
• Colour: Red, Green, and Blue with common cathode
• Size: 5mm
• Lens: Diffused
• Viewing Angle: 45 degrees
• Wavelength: Red 625nm, Green 520nm, Blue 470nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: Red 2.0V, Green/Blue 3.5V
• Luminous Intensity: Red 600mcd, Green 1000mcd, Blue 200mcd
• Continuous Maximum Current: 30mA


    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    LED Components

    Light Colour
    		 Red, Green, Blue
    Lens Type
    		 Diffused
    Illumination Type
    		 Tri Colour, Common Cathode
    Light Wavelength
    		 470nm-625nm
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    Viewing Angle
    		 45°
    Intensity
    		 200mcd-1000mcd, 200mcd, 1000mcd, 600mcd
    I<sub>f (typ)</sub> - Typical Forward Current
    		 20mA

    LED Section Details

    Resistor at 5V Supply
    		 75?, 75?, 150?
    Intensity
    		 200mcd-1000mcd, 200mcd, 1000mcd, 600mcd
    Typical Voltage
    		 3.5V, 3.5V, 2V
    Resistor at 12V Supply
    		 430?, 430?, 510?
    Wavelength
    		 470nm, 520nm, 625nm
    Resistor at 9V Supply
    		 270?, 270?, 360?
    Colour Section
    		 Blue, Green, Red

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 4 count
    component package
    		 radial
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
