CAT. No. ZD0576

5m Ultra Bright IP67 Weatherproof LED Flexible Strip Light
product image thumb
product image thumb
product image thumb

5m Ultra Bright IP67 Weatherproof LED Flexible Strip Light

$99.95
Versatile fully waterproof 5m flexible LED strip - Ideal for vehicles, around the home, or in the workshop - 12VDC 5A power required - 3750 lumen output
Available

Description

1 Year Warranty
LED

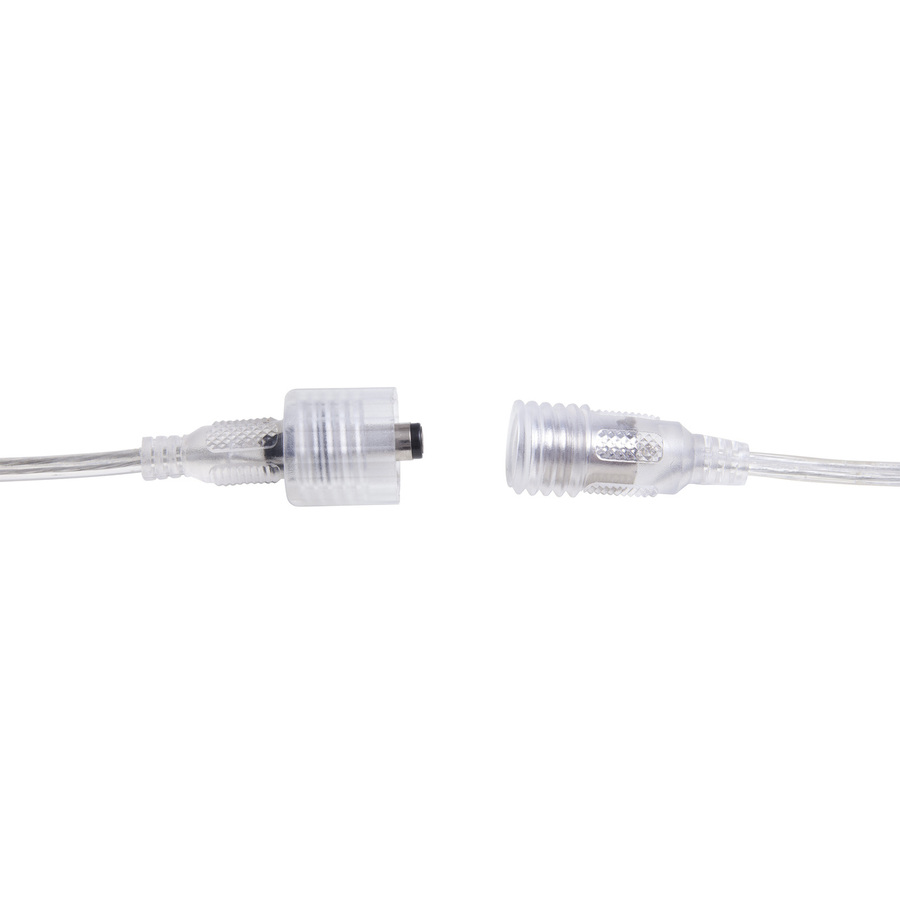

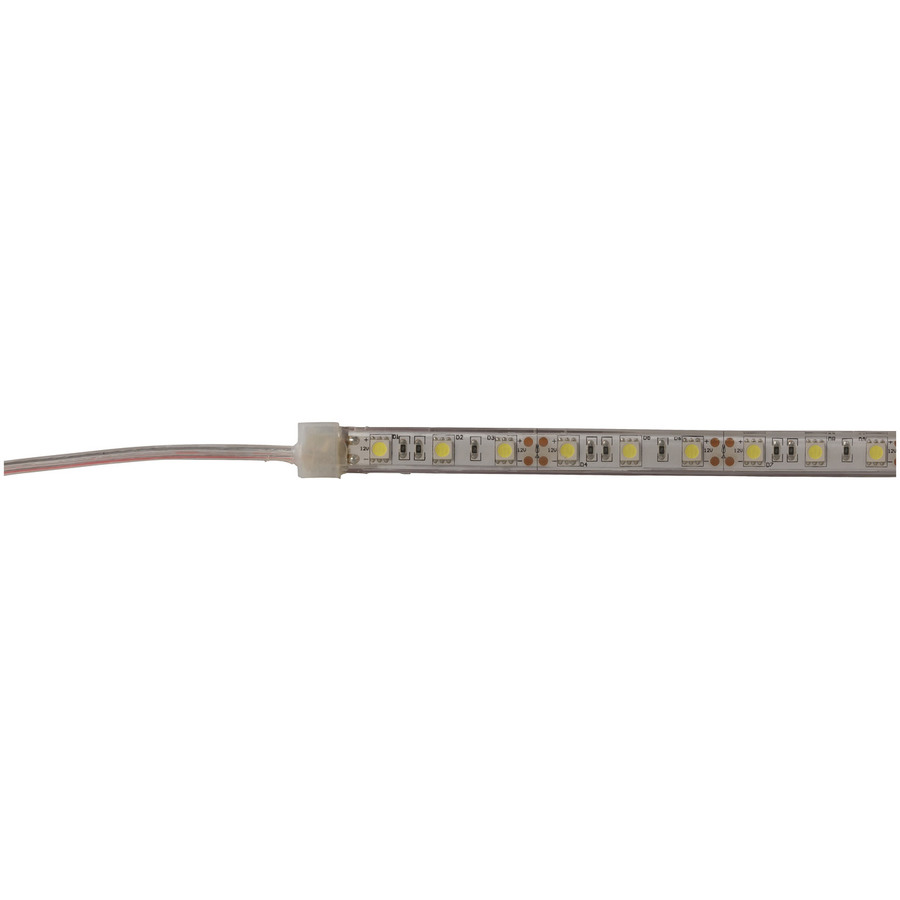

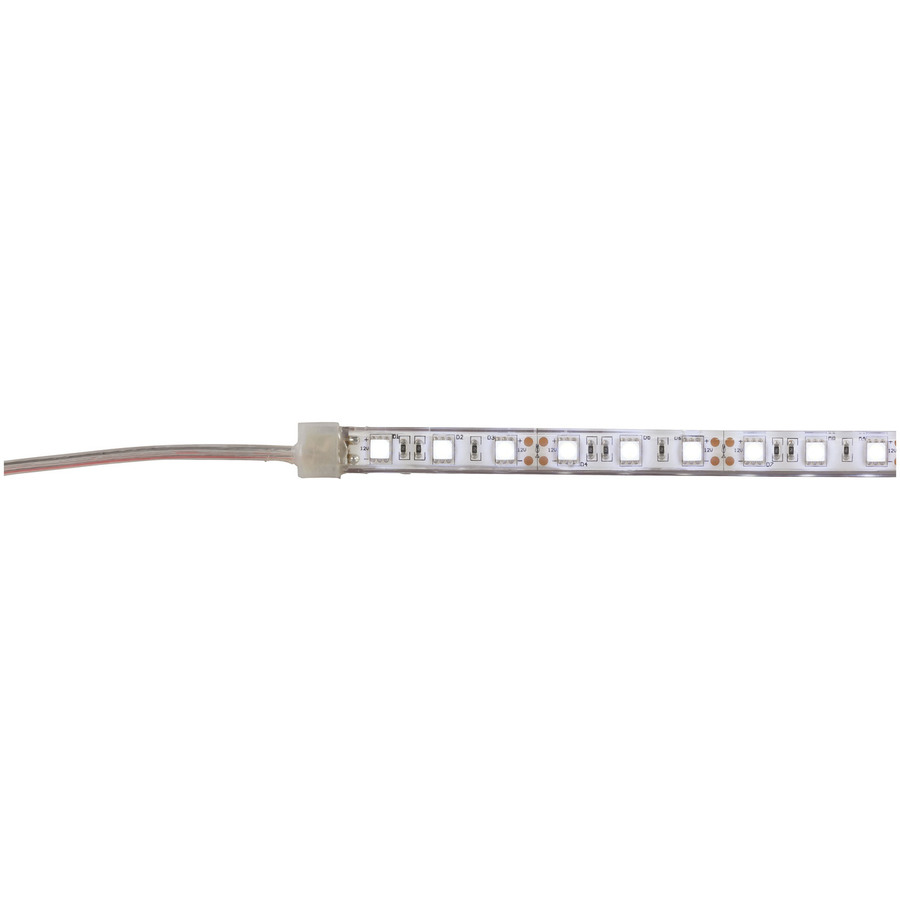

Fully waterproof yet flexible, this versatile LED strip is made from an array of 300 ultra high brightness 5050 SMD-type LEDs. Perfect for any outdoor application needing some bright, reliable lighting. Everything’s encapsulated in a protective casing to keep the dust and water out. Weatherproof male / female connections are provided for easy installation, simply hook the flylead end to a suitable 12V power source and plug in the strip.

Features:
• 850 lumens per metre (3750lm total)
• Self-adhesive backing
• Sold as a single 5m length
• Can be cut to shorter lengths

Handy Tip LED Strip Lighting

Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.

    Specifications

    Lighting Details


    Illuminated Colour
    Cool white
    LED Quantity
    300pc
    LED Type
    5050 SMD
    LED Connection
    SMD
    LED replaceable

    Light Output


    Light Rating Lumens
    4250lm

    Product Mounting


    Mounting Method
    Self Adhesive

    Ingress Protection Rating


    IP Rating
    IP67
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    7 - Immersion up to 1m

    Product Dimensions


    Length
    5m
    Height
    5mm
    Width
    13mm

    Power Source Details


    DC Voltage
    12V
    Connection Size
    2.1mm
    Connection Details
    Supplied with weatherproof 2.1mm DC plug and matching socket flylead, DC plug can be joined to DC plug on PSU output with suitable adaptor (sold separately)
    Item connection
    Flyleads, Barrel Plug
    DC Current Draw
    5A

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    30.3cm
    Packaged Width
    24.4cm
    Packaged Weight
    0.566kg
    Packaged Volume
    2.883348l
    Packaged Height
    3.9cm
    Warranty: 12 Months
