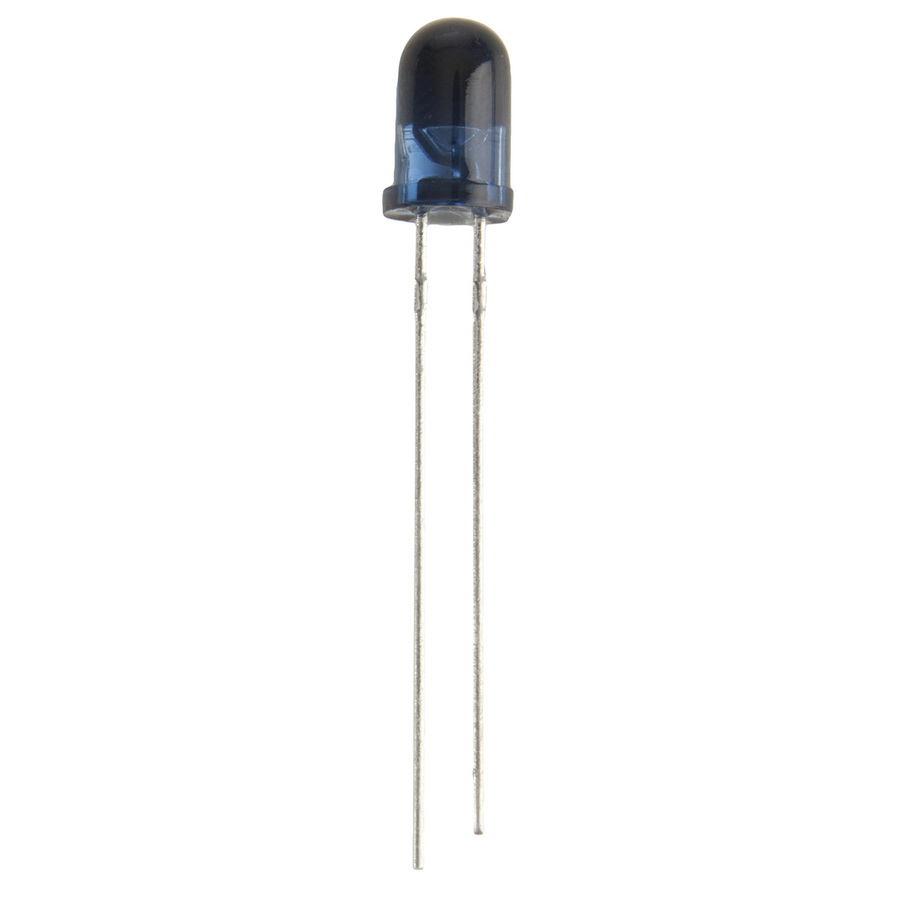

5mm Infrared Transmitting LED
5mm Infrared Transmitting LED

CAT. No. ZD1945

5mm Infrared Transmitting LED
product image thumb

5mm Infrared Transmitting LED

$2.45
5MM EMITTING DIODELooks like a 5mm LED and has a blue transparent lens.Specifications:- Forward Current (If): 50mA max - Peak forward current (Ip): ...
Available

Description

LED

5MM EMITTING DIODELooks like a 5mm LED & has a blue transparent lens.

Features:

- Viewing Angle: 30°

- Peak Spectral Wavelength(IR): 940nm @ 20mA

- Spectral Bandwidth (DI): 50nm@20mA

- Material: GaAs


    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00126l
    Packaged Height
    		 0.6cm

    Active Optocoupler

    Power Dissipation
    		 100
    Reverse Voltage
    		 5V
    Optocoupler Operating Current
    		 50mA
    Forward Voltage
    		 1.20000000

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles
      Projects

    ZD1945-dataSheetMain.pdf
