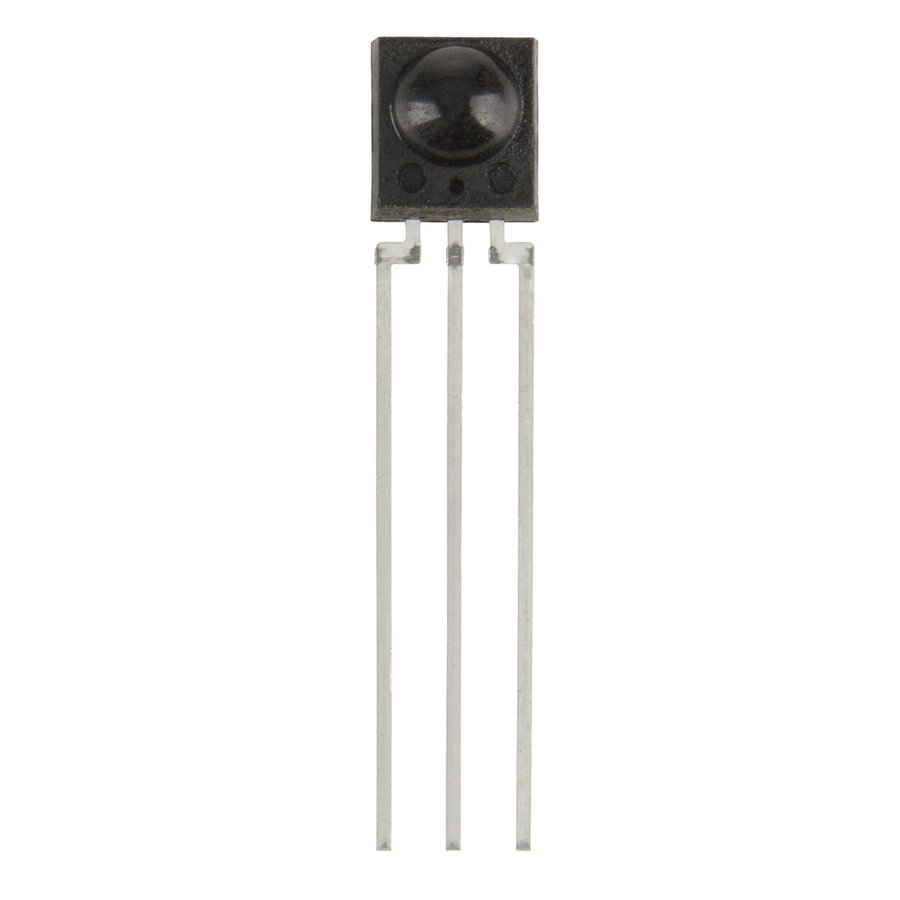

5mm Infrared Receiver
5mm Infrared Receiver

CAT. No. ZD1952

5mm Infrared Receiver
product image thumb

5mm Infrared Receiver

$8.95
It consists of an infra- red photo diode and signal processing circuits, (amplifier, limiter, bandpass filter and demodulator). It will detect the m...

Out of Stock

Description

LED

It consists of an infra- red photo diode and signal processing circuits, (amplifier, limiter, bandpass filter & demodulator). It will detect the modulated pulse from an IR Remote Control & give a TTL level output.

Features:

- Arrival distance Length: 12m typ.
- Center Frequency: 37.9kHz
- Directivity characteristics: Horizontal: 42° Vertical: 37°

Handy Tip Frequency Response Curve

Normalised Frequency Response Curve of LED Capability

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    ZD1952-dataSheetMain.pdf
