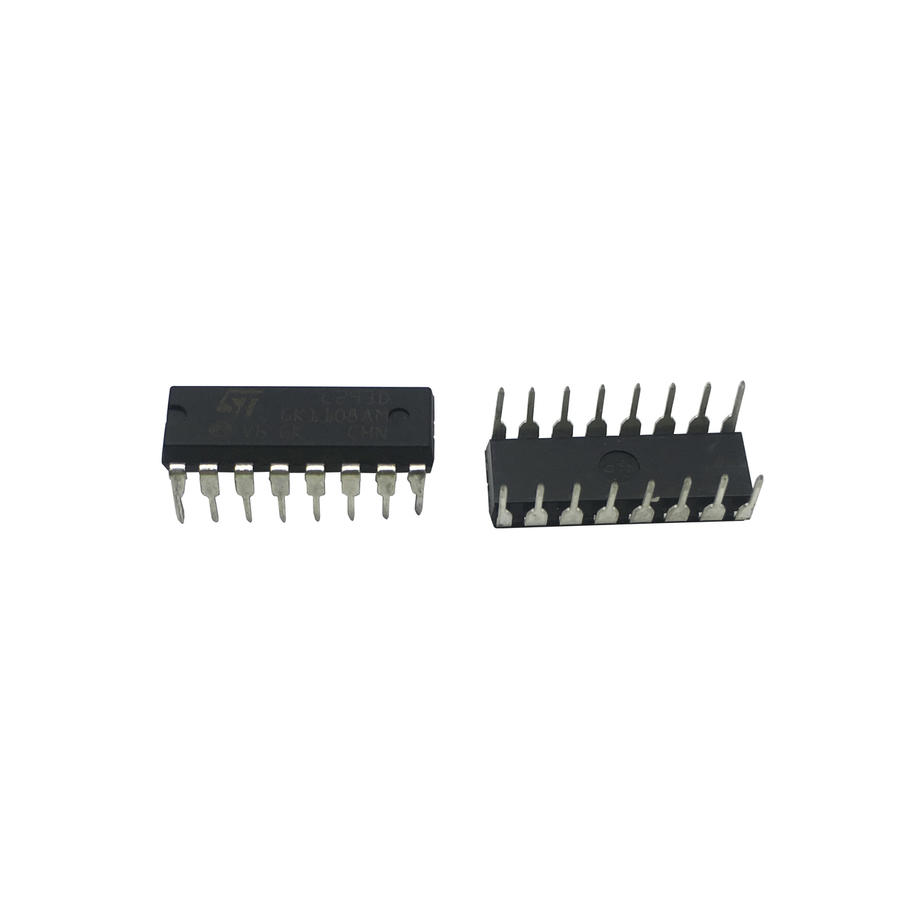

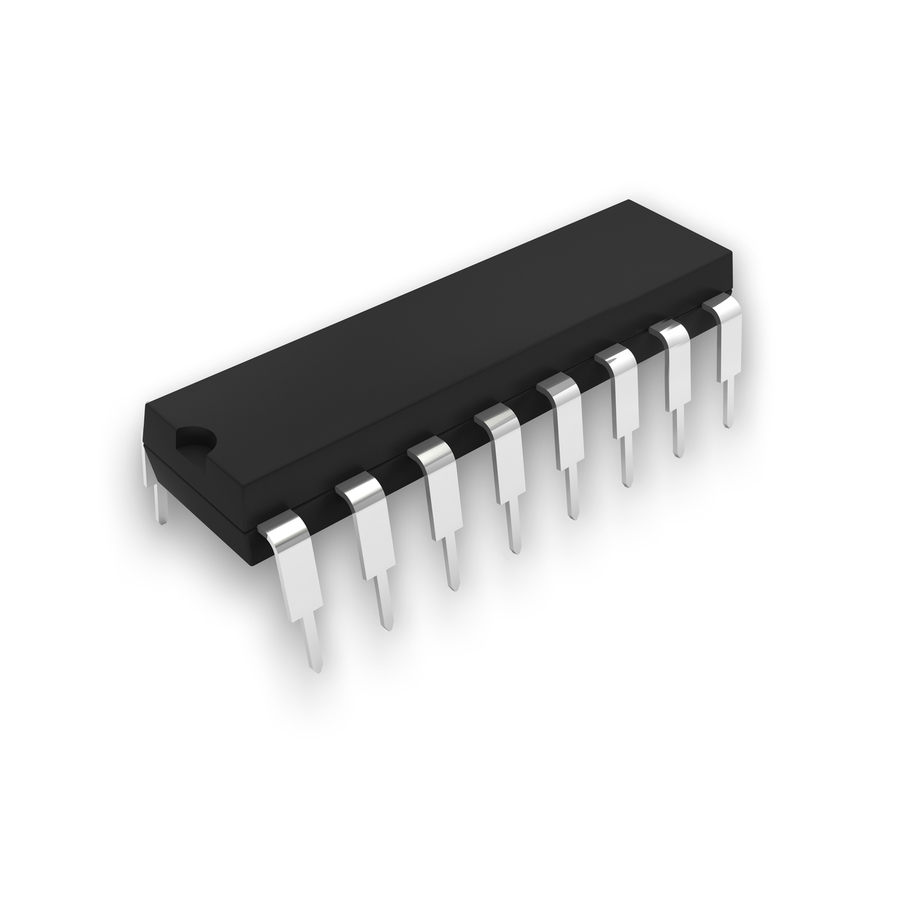

L293D Dual Full Bridge Motor Driver IC
L293D Dual Full Bridge Motor Driver IC
L293D Dual Full Bridge Motor Driver IC

CAT. No. ZK8880

L293D Dual Full Bridge Motor Driver IC
product image thumb
product image thumb

L293D Dual Full Bridge Motor Driver IC

$6.95
Capable of providing four high power outputs.

Out of Stock

Description

The L293D quad half H-bridge motor driver is capable of providing four high power outputs, ideal for driving a stepper motor, or two DC motors. Suitable for 3.3V or 5V logic.

Features:
 • 600mA current drive per channel
 • 36V maximum supply voltage
 • 5kHz maximum PWM frequency


    Specifications

    Integrated Circuit (IC)

    IC supply voltage
    		 36V

    Active Component

    Active marking code type
    		 Unique product marking
    Active mount type
    		 Through Hole
    Active number of legs
    		 16 count
    unique marking code
    		 L293D
    component package
    		 DIL
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0016l
    Packaged Height
    		 0.8cm
