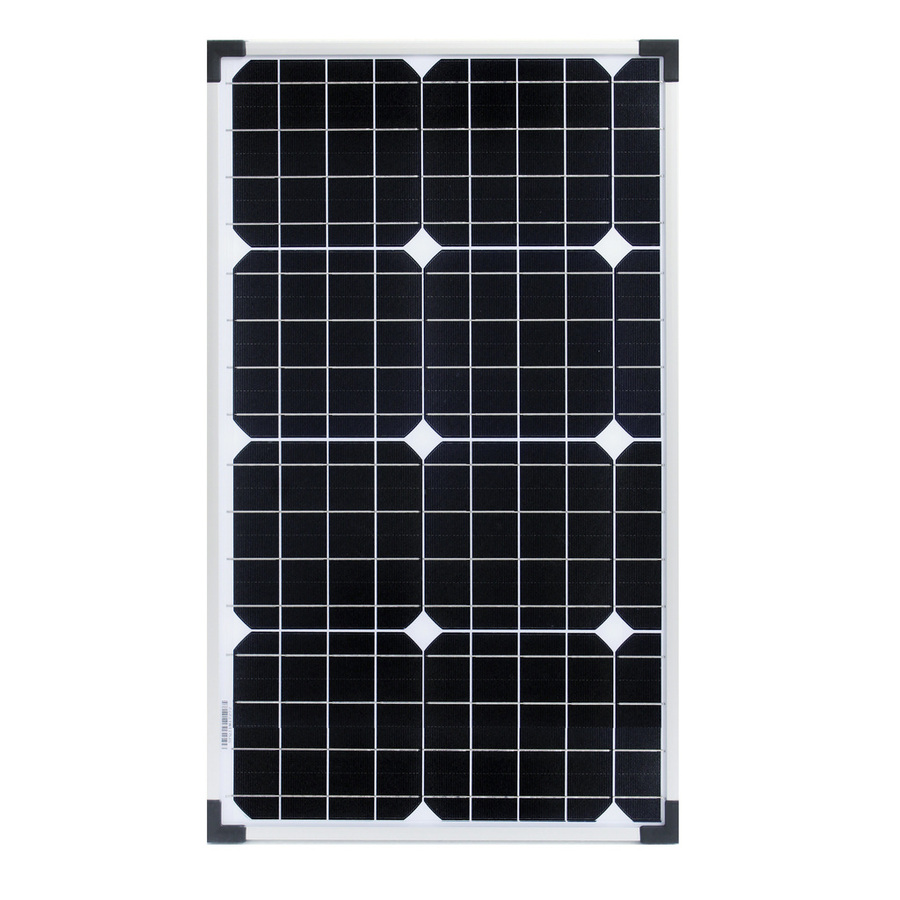

12V 40W Monocrystalline Solar Panel
12V 40W Monocrystalline Solar Panel
12V 40W Monocrystalline Solar Panel
12V 40W Monocrystalline Solar Panel

CAT. No. ZM9056

12V 40W Monocrystalline Solar Panel
product image thumb
product image thumb
product image thumb

12V 40W Monocrystalline Solar Panel

$119

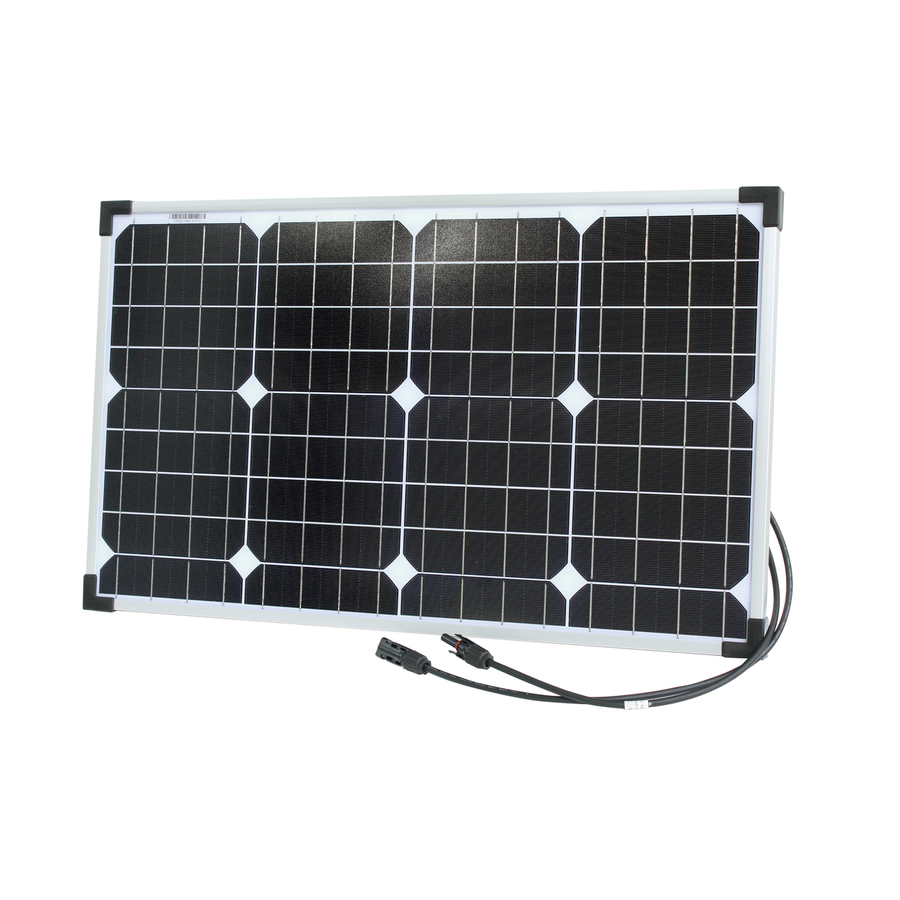

Smaller, more efficient and more affordable than ever, this durable panel offers 40W output power and comes fitted with industry standard MC4 connectors.
Available

Description

25 Year Power Output Warranty
5 Year Construction Warranty

High performance monocrystalline panels designed for environmental conditions with a durable anodised aluminium frame and 3.2mm low iron tempered glass. Junction box included.






    Specifications

    Solar Panel

    Bypass Diode Included
    Current at Power Max
    		 2.33A
    Solar panel type
    		 monocrystalline
    Voltage at Power Max
    		 17.2V
    Cover Material
    		 tempered glass
    Power Connector
    		 4mm PV Connector (MC4 Style)
    Mounting Method
    		 Standard Universal
    Open Circuit Voltage
    		 21.5V
    Short Circuit Current
    		 2.5A
    Mounting Material
    		 aluminium

    DC Voltage Rating

    DC Voltage
    		 12V

    Power Rating

    Continuous Power
    		 40W

    Product Dimensions

    Length
    		 664mm
    Cable length
    		 0.9m
    Height
    		 25mm
    Width
    		 408mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 68cm
    Packaged Width
    		 42cm
    Packaged Weight
    		 3.502kg
    Packaged Volume
    		 11.424l
    Packaged Height
    		 4cm
    Warranty: 60 Months
    Special terms or exclusions: 25 year limited warranty applies. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years and warrants that the electrical power will remain above 80% for 25 years.

    Downloads

      Articles
      Articles

    ZM9056-dataSheetMain.pdf
