CAT. No. ZM9064

12V 130W Monocrystalline Solar Panel
product image thumb
product image thumb
product image thumb

12V 130W Monocrystalline Solar Panel

$249
Smaller, more efficient and more affordable than ever, this durable panel offers 130W output power and comes fitted with industry standard MC4 connectors.
Available

Description

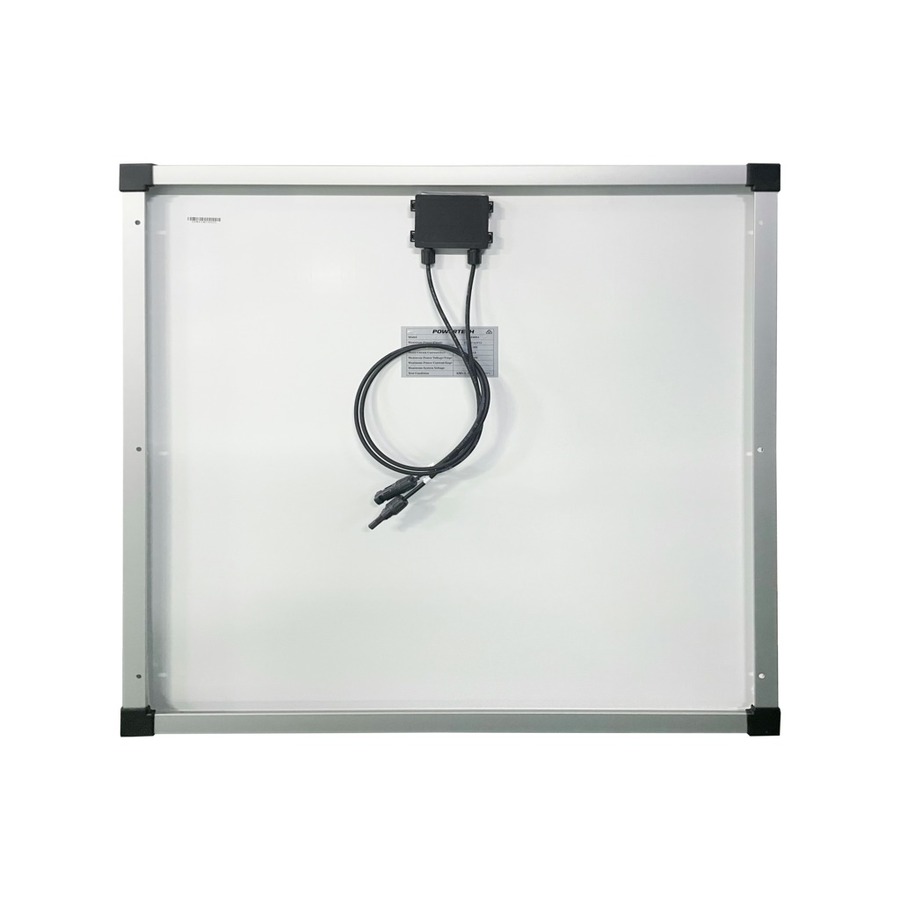

This high quality panel has much higher efficiency and power output compared to previous models with a more compact size. This means you can get more power without having to add more panels, brackets, and hardware to get more power from your solar installation. Provides excellent performance under low light environments, producing 2-3% more power and a higher kWh/kW ratio compared to older monocrystalline designs. The durable anodised aluminium frame holds the tempered glass panel, which features an anti-reflective and self-cleaning glass surface to reduce power loss from dirt and dust. The junction box and bypass diodes stop the panel from overheating and suffering from the “hot spot effect”. PV connectors on a 900mm lead make them easy to install. A fantastic panel with minimal ongoing maintenance and compatible with industry-standard inverters and mounting systems.

25 year limited warranty
All Powertech monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.

    Specifications

    Solar Panel


    Current at Power Max
    7.22A
    Solar panel type
    monocrystalline
    Voltage at Power Max
    18V
    Cover Material
    tempered glass
    Power Connector
    4mm PV Connector (MC4 Style)
    Open Circuit Voltage
    21.5V
    Short Circuit Current
    7.75A

    DC Voltage Rating


    DC Voltage
    12V

    Product Availability


    Availability
    Stocked item

    Product Dimensions


    Length
    790mm
    Cable length
    0.9m
    Width
    770mm
    Depth
    35mm

    Packaged Dimensions


    Packaged Length
    88.88cm
    Packaged Width
    85.5cm
    Packaged Weight
    8.382kg
    Packaged Volume
    83.59164l
    Packaged Height
    11cm
    Warranty: 60 Months
    Special terms or exclusions: Special terms or exclusions: 25 year limited warranty applies. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years and warrants that the electrical power will remain above 80% for 25 years.
