CAT. No. ZM9175

110W Folding Solar Panel and Charge Controller
product image thumb
product image thumb
product image thumb

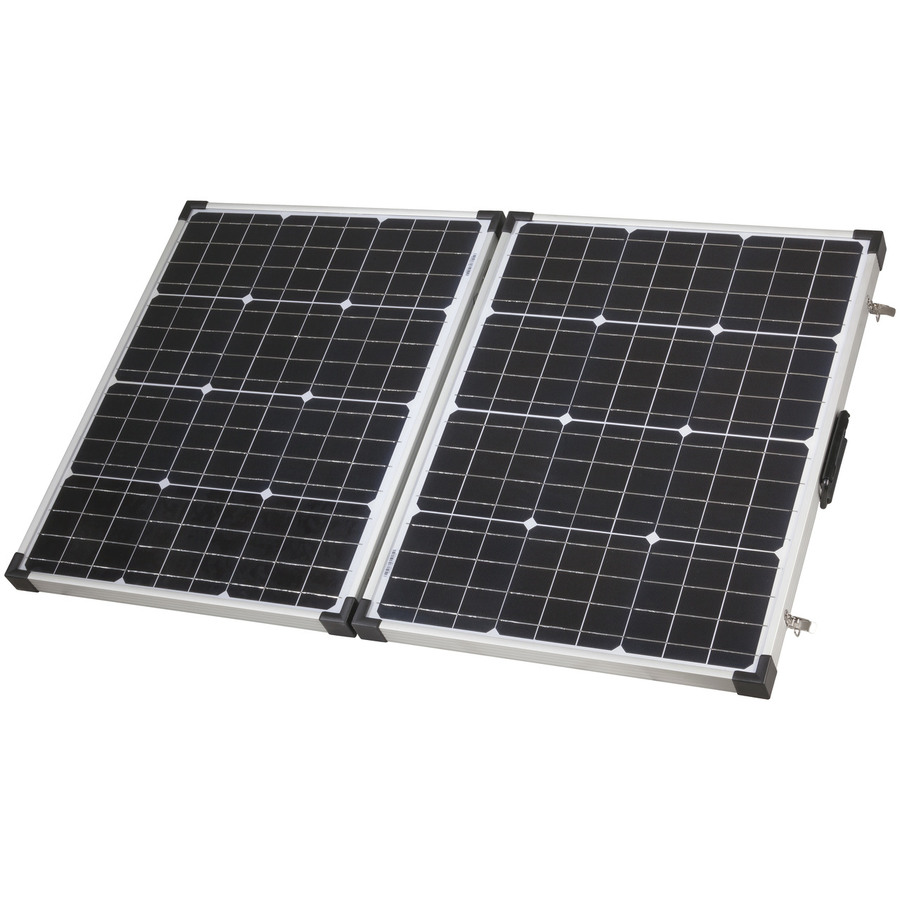

110W Folding Solar Panel and Charge Controller

$309
A convenient and portable power solution for camping and outdoor power applications made with high grade monocrystalline panels.

Out of Stock

Description

5 Year Warranty

A convenient and portable power solution for camping and outdoor power applications. This Powertech 12V Folding Solar Panel provides an extra 10W of power compared to older designs with the same size, which means you can charge your batteries more efficiently without having to lug around larger panels. This product includes two 55 Watt monocrystalline solar panels that provide excellent performance under low light environments, producing 2-3% more power and higher kWh/kW ratio compared to older monocrystalline designs. The 10A PWM solar charge controller features power status LEDs and a handy 5V 1.2A USB port to charge your phone and other USB gadgets at the campsite. Suitable for charging AGM/Lead acid, Gel, and Flooded batteries, and supplied with a 5m extension lead with Anderson connectors, extension leads (Anderson to eye terminals and Anderson to Alligator Clips), and a heavy duty bag for safe portability. Equipped with a carrying handle, durable fold out legs that allow for varying degrees of tilt, and industry standard latches, this solution will be your new best friend for on the go!

25 year limited warranty
All Powertech monocrystalline solar panels are covered by a 25 year limited warranty. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years, and warrants that the electrical output will remain above 80% of its original rated output for a period of 25 years.

Features:
- Adjustable, corrosion-resistant aluminium stand and frame
- Heavy duty handle and latches for longevity
- PWM Solar charge controller compatible with gel, sealed, and flooded batteries
- 5V 1.2A USB Port

    Specifications

    Internal or Sub-part Dimensions


    Length
    525mm, 1050mm
    Dimension details
    Folded, Unfolded
    Width
    665mm, 665mm
    Depth
    75mm, 35mm

    Solar Panel


    Current at Power Max
    6.15A
    Solar panel type
    monocrystalline
    Voltage at Power Max
    17.9V
    Cover Material
    tempered glass
    Power Connector
    Anderson Connector
    Open Circuit Voltage
    21.5V
    Short Circuit Current
    6.56A

    DC Voltage Rating


    DC Voltage
    12V

    Power Rating


    Maximum Power
    110W

    Product Dimensions


    Length
    525mm, 1050mm
    Cable length
    5m
    Width
    665mm, 665mm
    Dimension details
    Folded, Unfolded
    Depth
    75mm, 35mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    75cm
    Packaged Width
    15cm
    Packaged Weight
    12kg
    Packaged Volume
    67.5l
    Packaged Height
    60cm
    Warranty: 60 Months
