Powertech 12V 160W Folding Solar Panel with 5M Cable

$399
A convenient and portable power solution for camping and outdoor power applications made with high grade monocrystalline panels.
Available

Description

25 Year Power Output Warranty
5 Year Construction Warranty

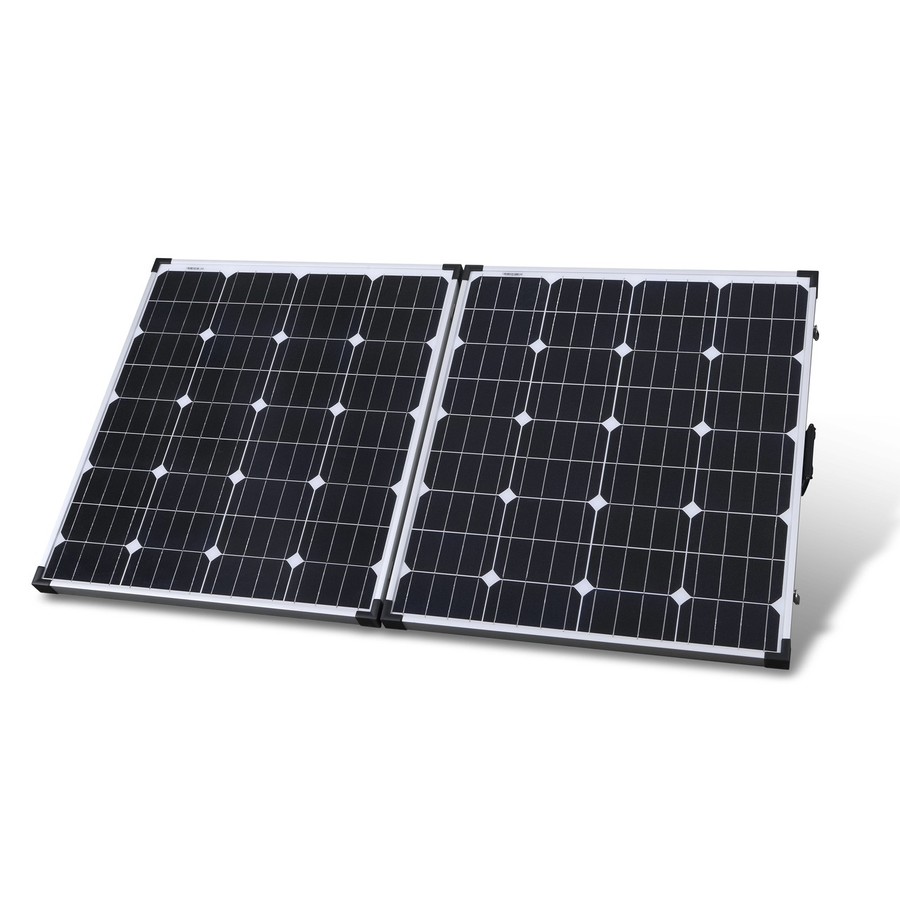

If you're hungry for power yet looking out for a portable power solution, the Powertech 12V 160W Folding Solar Panel is the answer! A comprehensive solar power system made with top grade monocrystalline solar cells, this unit will bail you from most power crisis. This product includes two 80 Watt Monocrystalline Solar Panels, one 10 Amp PWM solar Charge Controller with LED indicators for power regulation and USB port, 5m extension lead with genuine Anderson connectors, additional extension leads (Anderson to eye terminals and Anderson to Alligator Clips) for easy connections and a heavy duty bag for safe portability. If you are looking for a portable solar solution with fast and easy installation then this the perfect kit for you! Equipped with a carrying handle, durable fold out legs that allow for varying degrees of tilt and industry standard latches this is the ultimate solution!

Features:

 - Adjustable, corrosion-resistant aluminium stand and frame with heavy duty handle and latches for longevity

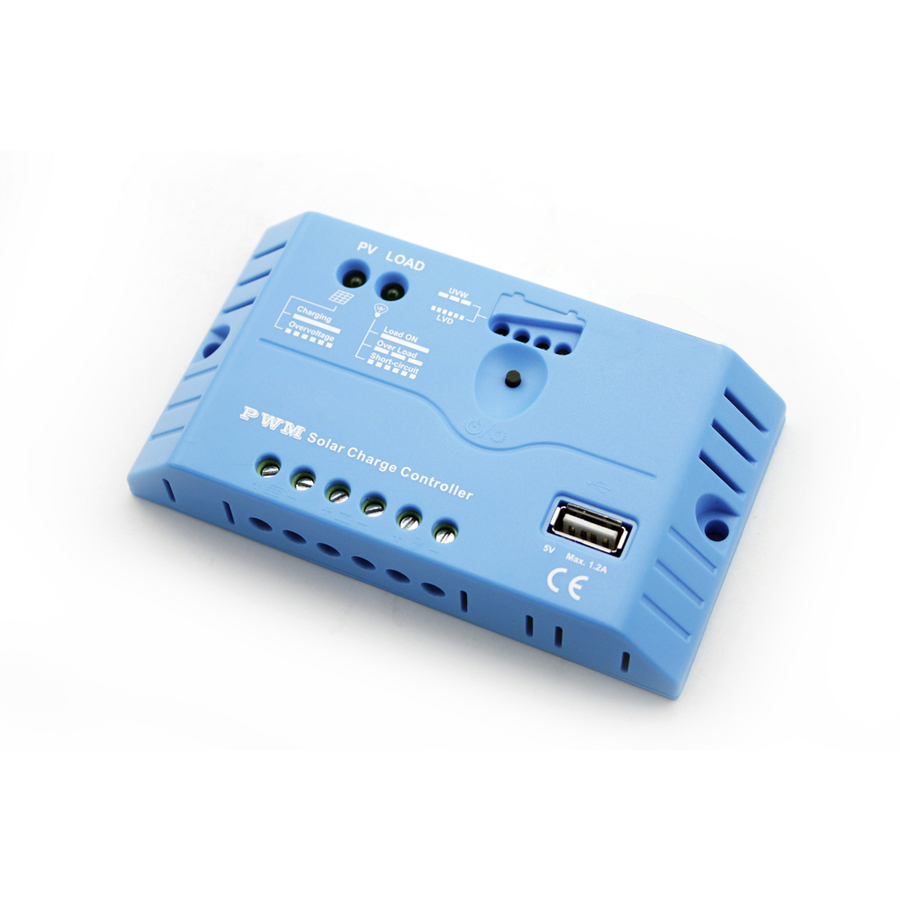

 - 12V 10A PWM Solar charge controller compatible with gel, sealed, and flooded batteries
 - Portability with Easy carry case

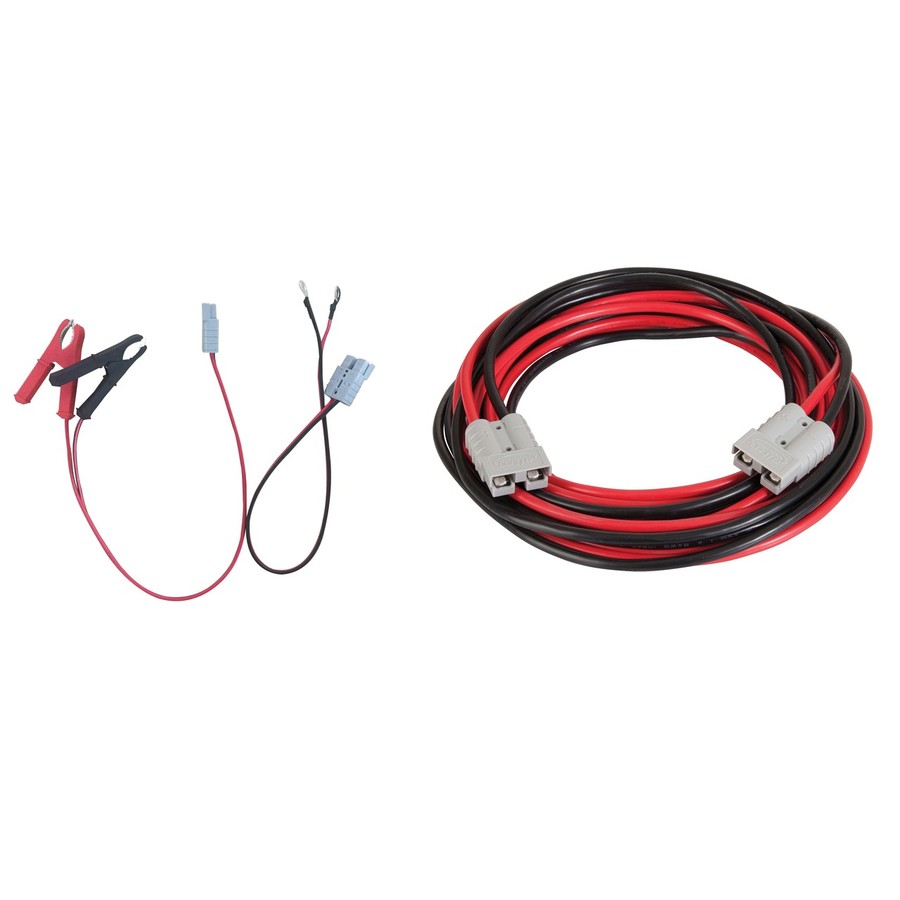

 - Excellent value with various types of Battery leads (Alligator clips, Anderson) provided
- Rated Voltage: 12V






    Specifications

    Internal or Sub-part Dimensions


    Length
    665mm
    Height
    75mm, 760mm
    Width
    760mm, 1335mm

    Product Dimensions


    Height
    75mm, 760mm
    Width
    760mm, 1335mm
    Depth
    35mm
    Weight
    15.5kg

    Solar Panel


    Current at Power Max
    8.88A
    Solar panel type
    monocrystalline
    Voltage at Power Max
    18V
    Mounting Method
    Folding Portable
    Open Circuit Voltage
    22.3V
    Short Circuit Current
    9.19A
    Mounting Material
    aluminium

    DC Voltage Rating


    DC Voltage
    12V

    Power Rating


    Maximum Power
    160W

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    85cm
    Packaged Width
    15cm
    Packaged Weight
    16kg
    Packaged Volume
    98.175l
    Packaged Height
    77cm
    Warranty: 60 Months
    Special terms or exclusions: 25 year limited warranty applies. This warranty covers the panels for defects in construction and manufacturing for a period of 5 years and warrants that the electrical power will remain above 80% for 25 years.
