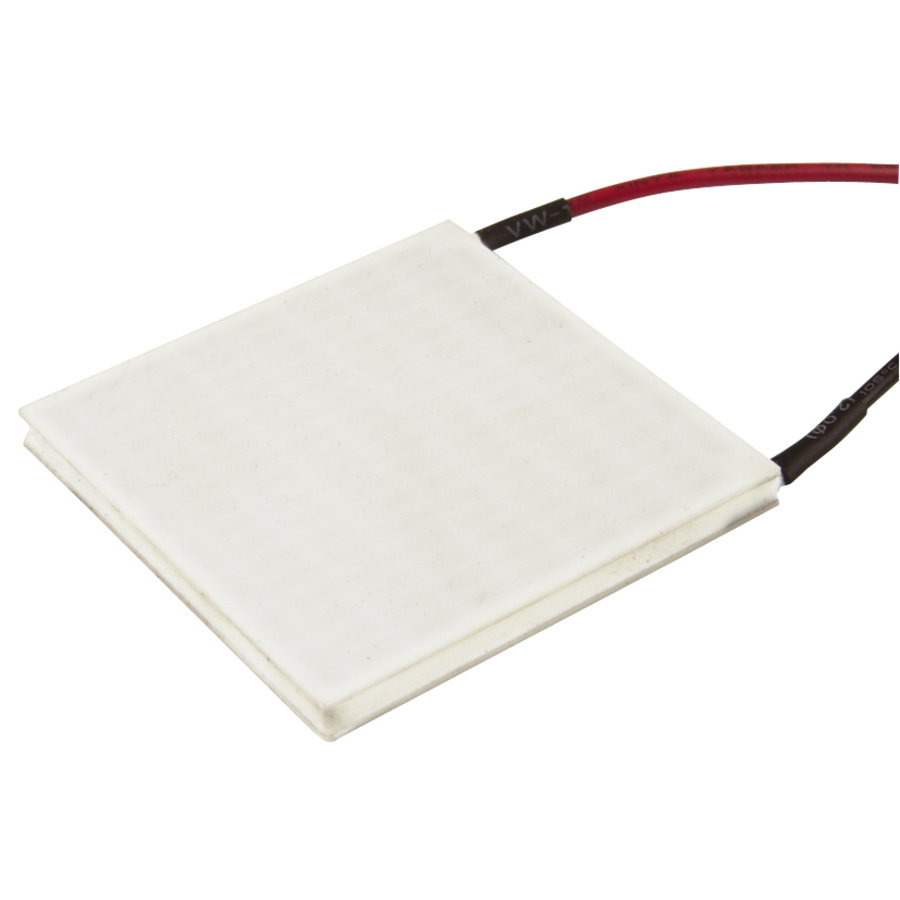

Thermoelectric (Peltier) Module 51W6A
Thermoelectric (Peltier) Module 51W6A

CAT. No. ZP9102

Thermoelectric (Peltier) Module 51W6A
product image thumb

Thermoelectric (Peltier) Module 51W6A

$24.95
A thermoelectric module is a solid state device which can operate as a heat pump to transfer heat utilising the Peltier effect.

Out of Stock

Description

A thermoelectric module is a solid state device which can operate as a heat pump to transfer heat utilising the Peltier effect. Suitable for cooling or heating applications up to 100 degrees C.



    Specifications

    Product Dimensions

    Length
    		 40mm
    Width
    		 40mm

    Packaged Dimensions

    Packaged Length
    		 16.6cm
    Packaged Width
    		 8.2cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.40836l
    Packaged Height
    		 3cm

    Peltier Modules

    Maximum Cooling Power (Qmax)
    		 51.4W
    Optimum Input Current (Imax) (Th=27°C)
    		 6A
    Temperature Differential (DT) (Th=27°C)
    		 68
    Optimum Input Voltage (Vmax) (Th=27°C)
    		 15V

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZP9102-dataSheetMain.pdf
