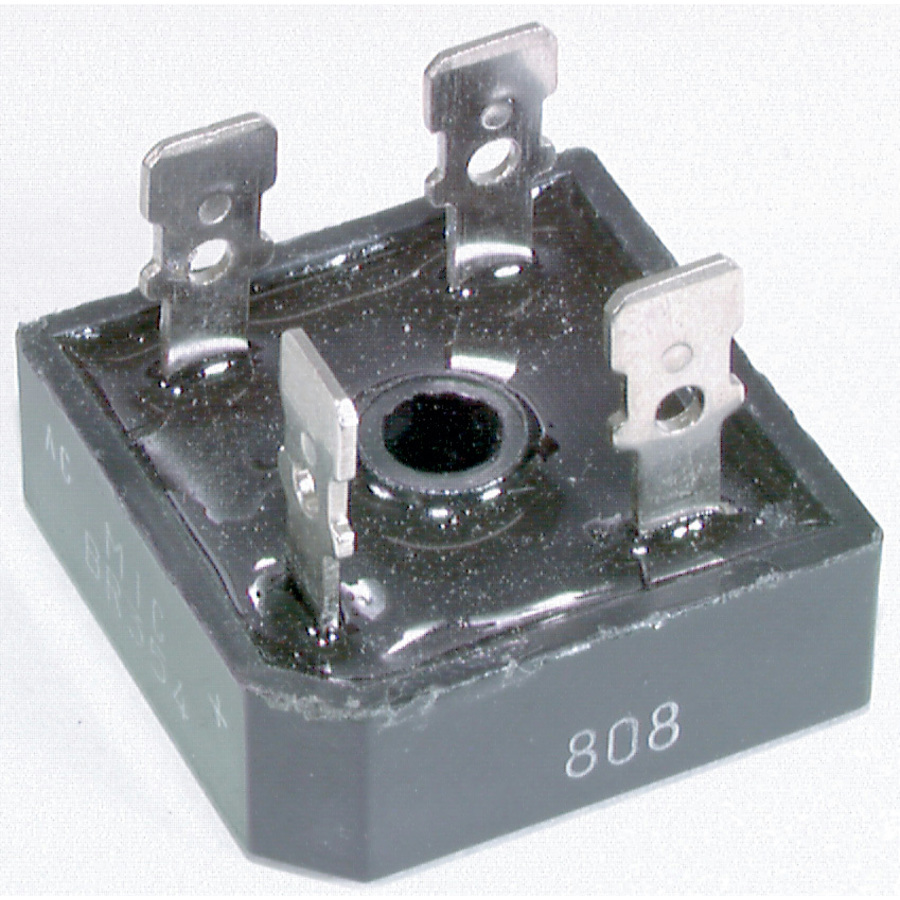

400V 35A Bridge Rectifier
400V 35A Bridge Rectifier

CAT. No. ZR1324

400V 35A Bridge Rectifier
product image thumb

400V 35A Bridge Rectifier

$7.95
From our range of components and electromechanical semiconductors to suit your circuit.
Available

Description

· Low Reverse Leakage Current

· High Conductivity Metal Case

· Any Mounting Position

· Surge Rating Of 400 Amps

· Operating Temperature: -55°C to +150°C


    Specifications

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 2.7cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.016767l
    Packaged Height
    		 2.3cm

    Active Diode

    Diode Composition
    		 Silicon
    Diode Type
    		 Bridge rectifier
    Diode forward voltage drop
    		 1.2V
    Diode maximum current
    		 35A
    Diode reverse breakdown electrical potential difference in volts
    		 2500V
    Maximum Forward Voltage
    		 400V
    Diode package
    		 bridge rectifier (vertical or horizontal round or square)

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZR1324-dataSheetMain.pdf
