TIP3055 NPN Transistor
TIP3055 NPN Transistor

CAT. No. ZT2278

TIP3055 NPN Transistor

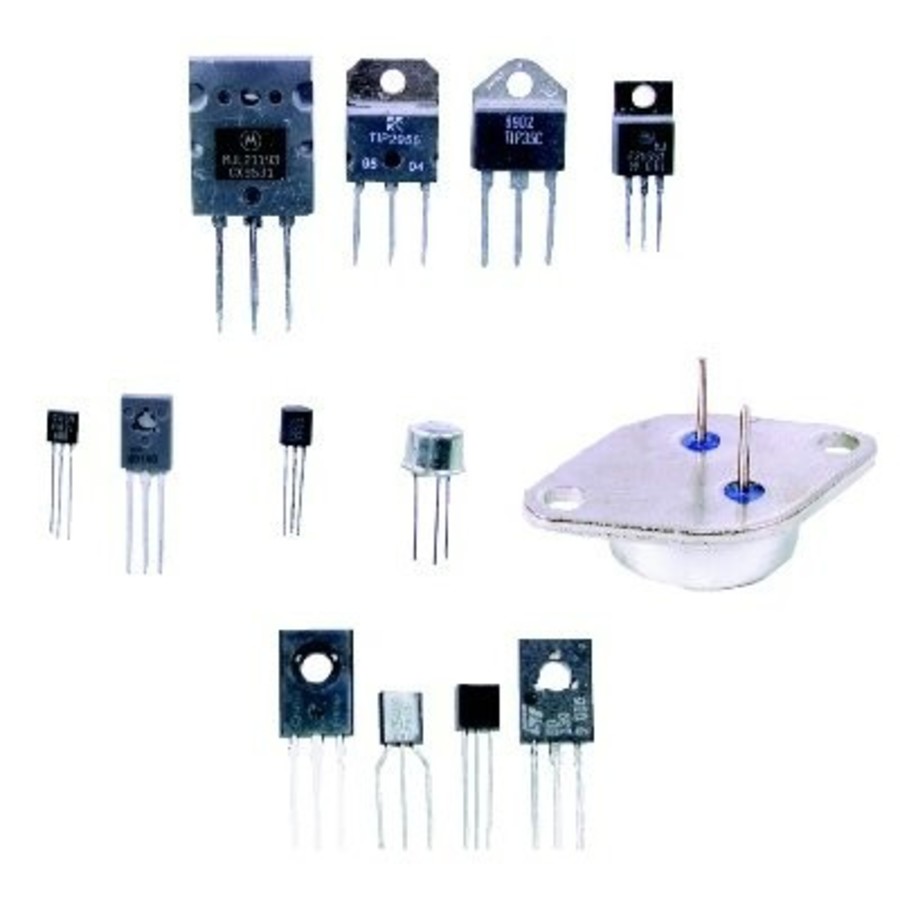

product image thumb

TIP3055 NPN Transistor

$4.95
Silicon TypeType Mat Case Diss Vcb Ic Hfe Hfe @25C BiasTIP3055 NPN SOT- 93 90W 60V 15A 20/70 4A...
Available

Description

Silicon Type Black Case Diss Vcb Ic Hfe Hfe @25C Bias
TIP3055 NPN SOT- 93 90W 60V 15A 20/70 4A

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.002625l
    Packaged Height
    		 0.5cm

    Active Transistors

    Type of Transformer
    		 BJT
    Transistor Maximum Power
    		 90W
    Power Dissipation at 25°C
    		 90W
    Transistor Application
    		 switching
    Transistor Package
    		 TO-220
    Transistor Polarity
    		 NPN
    Ic
    		 15A
    hFE min/max @ Ic Cont
    		 20/70
    vC
    		 100V

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    component package
    		 square pack
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZT2278-dataSheetMain.pdf
