CAT. No. ZT2283

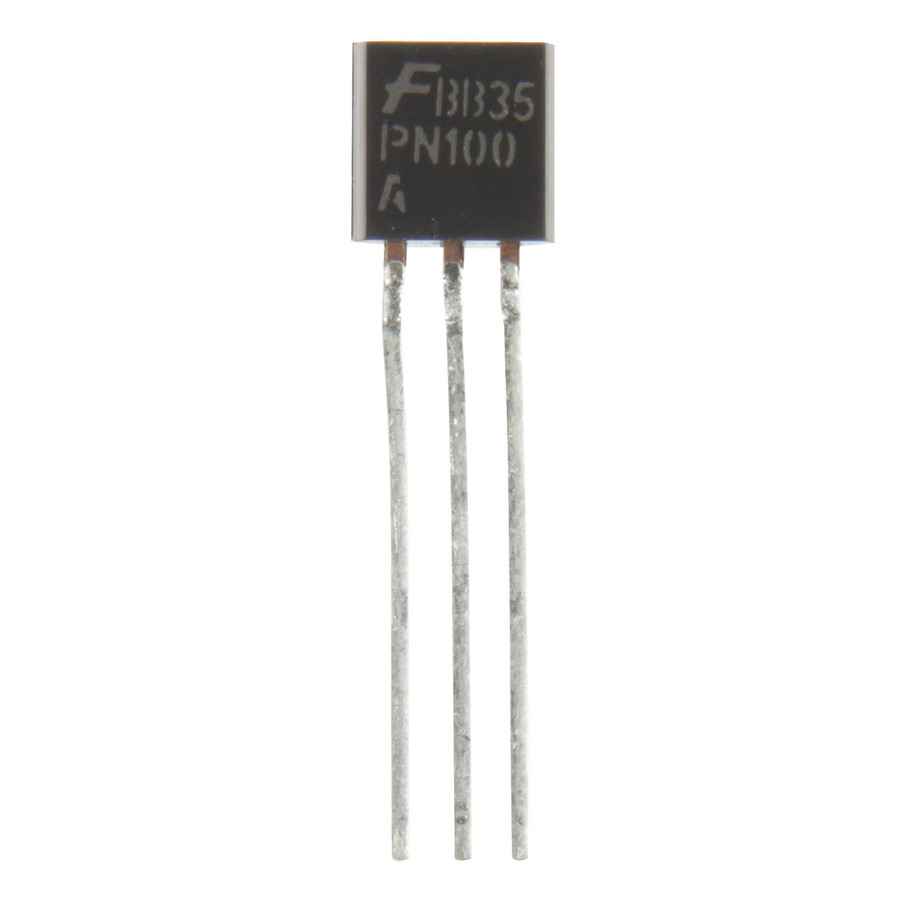

PN100 NPN Multi-replacement Transistor
$0.7
PN100 NPN Multi-replacement Transistor
Available
Description
Two transistors which will replace a multitude of common hard to get devices. TO-92 package.
NPN general purpose medium power amp and switch with continuous collector current up to 500mA. PN100 replaces PN2221, PN2222, PN2222A, PN3565, PN3568, PN3569, PN3643, PN5133, 2N2219A, 2N2222A, 2N3414, 2N3415, 2N3416, 2N3417, 2N3700, 2N3704, 2N3904, 2N4123, 2N4124, 2N4401, 2N5088 and 2N5210.
