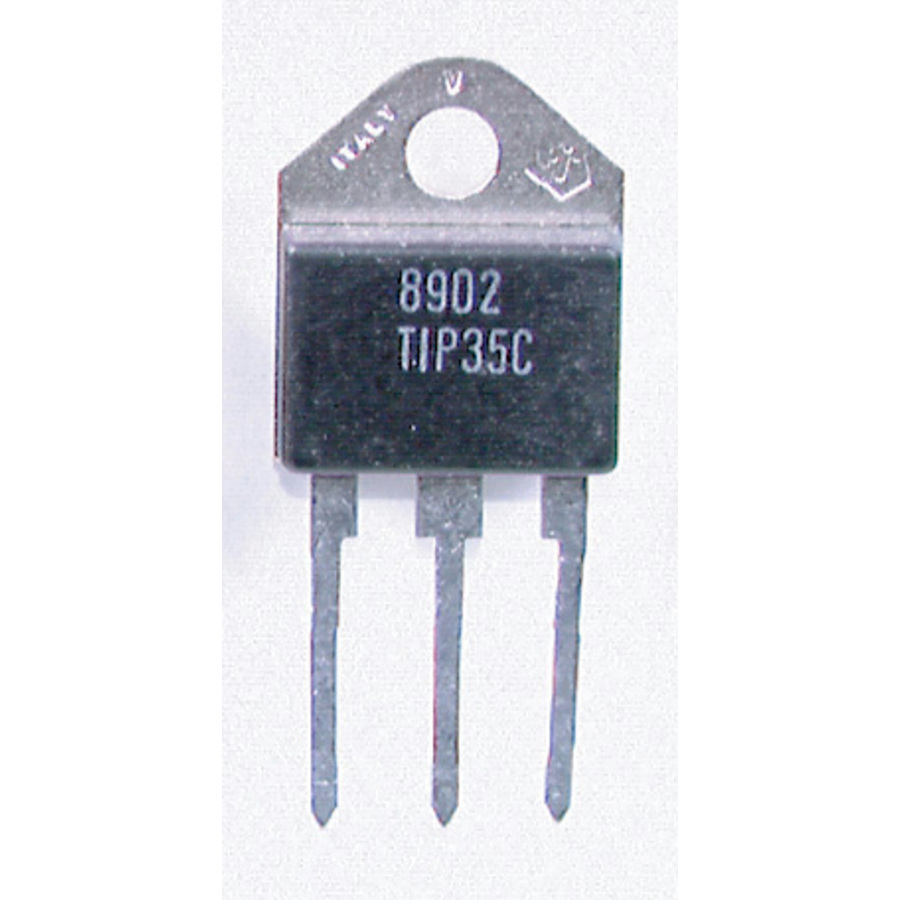

TIP35C NPN Transistor
TIP35C NPN Transistor

CAT. No. ZT2293

TIP35C NPN Transistor
product image thumb

TIP35C NPN Transistor

$5.95
Silicon Type Matt black Case Diss Vcb Ic Hfe Hfe @25C BiasTIP35C NPN TO218 125W 100V 25A 15/75 15A...

Out of Stock

Description

Silicon Type Matt black Case

    Specifications

    Packaged Dimensions

    Packaged Length
    		 3.5cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00263l
    Packaged Height
    		 0.5cm

    Active Transistors

    Type of Transformer
    		 BJT
    Transistor Maximum Power
    		 125W
    Power Dissipation at 25°C
    		 125mW
    Transistor Application
    		 switching
    Transistor Package
    		 TO-218
    Transistor Polarity
    		 NPN
    Ic
    		 25A
    hFE min/max @ Ic Cont
    		 15/75
    vC
    		 100V

    Active Component

    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    component package
    		 square pack
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ZT2293-dataSheetMain.pdf
