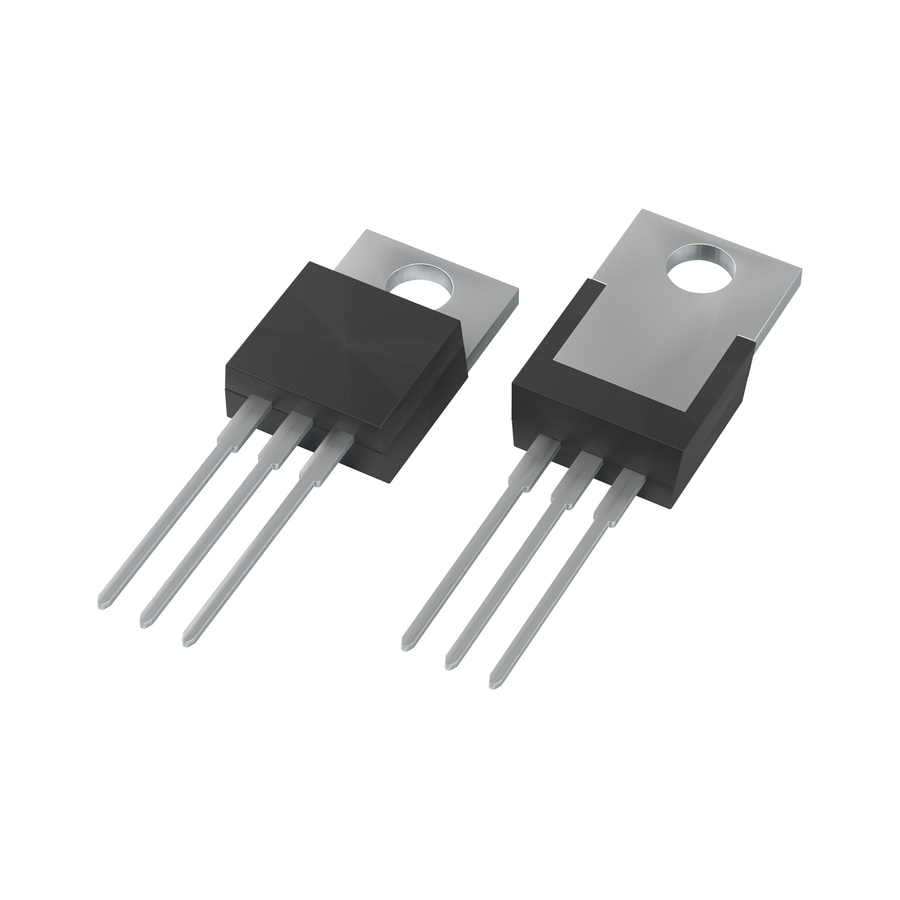

7805 +5V 1A Voltage Regulator TO-220 case

CAT. No. ZV1505

7805 +5V 1A Voltage Regulator TO-220 case

$1.95

From our range of components and electromechanical semiconductors to suit your circuit.

Available

Description

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.

TYPE: 7805/LM340T5

VOUT: +5V

IOUT: 1A

CASE: TO-220

Specifications

Packaged Dimensions

Packaged Length	1cm
Packaged Width	0.5cm
Packaged Weight	0.002kg
Packaged Volume	0.0015l
Packaged Height	3cm

Active voltage regulator

Regulator maximum current	1A
Voltage drop	2.50000000
Regulator polarity	Positive
Regulator package	TO-220
Regulator input voltage	7.5V
Regulator output voltage	5V
Regulator type	positive

Active Component

Active marking code type	Printed
Active mount type	Through Hole
Active number of legs	3 count
max temperature	125Â°C
component package	square pack
Active case colour	black
Active connector type	Solder Legs
