7809 +9V 1A Voltage Regulator
7809 +9V 1A Voltage Regulator

CAT. No. ZV1509

7809 +9V 1A Voltage Regulator
product image thumb

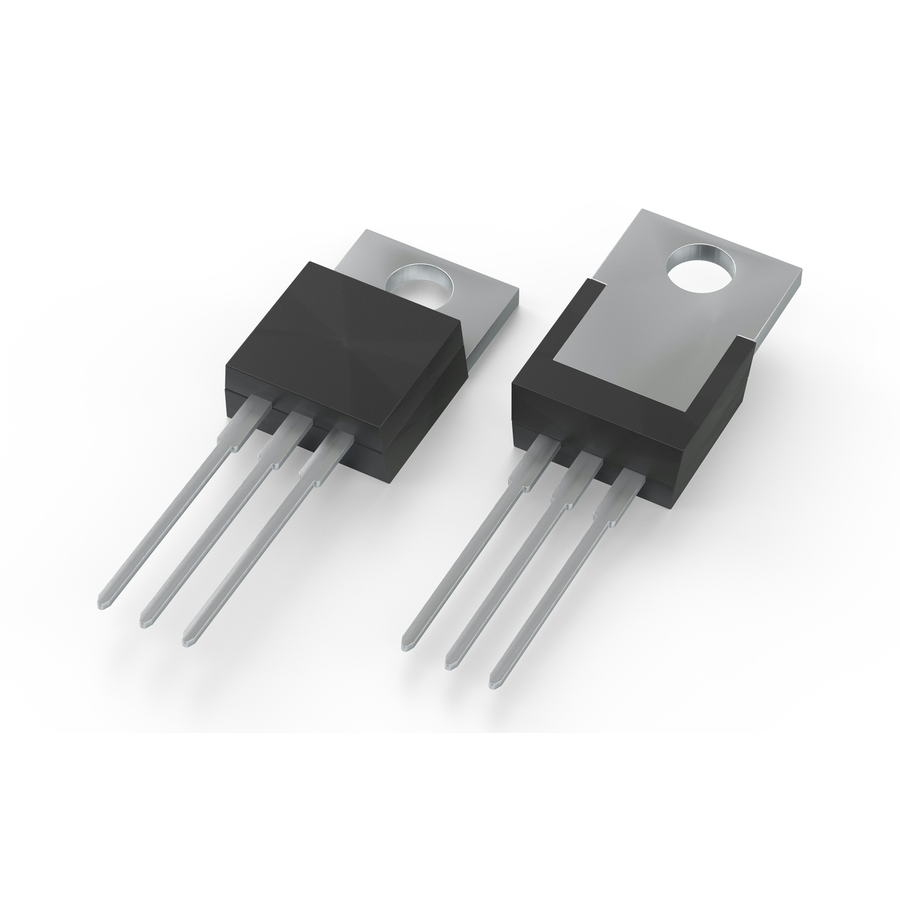

7809 +9V 1A Voltage Regulator

$1.95
Type Volt Amp Case7809/LM340T9 +9V fixed 1A TO-220...
Available

Description

A voltage regulator is an electronic circuit that provides a stable DC voltage independent of the load current, temperature and AC line voltage variations. A voltage regulator may use a simple feed-forward design or may include negative feedback.

TYPE: 780/LM340T9

VOUT: +9V

IOUT: 1A

CASE: TO-220


    Specifications

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.0015l
    Packaged Height
    		 0.5cm

    Active voltage regulator

    Regulator maximum current
    		 1A
    Voltage drop
    		 2.5V min
    Regulator polarity
    		 Positive
    Regulator package
    		 TO-220
    Regulator input voltage
    		 11.5V
    Regulator output voltage
    		 9V

    Active Component

    Active marking code type
    		 Printed
    Active mount type
    		 Through Hole
    Active number of legs
    		 3 count
    max temperature
    		 70°C
    component package
    		 square pack
    Active case colour
    		 black
    Active connector type
    		 Solder Legs
