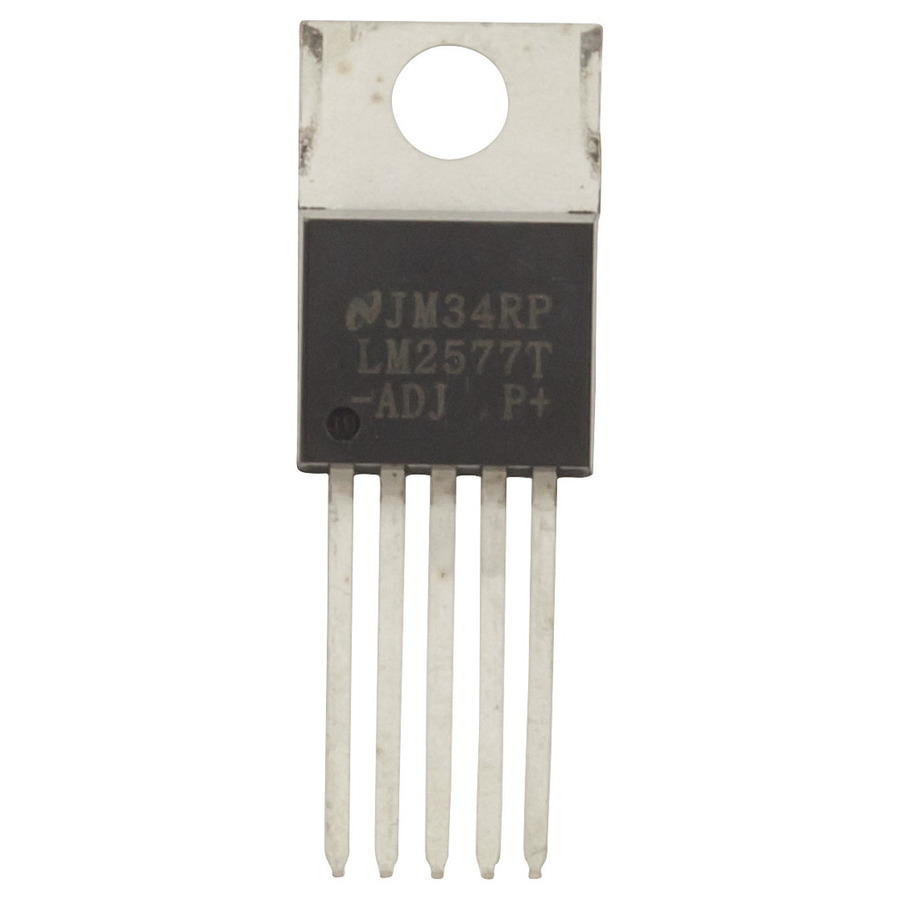

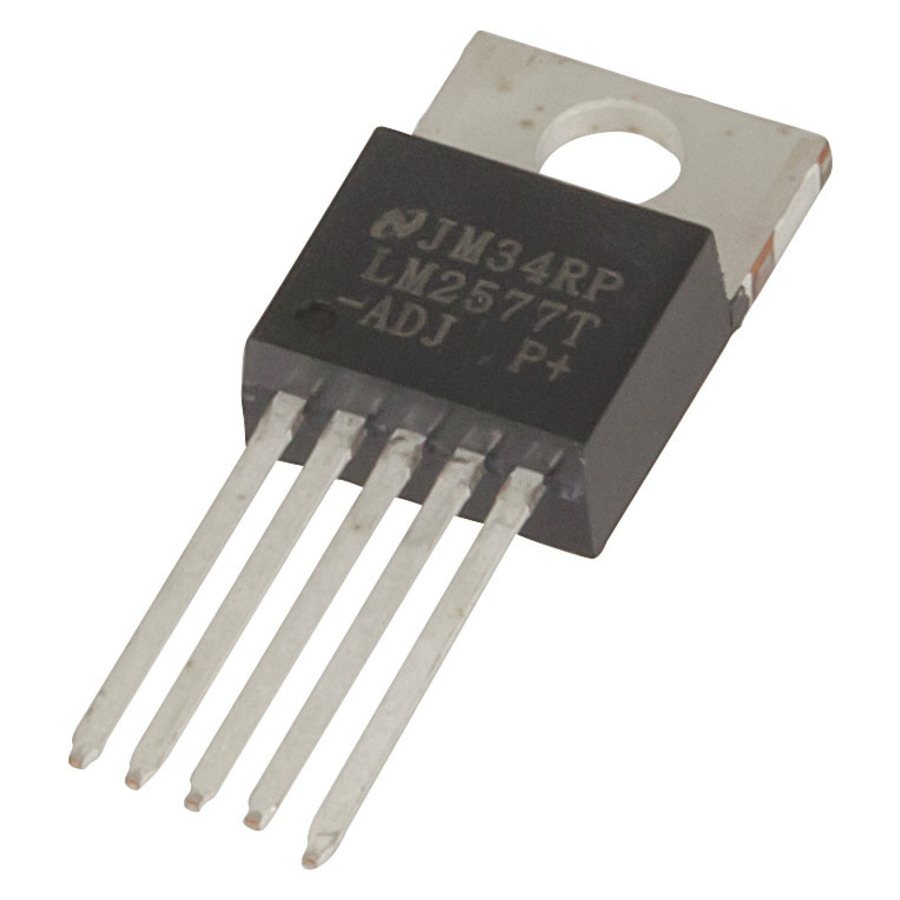

LM2577 Boost Regulator IC

$5.95
Step up Voltage Regulator LM2577-ADJ

Out of Stock

Description

Adjustable version of ZV1642 (12V fixed) switchmode boost regulator in 5-pin TO-220 package. Can output up to 50V from 3.5V to 40V input (maximum theoretical voltage gain is x10). A small number of external components are needed for operation (see datasheet).


    Specifications

    Active voltage regulator

    Regulator maximum current
    		 3A
    Regulator polarity
    		 Positive
    Regulator package
    		 TO-220
    Regulator output voltage
    		 3.5V-50V
    Regulator type
    		 LM2577-ADJ

    Active Component

    Active mount type
    		 Through Hole
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.003l
    Packaged Height
    		 1cm
